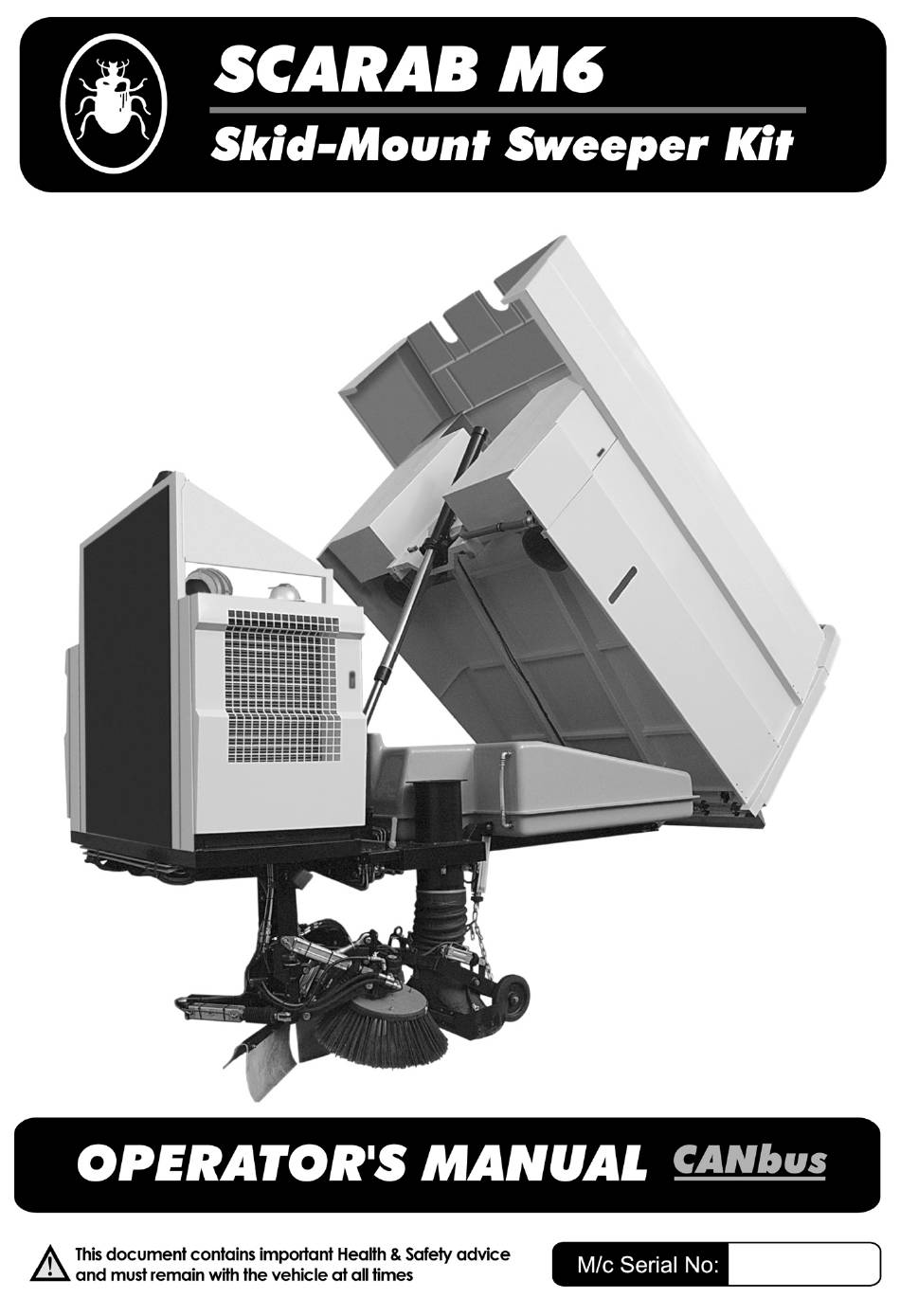

Scarab M6 Operator's Manual

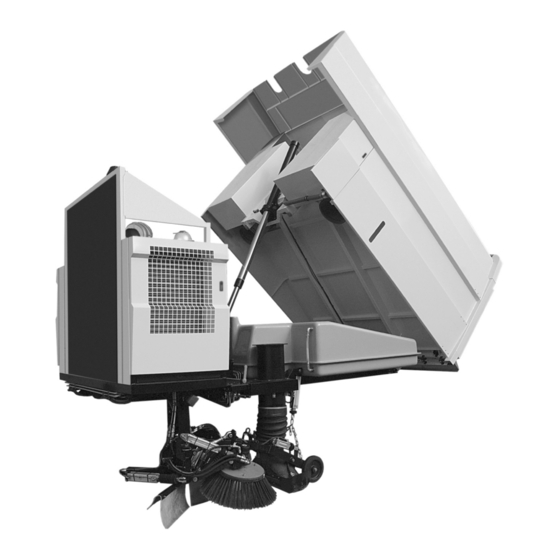

Skid-mount sweeper kit
Hide thumbs Also See for M6:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M6 and is the answer not in the manual?

Questions and answers

Related Manuals for Scarab M6

Summary of Contents for Scarab M6

  • Page 2 MAIN FEATURES OF A TYPICAL SCARAB M6 AUXILIARY ENGINE HOUSING HYDRAULIC TANK EQUIPMENT LOCKER ELECTRONICS & PNEUMATICS LOCKER AUXILIARY ENGINE FUEL TANK L-P WATER PUMP WATER TANK & SOLENOID VALVES CHASSIS MOUNTING BRACKETS RIGHT HAND SUCTION NOZZLE RIGHT HAND WIDE SWEEP BRUSH...
  • Page 3 Original Issue .....Sept. 2008 Amdt.1 ........ Oct. 2009 This manual is published by the Technical Publications Department of Scarab Sweepers Limited and every effort is made to ensure that the information it contains is correct at the time of publication. Due to a policy of continuous development, however, the Company reserves the right to alter the specification and to supply when so altered without reference to illustrations and descriptions in this manual.

  • Page 4: General Information

    All M6 sweepers have a four-digit number. LIMITATIONS OF USE The Scarab M6l is classified as a heavy-duty suction road sweeper skid unit and, as such, is intended only for operation in the sweeping and associated roles for which it has been expressly designed.

  • Page 5: Table Of Contents

    Suction Nozzle Clearances..................25 Side Brushes & Skirts ....................25 Manual Greasing ..................... 26 Recommended Lubricants & Consumables ............27 Other Fluid Levels..................... 27 ABOUT THE M6 HYDRAULIC DRIVE SYSTEM ..............28 LEGIONELLA STATEMENT....................29 Operator’s Manual Amdt.1 - 03 November 2009...

  • Page 6: Health And Safety Advice

    SCARAB M6 SWEEPER KIT HEALTH & SAFETY ADVICE THIS OPERATORS MANUAL CONTAINS ESSENTIAL INFORMATION AND MUST REMAIN WITH THE VEHICLE AT ALL TIMES. IN THE INTERESTS OF YOUR HEALTH AND SAFETY, IT IS IMPORTANT THAT THE FOLLOWING POINTS ARE OBSERVED AT ALL TIMES: •...

  • Page 7: Switch Symbols

    SCARAB M6 SWEEPER KIT SWITCH OPERATING SYMBOLS MAIN SWEEPING PANEL SWITCHES FROM LEFT TO RIGHT & TOP TO BOTTOM PANEL STANDBY MODE / SWEEP MODE WARNING BEACONS / LIGHT BAR - ON/OFF HEATERS - AUXILIARY ENGINE AUXILIARY ENGINE START AUXILIARY ENGINE STOP...

  • Page 8: Lcd Screen Information

    OPERATING ADVICE Please remember, the information provided in this handbook is designed to ensure that the Scarab sweeper operates both safely and efficiently. A poorly maintained machine will become unreliable, inefficient and potentially dangerous. Always observe the recommended maintenance and safety related advice provided.

  • Page 9: Description Of Sweeping Controls

    SCARAB M6 SWEEPER KIT DESCRIPTION OF SWEEPING CONTROLS LIQUID CRYSTAL DISPLAY (LCD SCREEN) AMBIENT LIGHT AUXILIARY ENGINE STOP SENSOR AUXILIARY ENGINE START BEACONS PANEL ON/STAND-BY When in Sweep Mode: UPPER LINE = ENGINE SPEED LOWER LINE = WATER TEMPERATURE / WARNINGS...

  • Page 10: Main Panel Switch Descriptions

    SCARAB M6 SWEEPER KIT Firstly they are colour coded as follows: ORANGE Electrical functions such as lighting. Critical functions (e.g. Auxiliary Engine). PALE GREEN = Sweeping functions. BLUE Water Spray functions. Secondly, switches that control functions that are available on both sides of the machine, e.g.
  • Page 11 SCARAB M6 SWEEPER KIT LIQUID CRYSTAL DISPLAY (LCD SCREEN) AMBIENT LIGHT AUXILIARY ENGINE STOP SENSOR AUXILIARY ENGINE START BEACONS PANEL ON/STAND-BY When in Sweep Mode: UPPER LINE = ENGINE SPEED LOWER LINE = WATER TEMPERATURE / WARNINGS SUCTION FAN MANUAL...
  • Page 12 Water spray will not function unless the Sweep Master switch is activated. When the M6 is equipped with dual side brushes, a swivelling widesweep brush is fitted to enable it to sweep with the selected side brush. Consequently, when the offside brush is selected while the nearside brush is active, the nearside brush and suction nozzle will be automatically cancelled, stopping and rising to their respective stowage positions.
  • Page 13 SCARAB M6 SWEEPER KIT LIQUID CRYSTAL DISPLAY AMBIENT LIGHT AUXILIARY ENGINE STOP (LCD SCREEN) SENSOR AUXILIARY ENGINE START BEACONS PANEL ON/STAND-BY When in Sweep Mode: UPPER LINE = ENGINE SPEED LOWER LINE = WATER TEMPERATURE / WARNINGS SUCTION FAN MANUAL...
  • Page 14 SCARAB M6 SWEEPER KIT SIDE BRUSH SWING IN/OUT SWITCH - Press to swing brushes OUT. Press again to swing brushes IN. The red LED illuminates while the brushes are in the swung OUT position. NOZZLE TILT SWITCH (MOMENTARY MODE) - Press and hold to tilt the suction nozzle for larger items, such as bottles.

  • Page 15: Additional Controls & Instruments

    SCARAB M6 SWEEPER KIT HIGH-PRESSURE WATER PUMP SWITCH - Press to start the H-P water pump. The red LED will illuminate when the feature is selected. The switch becomes disabled (symbol not illuminated) and the pump will not operate if the water level in the tank is insufficient.

  • Page 16: Activating The Control Panel

    SCARAB M6 SWEEPER KIT 1. Press the PRE-HEATERS switch. After a brief delay the red LED will illuminate briefly accompanied by and audible ‘beep’ to denote that the heating cycle is complete. 2. Press and hold the engine START switch until the engine starts. As soon as the engine is at IDLE speed (approx.
  • Page 17 SCARAB M6 SWEEPER KIT 1. Press the Sweep Master switch OFF to stop and raise all active sweep gear. The Sweep Master LED will extinguish. 2. Press the panel ON/STAND-BY switch to turn off the control panel. This will allow the auxiliary engine to revert to IDLE.

  • Page 18: Discharging The Hopper (Tipping)

    SCARAB M6 SWEEPER KIT HOPPER DISCHARGING PROCEDURE (TIPPING) The hopper and rear door control levers are sited externally on the sweeper sub-frame adjacent to the nearside suction nozzle. BEFORE OPERATING THE DOOR OR HOPPER ENSURE THAT ALL PERSONNEL ARE CLEAR OF THE IMMEDIATE AREA.

  • Page 19: Using The Auxiliary Hydraulic Pump

    SCARAB M6 SWEEPER KIT DOOR CLOSE INDICATOR HOPPER PROP LEVER ARRANGEMENT ON LEFT HAND SIDE OF VEHICLE PUSH IN TO OPEN DUMP VALVE MANUAL PULL OUT TO OPEN CONTROL DUMP VALVE MANUAL CONTROL HOPPER PROP LEVER DOOR OPEN (PUSH LEVER INWARDS)

  • Page 20: The Rear-Mounted Wander Boom

    SCARAB M6 SWEEPER KIT USING THE REAR-MOUNTED WANDER BOOM The rear-mounted wander boom arrangement is permanently fitted and, when required, can be used while sweeping. The weight of the hose/ nozzle is supported by a gas strut attached to the boom assembly. The system incorporates a manually operated blanking flap.

  • Page 21: Using The Low-Pressure Water Pump

    SCARAB M6 SWEEPER KIT USING THE LOW-PRESSURE WATER PUMP Unless the ground is wet, always use the dust suppression sprays. Before using the dust suppression system, ensure that there is sufficient water in the water tank. Select the water spray configuration you require, according to the intended sweep pattern.

  • Page 22: Using The Optional High-Pressure Water Pump

    SCARAB M6 SWEEPER KIT USING THE OPTIONAL HIGH-PRESSURE WATER PUMP HIGH PRESSURE WATER CAN BE HAZARDOUS, ALWAYS WEAR GOGGLES OR SUITABLE EYE PROTECTION WHEN OPERATING WITH HIGH PRESSURE WATER. EXERCISE EXTREME CARE WHEN USING THE LANCE, DO NOT DIRECT THE JET AT OTHER PEOPLE.

  • Page 23: Draining

    SCARAB M6 SWEEPER KIT OIL LEVEL 1. The level of the oil in the pump’s crankcase should be checked on a regular basis (See “RECOMMENDED OPERATOR’S ROUTINE MAINTENANCE” on page 21.)and topped up as necessary via the combined filler cap/dipstick on the top of the pump body (Fig. 8).

  • Page 24: Recommended Operator's Routine Maintenance

    RECOMMENDED OPERATOR’S ROUTINE MAINTENANCE It is important that the following routine maintenance procedures are carried out as directed. This will help to ensure that your Scarab Sweeper performs at the optimum level of safety and efficiency. Refer to the paragraphs immediately following this schedule and to the Table of Contents (Page 2) for more detailed information.
  • Page 25 Detailed instructions covering the servicing of your Scarab sweeper are published in the Scarab M6 Workshop Manual. The fitting of genuine Scarab parts is highly recommended. Use of alternatives can compromise performance / reliability and could invalidate your warranty. For chassis/auxiliary engine servicing and maintenance, refer to the relevant manufacturer’s information or consult the appropriate agent or dealer.

  • Page 26: Key Maintenance Procedures

    SCARAB M6 SWEEPER KIT KEY MAINTENANCE PROCEDURES AUXILIARY ENGINE The operator’s responsibility for the auxiliary power unit is the same as for any other engine, including the chassis manufacturer’s unit. The following instructions should be followed as detailed in the maintenance schedule on Page 21 and in the manufacturer’s recommendations.

  • Page 27: Cleaning The Suction Fan & Screens

    SCARAB M6 SWEEPER KIT CLEANING THE SUCTION FAN AND SCREENS 1. BEFORE WORKING ON THE MACHINE POSITION IT ON FIRM, LEVEL GROUND, APPLY HANDBRAKE AND, IF REQUIRED, RAISE THE HOPPER, STOP ENGINE & REMOVE IGNITION KEY. 2. ALWAYS USE THE HOPPER PROP TO SUPPORT A RAISED HOPPER.

  • Page 28: Suction Nozzle Clearances

    SCARAB M6 SWEEPER KIT SUCTION NOZZLE CLEARANCES Inspect the suction nozzle flaps to verify that they are in good condition and do not show excessive wear. Adjust as necessary to achieve the correct flap to ground clearances (Refer to Fig. 11).

  • Page 29: Manual Greasing

    SCARAB M6 SWEEPER KIT MANUAL GREASING & LUBRICATION Carry out manual greasing and lubrication in accordance with the maintenance schedule on Page 21 and by referring to Fig. 13 Side Brush Assemblies Auxiliary Engine Oil Hopper Ram (Viewed from Above) Suction Nozzle Assembly Hopper Body &...

  • Page 30: Recommended Lubricants & Consumables

    SCARAB M6 SWEEPER KIT RECOMMENDED LUBRICANTS AND CONSUMABLE PARTS DESCRIPTION SPECIFICATION QUANT SCARAB PART Hydraulic Oil Derwent 32 5 litres 005005 Multi-purpose grease (Grease Points) Super Lithium 2 400 g 005007 Motor Oil 15W/50 5 litres 005001 Pneumatic Lubricant Scarab approved...

  • Page 31: About The M6 Hydraulic Drive System

    SCARAB M6 SWEEPER KIT ABOUT THE M6’S HYDRAULIC DRIVE SYSTEM Ensure that the oil cooler is kept clean. If the hydraulic oil is allowed to exceed its maximum working temperature a warning buzzer will sound in the cab and a warning will flash up on the control panel.

  • Page 32: Legionella Statement

    • Direct sunlight. RECOMMENDATIONS The water dust-suppression system used on all Scarab sweepers is of a TOTAL LOSS type i.e. there is no re-cycled water stored on the vehicle. Provided that the water tank is replenished regularly with mains water, the...
  • Page 33 SCARAB M6 SWEEPER KIT OPERATOR’S NOTES Operator’s Manual Amdt.1 Issue - 03 November 2009...
  • Page 34 SCARAB M6 SWEEPER KIT OPERATOR’S NOTES Operator’s Manual Amdt.1 - 03 November 2009...
  • Page 36 Scarab Sweepers Limited Pattenden Lane, Marden, Kent TN12 9QD Telephone: 01622 831006 Fax: 01622 832417 International: +44 (0)1622 831006 International +44 (0)1622 832417 e-mail: scarab@scarab-sweepers.com Web site: www.scarab-sweepers.com Publication Z035867 © Scarab Sweepers Limited 2009...
