REAR-MOUNTED/OVERHEAD WANDER BOOMS

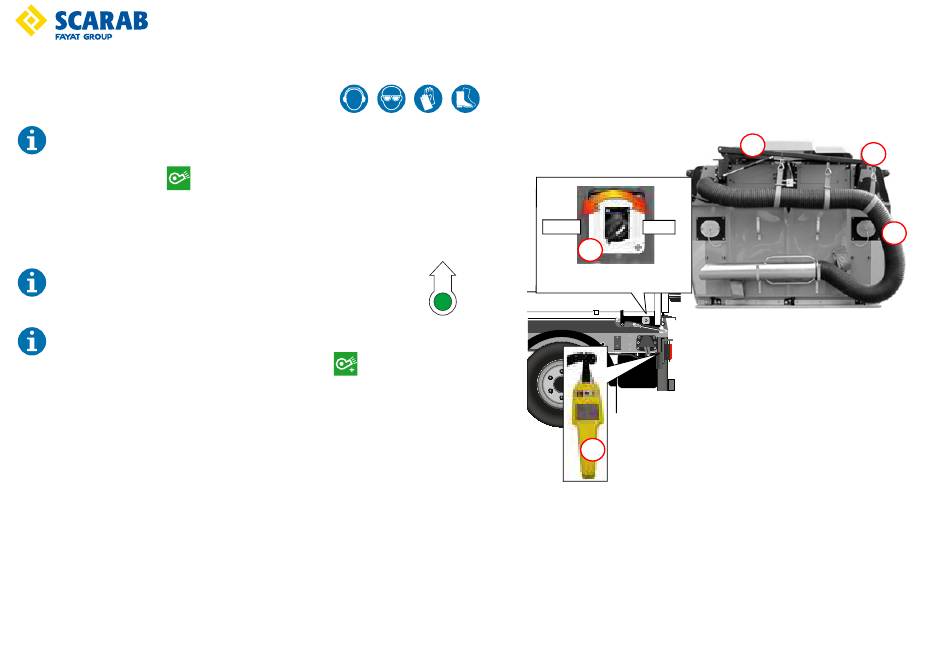

Using the rear mounted wander hose

Vehicle in hydrostatic drive. Drive control lever in neutral. Handbrake On.
Multi-function lever ON.
1. Suction Fan ON.
2. Unhook the wander hose boom
3. Demount the hose assembly
assembly to the required position.
4. Turn the wander hose control
If water suppression is required place the multi function lever
in the ON position.
On vehicles equipped with pneumatic assist, use the UP/Down controller
(always mounted on the drive side) to unhook the wander hose.
For maximum suction power, select fan boost.
Part No. SCAZ038022 2.4.1
(1) from its stowed position (2).
(3) from its stowage and swing-out the entire
(4) ON (always mounted on the drive side).
