SCARAB MISTRAL - Abbreviated Operating Instructions

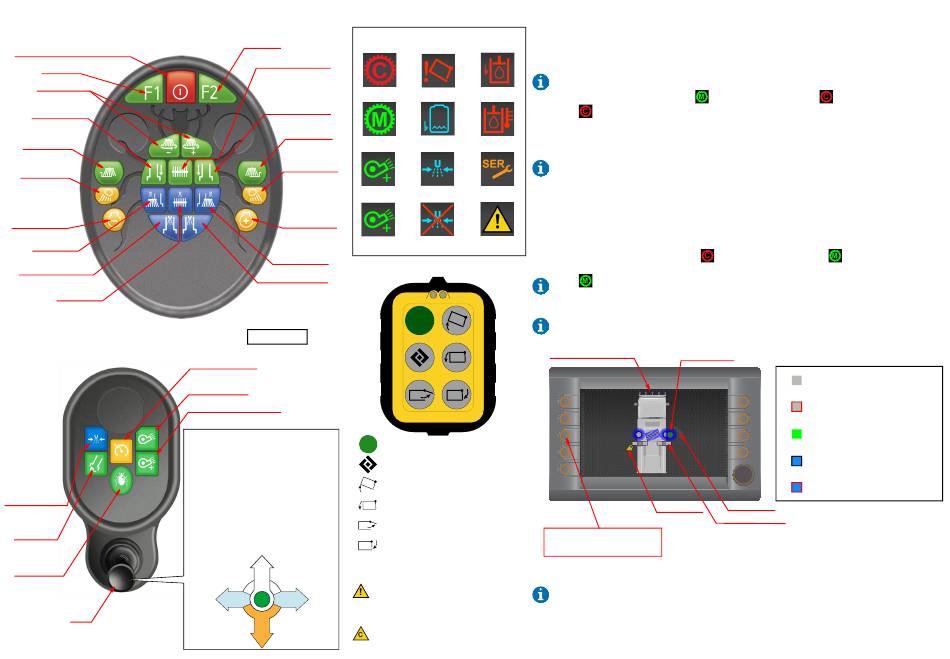

MAIN PANEL
AUXILIARY ENGINE
START/STOP + SWEEP MODE
OPTIONS*
BRUSH SPEED
LEFT SUCTION
LEFT
SIDE BRUSH
LEFT
WORKLIGHT
ENGINE SPEED
LEFT WATER
LEFT ADDITIONAL
WATER*
WIDESWEEP
WATER
AUXILIARY PANEL
HIGH-PRESSURE
PUMP*
NOZZLE TILT
FAVOURITE
SETTING
L1
OPTIONS*
WIDESWEEP BRUSH
RIGHT SUCTION
RIGHT
SIDE BRUSH
MAIN DRIVE
RIGHT
WORKLIGHT
SUCTION FAN
ENGINE SPEED
SUCTION FAN
RIGHT WATER
RIGHT ADDITIONAL
WATER*
*OPTIONS
NOT APPLICABLE
SUCTION FAN
SUCTION FAN BOOST
MULTI-FUNCTION LEVER
ON RIGHT HAND DRIVE VEHICLES
Lever Right, side brush(es) OUT.
Lever Left, side brush(es) IN.
On machines fitted with variable extend and
retraction, move the lever momentarily in
the desired direction to 'nudge' the
brush(es).
Reversed on Left Hand Drive.
NOZZLE-TILT FUNCTION
Pull lever back and hold to OPEN. Release to
CLOSE.
Variable Tilt:-Pull lever back to 'nudge'
DOWN from the LOCKED OPEN position.
OFF
Press and hold down the Safety Interlock and the
appropriate control switch.
SIDE
SIDE
ON
BRUSH
BRUSH
NOZZLE
TILT
SWEEP MODE
MAJOR ON-SCREEN INFORMATION
VEHICLE ENGINE RUNNING. AIR TANKS FULL.
AND WARNING SYMBOLS
1.
2.
CRAWLER
HOPPER NOT
HYDRAULIC OIL
3.
DRIVE
DOWN
LOW
4.
WATER TANK
HYDRAULIC OIL
LOW
TEMP
5.
H-P WATER
SERVICE
REMINDER
ON
PUMP
LEAVING SWEEP MODE / DISENGAGING REDUCTION DRIVE
1.
2.
ACTIVE FAULT
H-P PUMP
BOOST
NO WATER
PRESENT
3.
REMOTE CONTROL
4.
= SAFETY INTERLOCK
= OPTION
= RAISE HOPPER
= LOWER HOPPER
= OPEN DOOR
HOPPER RAISE/LOWER AND REAR
DOOR OPEN/CLOSE WARNING BUZZER
= CLOSE DOOR
PRESS TO DISABLE
For safety reasons only operate the Remote
Control controls from outside the vehicle,
from a vantage point that affords a good view
of the sweeper and its surroundings.
Before closing the rear door, ensure adequate
clearance and seal cleanliness.
Vehicle stopped and in Neutral gear. Hand brake ON. (L1)OFF.
Auxiliary Engine switch ON (Main Panel). Engine speed will change to 1100rpm.
If reduction gearbox fitted, Step 3. If not, Step 4.
Clutch de-pressed, F1 switch ON.
symbol will change to the
If the
symbol flashes and a buzzer sounds, press the F1 switch. Drive the vehicle slightly
forward and repeat step 3.
Select required sweeping equipment (Main Panel). Fan ON. (L1) ON.
Engage a suitable gear. Hand brake OFF. Clutch released, commence sweeping.
All sweeping gear is stopped and raised automatically when REVERSE is selected. Reduction
gearbox will disengage. Sweeping equipment and reduction gearbox will re-engage, when
forward is selected.
Vehicle stopped and in Neutral gear. Hand brake ON.
(L1) OFF. Fan OFF (Main Panel).
If reduction gearbox fitted, Step 3. If it has not, Step 4.
Clutch de-pressed, F1 switch OFF.
symbol will change to the
screen. Clutch released.
If the
symbol flashes and a buzzer sounds, press the F1 switch. Drive the vehicle slightly
forward and repeat step 3.
Auxiliary Engine switch OFF (Main Panel).
Before stopping the auxiliary engine, allow it to idle for at least 2 minutes to allow the turbo-
charger to cool down.
WIDE SWEEP WATER ACTIVE
BRUSH ACTIVE
WORK LIGHT ON
NOZZLE TILT INDICTOR
This document is designed as a quick reference guide, to allow the operator to drive the
vehicle in Normal or Reduction Gearbox Mode and operate the basic controls. It does not
constitute the full operating instructions.
PLEASE REFER TO REVERSE FOR HEALTH & SAFETY ADVICE
symbol on the LCD screen.
symbol on the LCD
MAIN EQUIPMENT COLOUR CODES
EQUIPMENT NOT SELECTED
EQUIPMENT PRE-SELECTED
EQUIPMENT OPERATING
WATER PRE-SELECTED
EQUIPMENT + WATER PRE-SELECTED
WATER ACTIVE
E&OE
