HYDRAULIC OIL TANK

It is advisable to top-up the Hydraulic oil level when the system is cold.
The hydraulic oil tank gauge is fitted with low level sensor. If the oil level drops too low the brush gear will be lifted and a warning symbol will be
displayed on the LCD screen and a buzzer will sound.
Topping-up
1. Raise the hopper fully.
The hopper prop must always be in the deployed position when working beneath a
raised hopper. failure to do so could result in serious injury.
2. Using the appropriate size spanner, remove the filler cap (1).
3. Top-up with HPL 32 or an equivalent hydraulic oil to the appropriate level.
Pay particular attention the hopper orientation as indicated on the level label when filling.
4. Replace the filler cap.
5. Stow the hopper prop and lower the hopper completely.

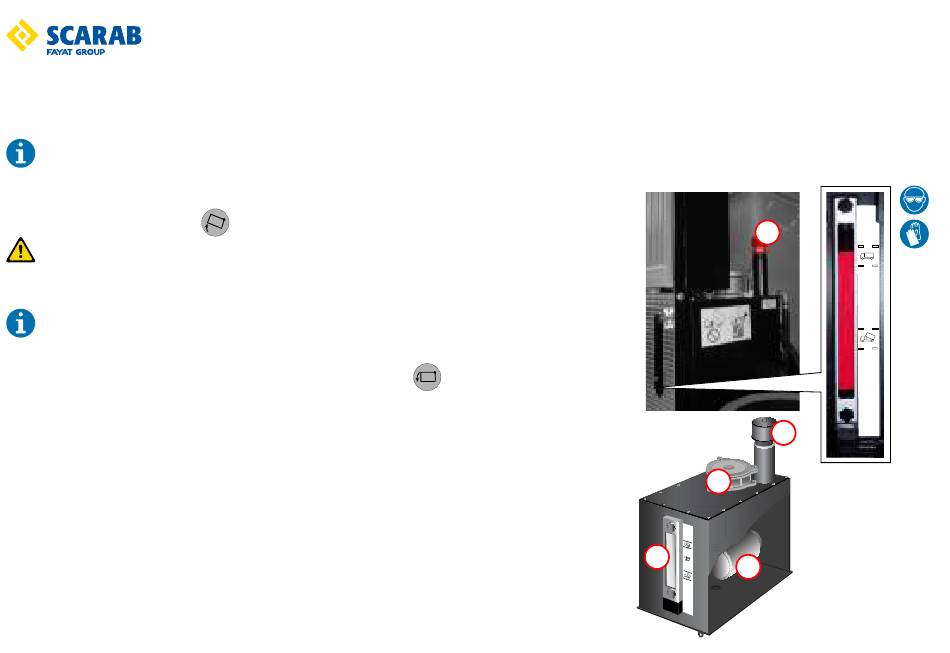

Oil tank components
1. Fill/breather cap
2. Return filter
3. Sight glass
4. Suction filter
Part No. SCAZ038022 2.4.1
Operating Instructions - Unidrive Truckmounted Road Sweeper
26
1
1
2
3
4
MAX
MIN
CHECK
COLD
MAX
MIN
