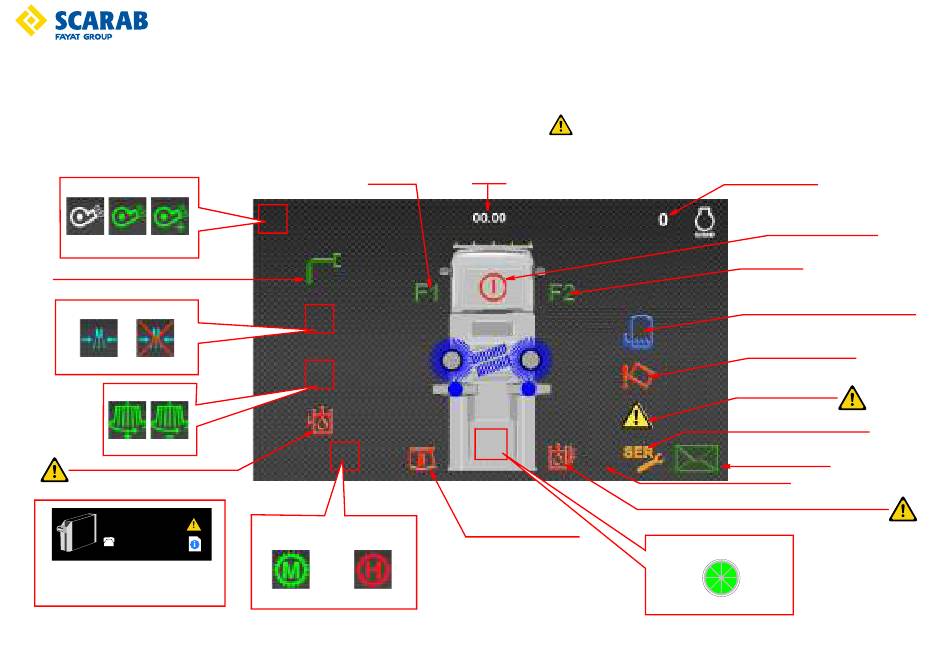

THE LCD MONITOR

The sweeping monitor displays information on the current status of the sweeper while it is in sweep mode, by indicating which items of equipment
are active, plus other relevant information ie: fluid levels, fan speed and temperatures, it also alerts the user to any warnings by means of appropriate
flashing symbols and, when appropriate, a warning buzzer. For warnings identified by
illustration shows the range of information/alert symbols that can be displayed, however it should be noted that warning symbols (**) only illuminate
when a specific condition occurs.
SUCTION FAN
+
OFF ON BOOST
WANDER HOSE ACTIVE
HIGH PRESSURE WATER
ON NO WATER
BUSH SPEED
FAST SLOW
LOW HYDRAULIC OIL LEVEL**
NODE Software Error !
+44 1622 831006
FLASHES ACROSS SCREEN
WHEN NODE SOFTWARE
IS INCOMPATIBLE
Part No. SCAZ038022 2.4.1
OPTION
F1
F1
DRIVE MODES
REDUCTION GEARBOX ONLY
M
MANUAL CRAWLER
Operating Instructions - Unidrive Truckmounted Road Sweeper
, stop and investigate the cause. The accompanying
TIME
00.00
F2
F2
CRUISE CONTROL ACTIVE
HYDRAULIC OIL TEMPERATURE WARNING**
HOPPER OVERLOAD
WARNING ** (OPTION)
9
ENGINE SPEED
0
SWEEP MODE 'ON'
N/MIN
N/MIN
OPTION
LOW WATER LEVEL**
(DUST SUPPRESSOR SYSTEM)
HOPPER RAISED**
FAULT ACTIVE**
SERVICE REMINDER**
ASIGN NODE**
FAN SPEED INDICATOR
2000 RPM
E&OE
