1.7.5

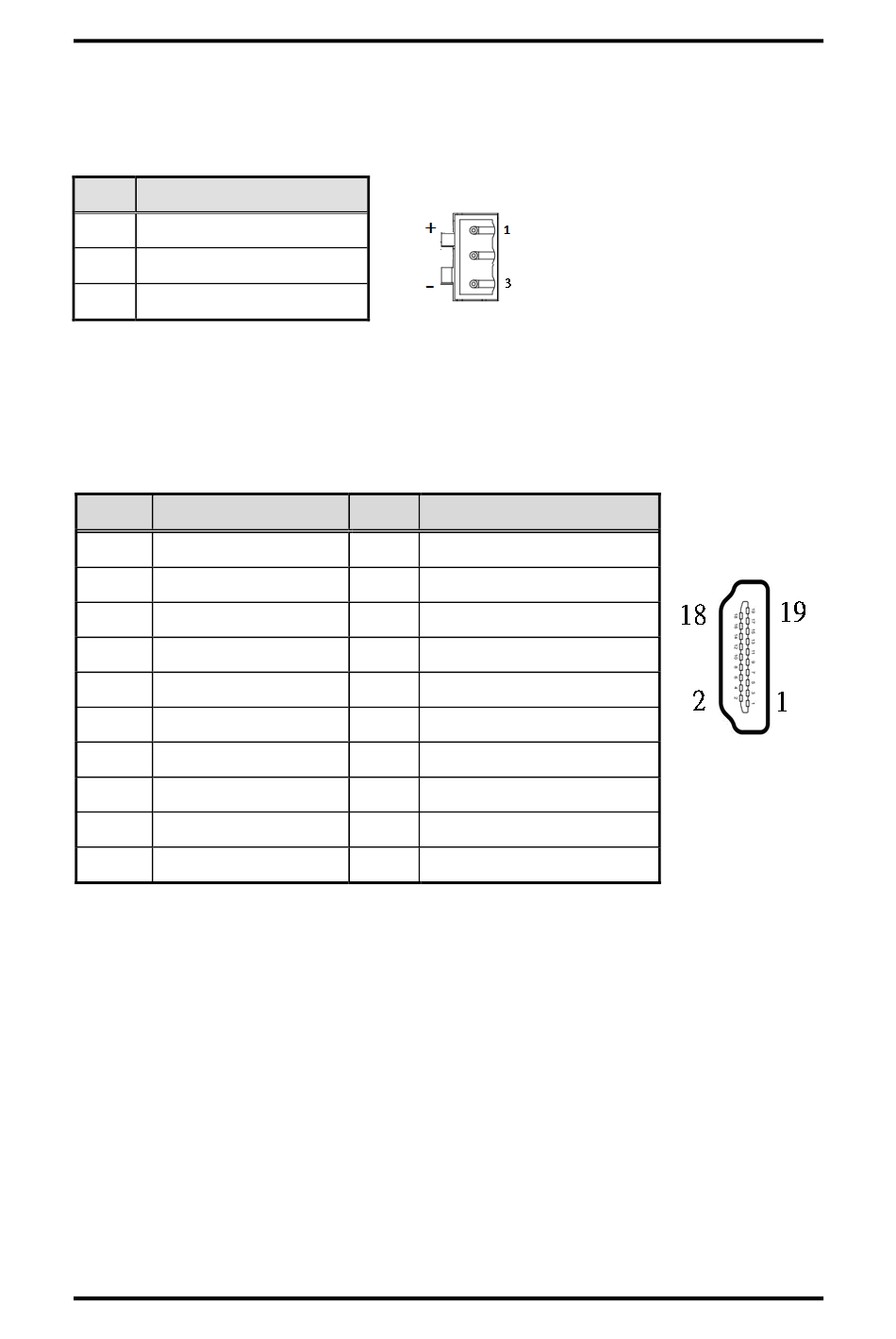

DC-in Power Connector

The system supports 24VDC DC-in connector for system power input.
Pins Signals
1 DC+
2 GND
3 DC-
1.7.6

HDMI Connector

The HDMI (High-Definition Multimedia Interface) is a compact digital interface capable of
transmitting high-definition video and high-resolution audio over a single cable.
Pins Signals
1 HDMI OUT_DATA2+
GND
2
3 HDMI OUT_DATA2-
4
HDMI OUT_DATA1+
5 GND
6
HDMI OUT_DATA1-
7 HDMI OUT_DATA0+
8 GND
9 HDMI OUT_DATA0-
10 HDMI OUT Clock+
Introduction
Pins Signals
11 GND
12 HDMI OUT Clock-
13 N.C.
14 N.C.
15 HDMI OUT_SCL
16 HDMI OUT_SDA
17 GND
18 +5V
19 HDMI_HTPLG
MVS100-323-FL User's manual
13
