MVS100-323-FL User's manual
Wet contact:
Device
or
3.1.2
Isolated Digital Output & Trigger Output

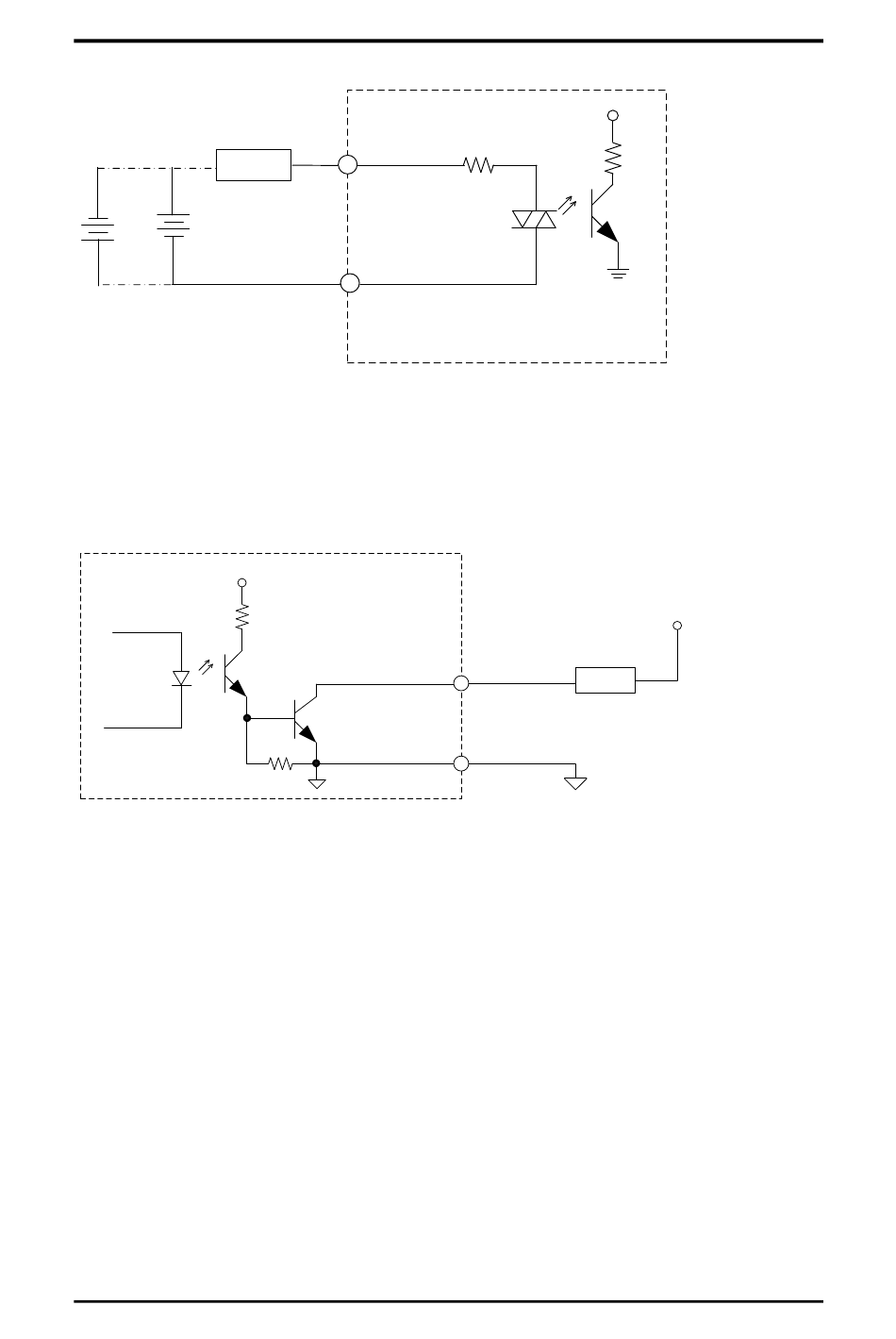

The figure shows how to connect an output channel to the system.
If an external voltage of 5~30 VDC is applied to an isolated digital or trigger output channel, the
current will flow from the external voltage source to the system.
Please note that the current through each DO channel should not exceed 100 mA.
28
7.5K ohm
DI/
Trigger input
DI_COM/
Trigger input_COM
DO/Trigger output
I_GND
+PWR
Device
I/O Connection
