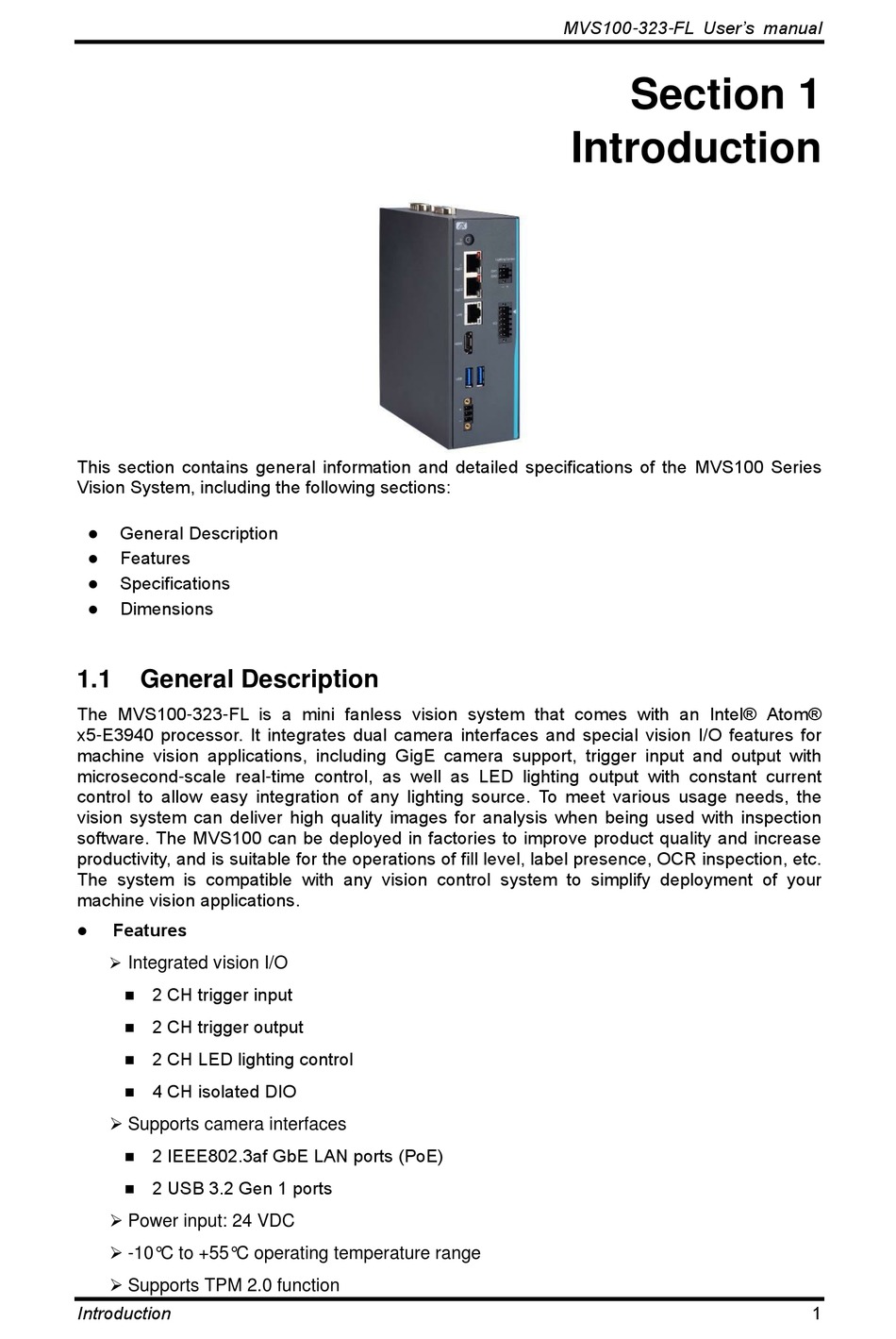

Section 1 Introduction; General Description - AXIOMTEK MVS100-323-FL User Manual

This section contains general information and detailed specifications of the MVS100 Series
Vision System, including the following sections:

General Description

⚫
Features
⚫
Specifications
⚫
Dimensions
⚫
1.1 General Description
The MVS100-323-FL is a mini fanless vision system that comes with an Intel® Atom®
x5-E3940 processor. It integrates dual camera interfaces and special vision I/O features for
machine vision applications, including GigE camera support, trigger input and output with
microsecond-scale real-time control, as well as LED lighting output with constant current
control to allow easy integration of any lighting source. To meet various usage needs, the
vision system can deliver high quality images for analysis when being used with inspection
software. The MVS100 can be deployed in factories to improve product quality and increase
productivity, and is suitable for the operations of fill level, label presence, OCR inspection, etc.
The system is compatible with any vision control system to simplify deployment of your
machine vision applications.
Features
⚫
➢
Integrated vision I/O
2 CH trigger input
◼
2 CH trigger output
◼
2 CH LED lighting control
◼
4 CH isolated DIO
◼
➢ Supports camera interfaces
2 IEEE802.3af GbE LAN ports (PoE)
◼
2 USB 3.2 Gen 1 ports
◼
➢ Power input: 24 VDC
➢ -10°C to +55°C operating temperature range
➢ Supports TPM 2.0 function
