3.1

I/O Connection (12-pin terminal connector)

Refer to this section to connect any cables between the system and other devices.
Each of the following I/O figures illustrates their respective connection on the MVS100.
3.1.1 Isolated Digital Input & Trigger Input

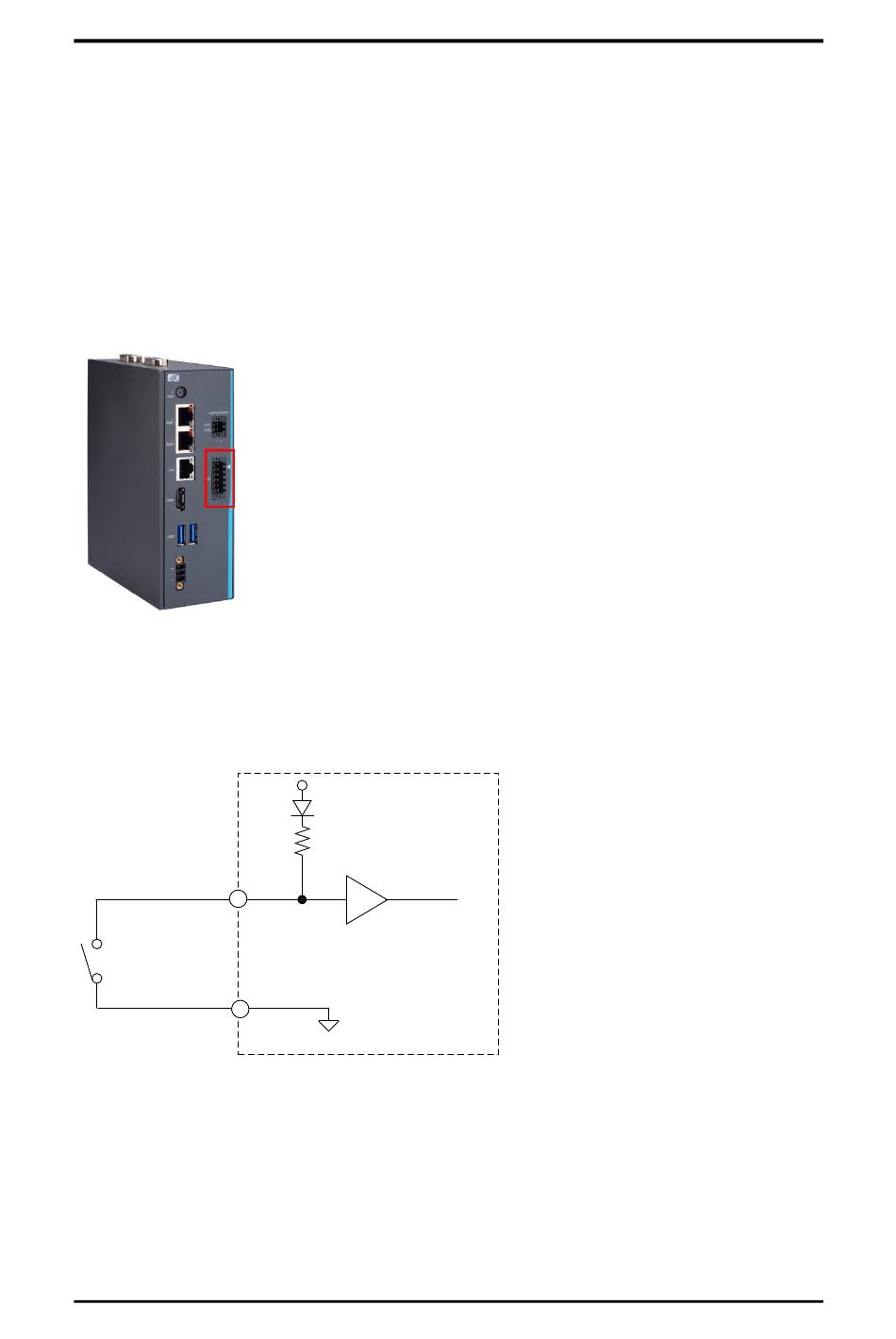

The figure shows how to connect an external input source to the system.
Each of the isolated digital and trigger input channels accepts dry contact and wet contact
0~30 VDC with sink type and source type.
Dry contact:
Switch
I/O Connection
DI/
Trigger input
I_GND
