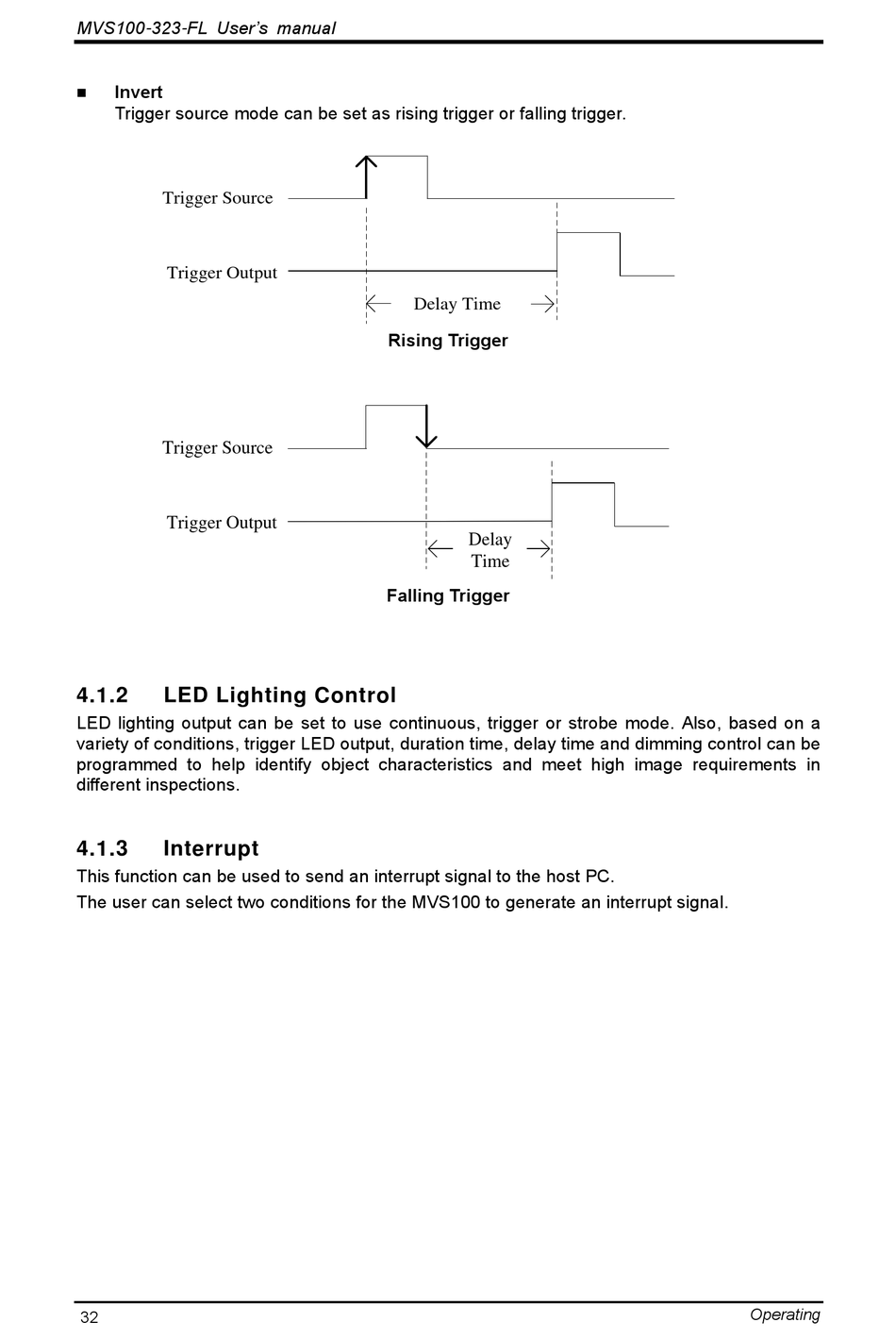

Invert
◼
Trigger source mode can be set as rising trigger or falling trigger.
Trigger Source
Trigger Output
Trigger Source
Trigger Output
4.1.2

LED Lighting Control

LED lighting output can be set to use continuous, trigger or strobe mode. Also, based on a
variety of conditions, trigger LED output, duration time, delay time and dimming control can be
programmed to help identify object characteristics and meet high image requirements in
different inspections.
4.1.3

Interrupt

This function can be used to send an interrupt signal to the host PC.
The user can select two conditions for the MVS100 to generate an interrupt signal.
32
Delay Time
Rising Trigger
Delay
Time
Falling Trigger
