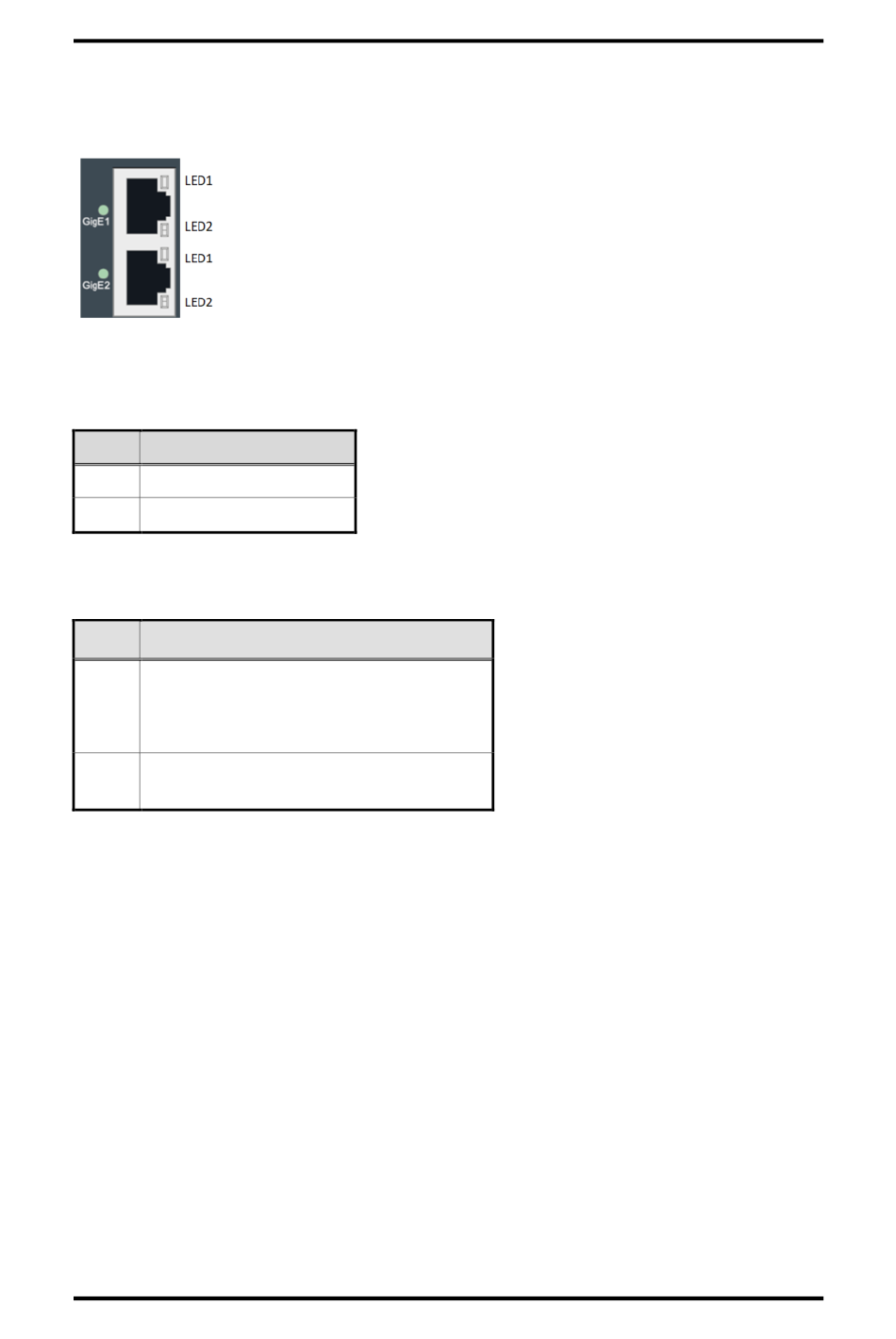

PD Power Indicator & GigE1 ~ GigE2 ports
The system has two camera interfaces with PoE functions for connecting industrial cameras.
PD Power Indicator
When a GigE port is currently active, its corresponding PD power indicator will light up.
Pin
Signal
GigE1
CAM Port1
GigE2
CAM Port2
GigE1 ~ GigE2 Ports
Pin
Description
Active LED: Amber
LED1
Off: No link
Blinking: Data activity detected
LED2
Link LED (10: OFF; 100-Green; 1000-Amber)
Introduction
MVS100-323-FL User's manual
17
