MVS100-323-FL User's manual
3.2
I/O Connection (4-pin terminal connector)

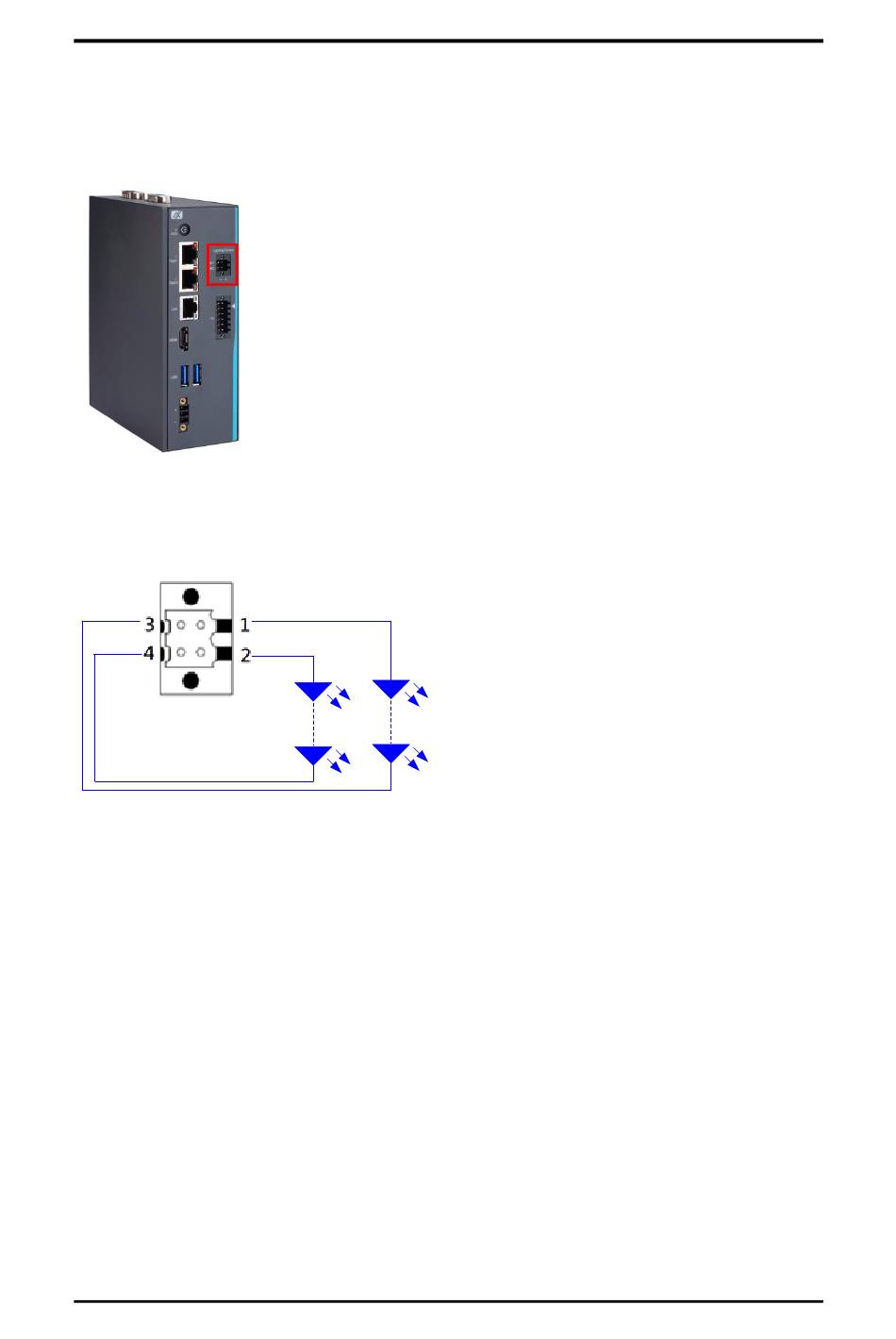

The system offers 2 ports for LED output, as shown by the red box in the figure below. Refer to
this section to connect any cables between the lighting control output and other LEDs.
3.2.1
LED Lighting Control
The figure shows how to connect external LEDs to the system.
Each of the LED output channels supports 12/24VDC up to 500mA in strobe mode.
LED1+
LED1-
LED2-
LED2+
I/O Connection
29
