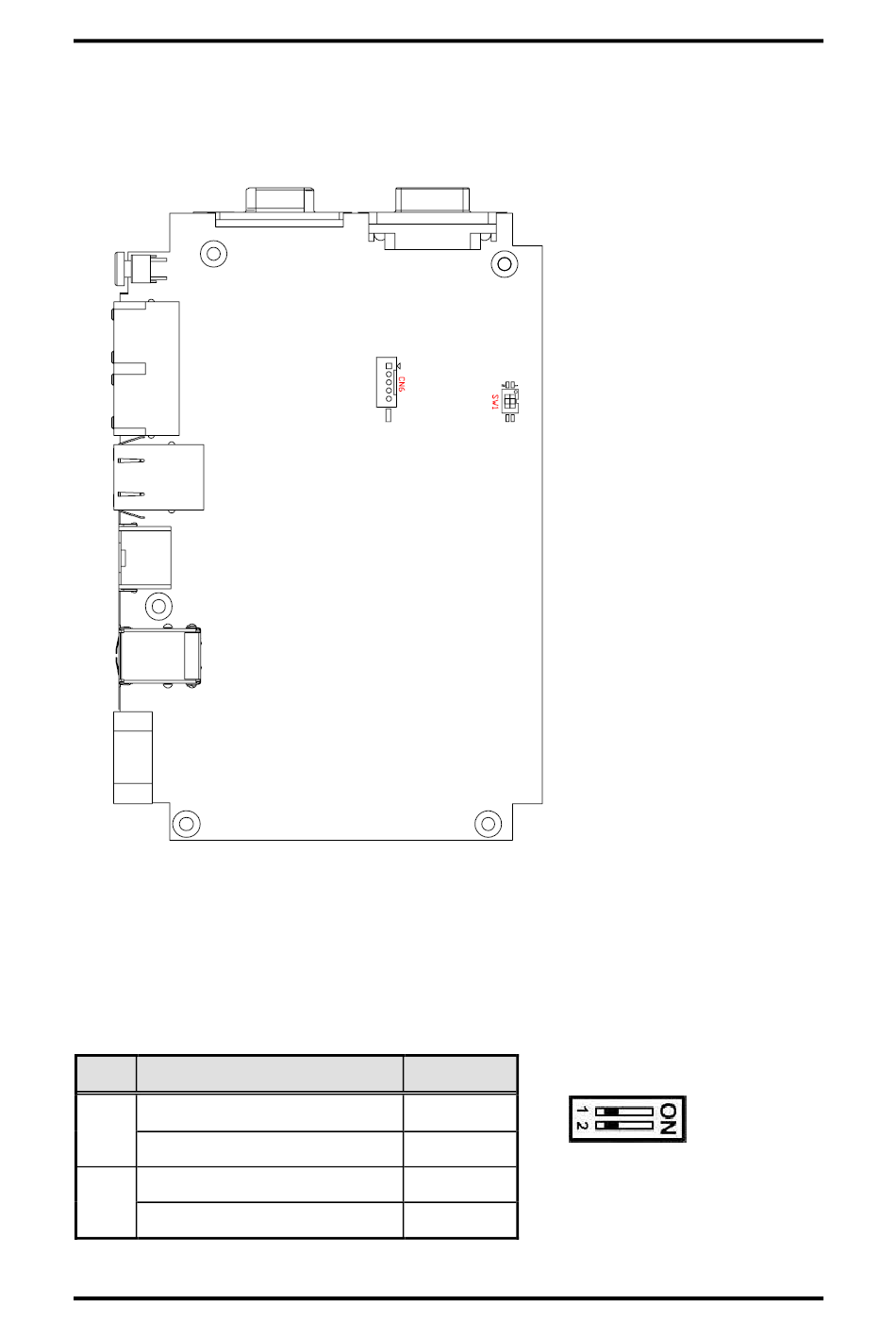

1.6 Switch Settings & Wafer connector
Properly configure switch settings on the MVS100 to meet your application purpose. Below
you can find a summary table of switch and onboard default settings.
1.6.1 AT/ATX Mode & Clear CMOS Optimal Defaults (SW1)
If AT/ATX switch is set to AT mode, the system will be automatically powered on without
pressing soft power button during power input; we can use this switch to achieve auto power
on demand.
Set the switch to OFF for a few seconds then move it back to ON. Doing this procedure can
clear BIOS optimal defaults.
Item Function
1
ATX mode (default)
AT mode
2 Normal operation (default)
Clear COMS
8
Setting
SW1 OFF
SW1 ON
SW2 OFF
SW2 ON
Introduction
