MVS100-323-FL User's manual
1.2

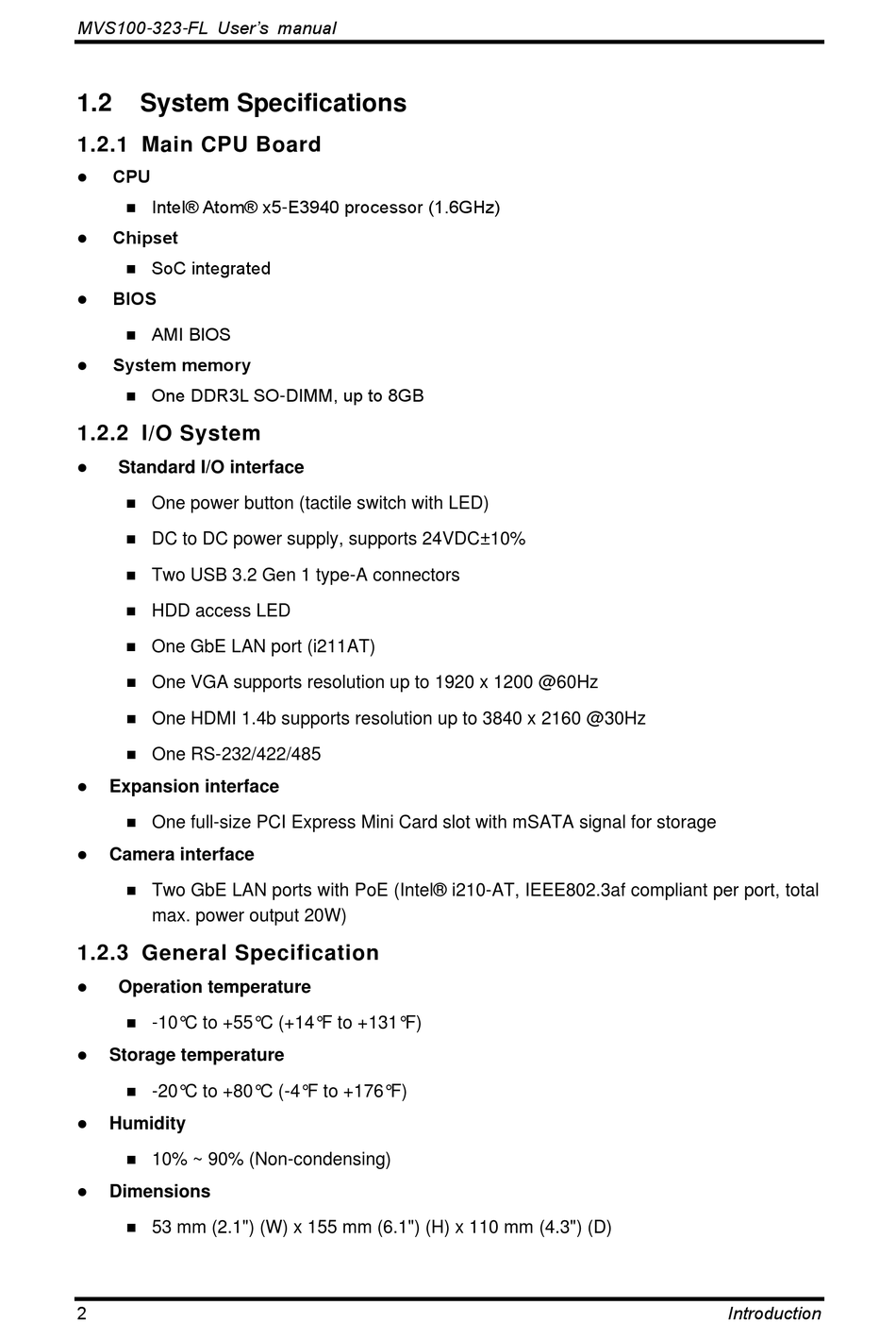

System Specifications

1.2.1 Main CPU Board

CPU
⚫
Intel® Atom® x5-E3940 processor (1.6GHz)
◼
Chipset
⚫
SoC integrated
◼
BIOS
⚫
AMI BIOS
◼
System memory
⚫
One DDR3L SO-DIMM, up to 8GB
◼

1.2.2 I/O System

⚫ Standard I/O interface
◼ One power button (tactile switch with LED)
◼
DC to DC power supply, supports 24VDC±10%
◼ Two USB 3.2 Gen 1 type-A connectors
◼ HDD access LED
◼
One GbE LAN port (i211AT)
◼
One VGA supports resolution up to 1920 x 1200 @60Hz
◼ One HDMI 1.4b supports resolution up to 3840 x 2160 @30Hz
◼
One RS-232/422/485
⚫ Expansion interface
◼ One full-size PCI Express Mini Card slot with mSATA signal for storage
⚫ Camera interface
◼ Two GbE LAN ports with PoE (Intel® i210-AT, IEEE802.3af compliant per port, total
max. power output 20W)

1.2.3 General Specification

⚫ Operation temperature
◼
-10°C to +55°C (+14°F to +131°F)
⚫ Storage temperature
◼ -20°C to +80°C (-4°F to +176°F)
⚫ Humidity
◼ 10% ~ 90% (Non-condensing)
⚫ Dimensions
◼ 53 mm (2.1") (W) x 155 mm (6.1") (H) x 110 mm (4.3") (D)
