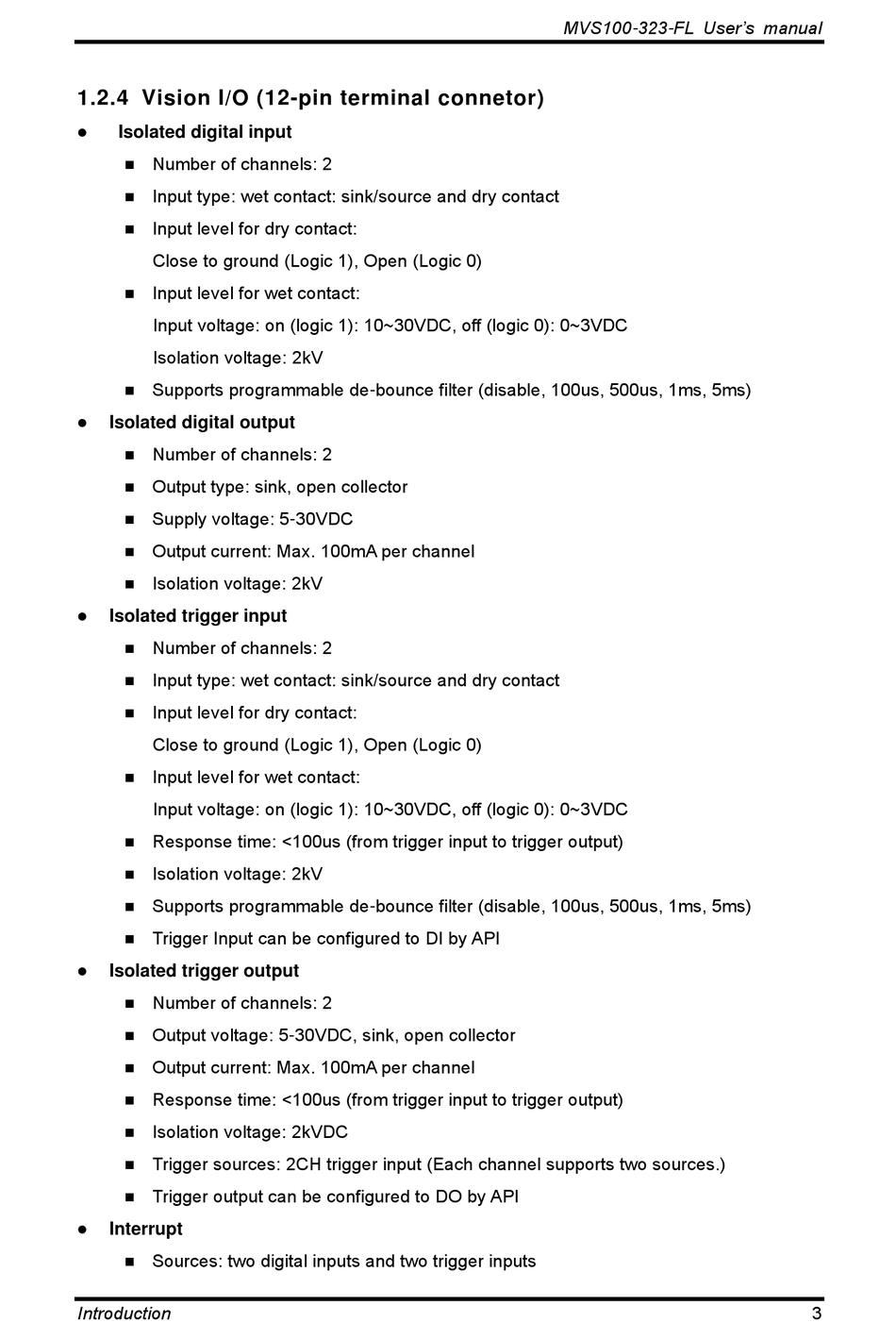

1.2.4 Vision I/O (12-pin terminal connetor)

⚫ Isolated digital input
Number of channels: 2
◼
Input type: wet contact: sink/source and dry contact
◼
Input level for dry contact:
◼
Close to ground (Logic 1), Open (Logic 0)
Input level for wet contact:
◼
Input voltage: on (logic 1): 10~30VDC, off (logic 0): 0~3VDC
Isolation voltage: 2kV
Supports programmable de-bounce filter (disable, 100us, 500us, 1ms, 5ms)
◼
⚫ Isolated digital output
Number of channels: 2
◼
Output type: sink, open collector
◼
Supply voltage: 5-30VDC
◼
Output current: Max. 100mA per channel
◼
Isolation voltage: 2kV
◼
⚫ Isolated trigger input
Number of channels: 2
◼
Input type: wet contact: sink/source and dry contact
◼
Input level for dry contact:
◼
Close to ground (Logic 1), Open (Logic 0)
Input level for wet contact:
◼
Input voltage: on (logic 1): 10~30VDC, off (logic 0): 0~3VDC
Response time: <100us (from trigger input to trigger output)
◼
Isolation voltage: 2kV
◼
Supports programmable de-bounce filter (disable, 100us, 500us, 1ms, 5ms)
◼
Trigger Input can be configured to DI by API
◼
⚫ Isolated trigger output
Number of channels: 2
◼
Output voltage: 5-30VDC, sink, open collector
◼
Output current: Max. 100mA per channel
◼
Response time: <100us (from trigger input to trigger output)
◼
Isolation voltage: 2kVDC
◼
Trigger sources: 2CH trigger input (Each channel supports two sources.)
◼
Trigger output can be configured to DO by API
◼
⚫ Interrupt
Sources: two digital inputs and two trigger inputs
◼
