MVS100-323-FL User's manual
1.7.1

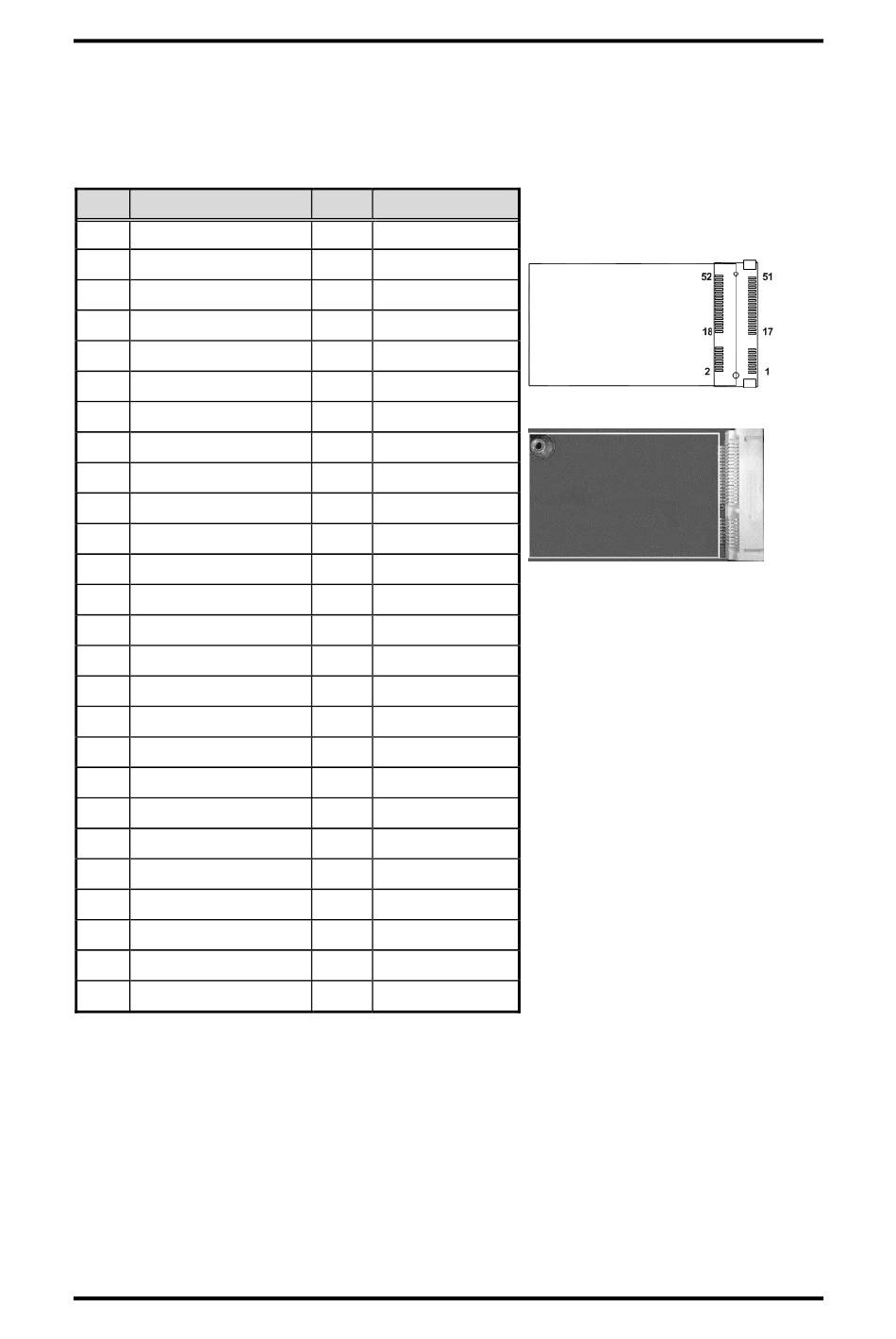

Mini Card Slot

The system has a PCI-Express Mini Card connector on the top side. It supports mSATA
signals for storage.
Pins Signals
1 No use
3 No use
5 No use
7 No use
9 GND
11 No use
13 No use
15 GND
17 No use
19 No use
21 GND
SATA_RXP
23
SATA_RXP
25 SATA_RXN
27 GND
29 GND
31 SATA_TXN
SATA_TXN
33 SATA_TXP
SATA_TXP
35 GND
37 GND
39 +3.3VSB
41 +3.3VSB
43 GND
45 No use
47 No use
49 No use
51 No use
10
Pins Signals
2 +3.3VSB
4 GND
6 +1.5V
8 No use
10 No use
12 No use
14 No use
16 No use
18 GND
20 No use
22 PERST#
24 +3.3VSB
26 GND
28 +1.5V
30 No use
32 No use
34 GND
36 No use
38 No use
40 GND
42 No use
44 No use
46 No use
48 +1.5V
50 GND
52 +3.3VSB
