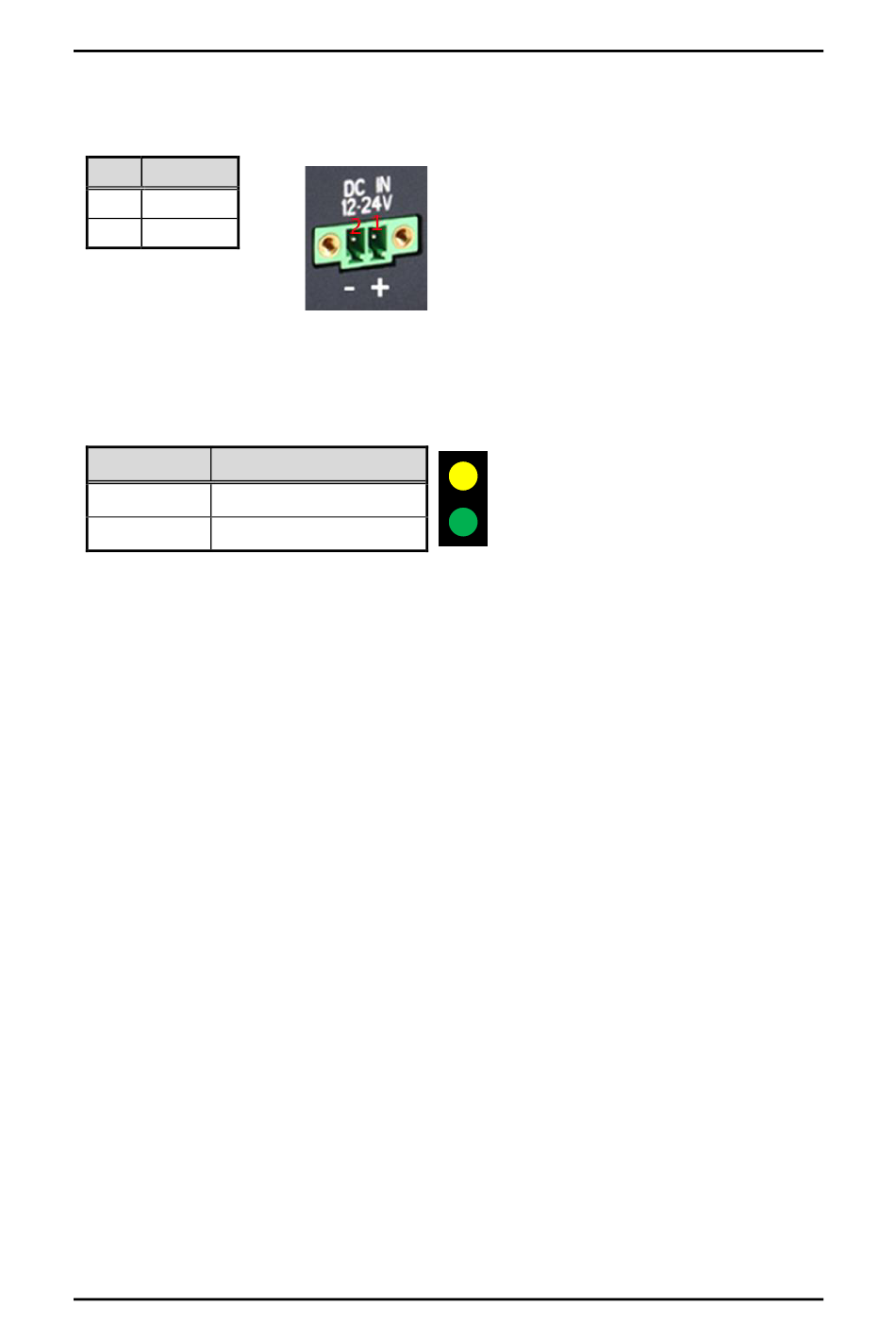

3.2.11 DC Power Jack Connector (DCIN1)
Steady and sufficient power can be supplied to all components by connecting the
power connector.
Pin
Signal
1
12-24V
2
GND
3.2.12 Power and Storage LED Indicator (LED1)
The Yellow LED is linked to Solid-state Drive (SSD) activity signal. LED flashes every
time SSD is accessed. The power LED (Green) lights up and will remain steady while
the system is powered on.
LED Color
Solid-state drive activity
Yellow
Green
Setting & connector
Description
Power on/off
RSC101 User's Manual
19
