1.7.2

LAN

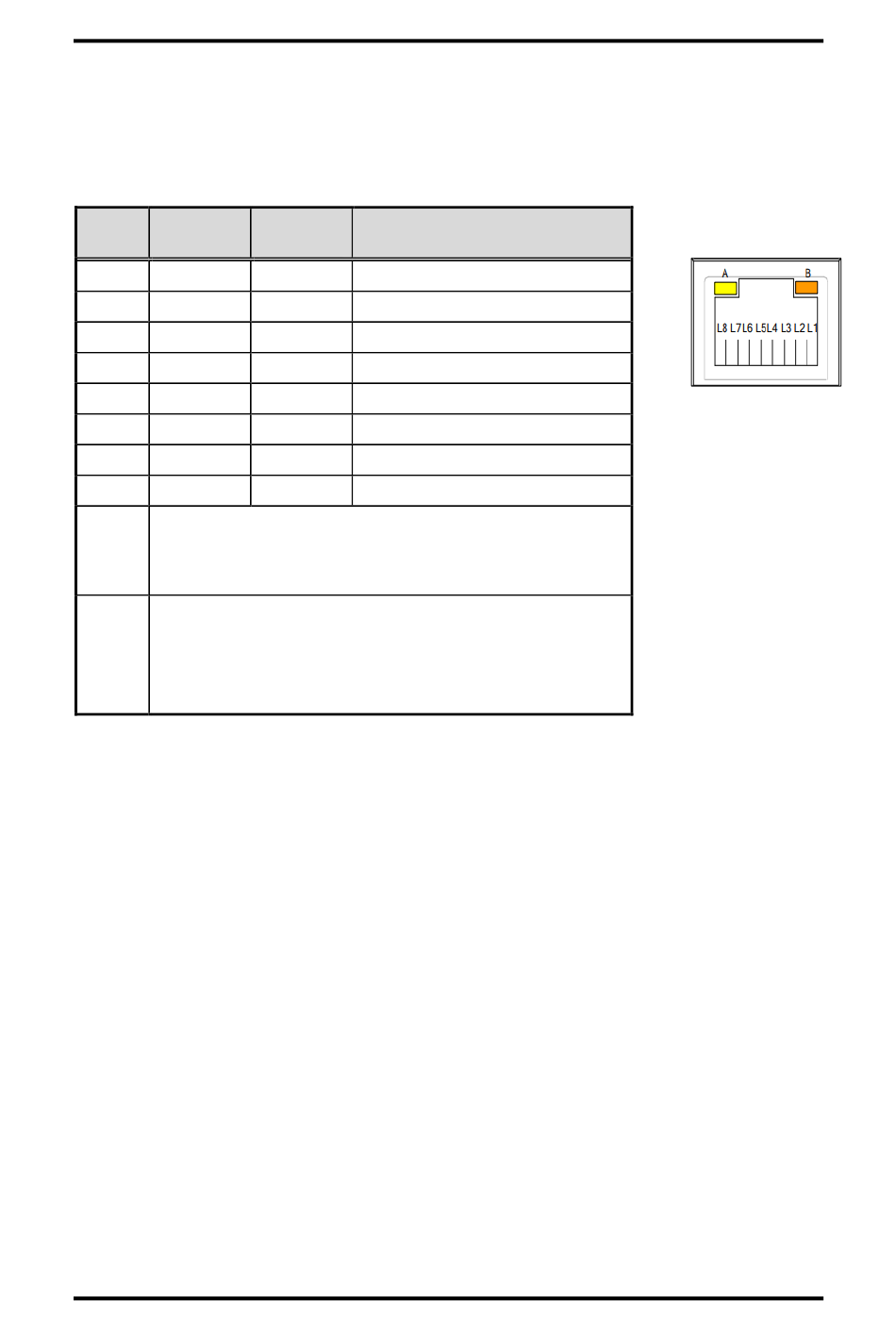

The system has one RJ-45 connector: LAN. Ethernet connection can be established by
plugging one end of the Ethernet cable into this RJ-45 connector and the other end (phone
jack) to a 1000/100/10-Base-T hub.
1000
Pins
Base-T
L1 BI_DA+
L2 BI_DA-
L3 BI_DB+
L4 BI_DC+
L5 BI_DC-
L6 BI_DB-
L7 BI_DD+
L8 BI_DD-
Active link LED (Yellow)
A Off: No link
Blinking: Data activity detected
Speed LED
1000: Amber
B
100: Green
10: OFF
Introduction
100/10
Descriptions
Base-T
TX+ Bidirectional or transmit data+
TX- Bidirectional or transmit data-
RX+ Bidirectional or receive data+
N.C. Bidirectional or not connected
N.C. Bidirectional or not connected
RX- Bidirectional or receive data-
N.C. Bidirectional or not connected
N.C. Bidirectional or not connected
