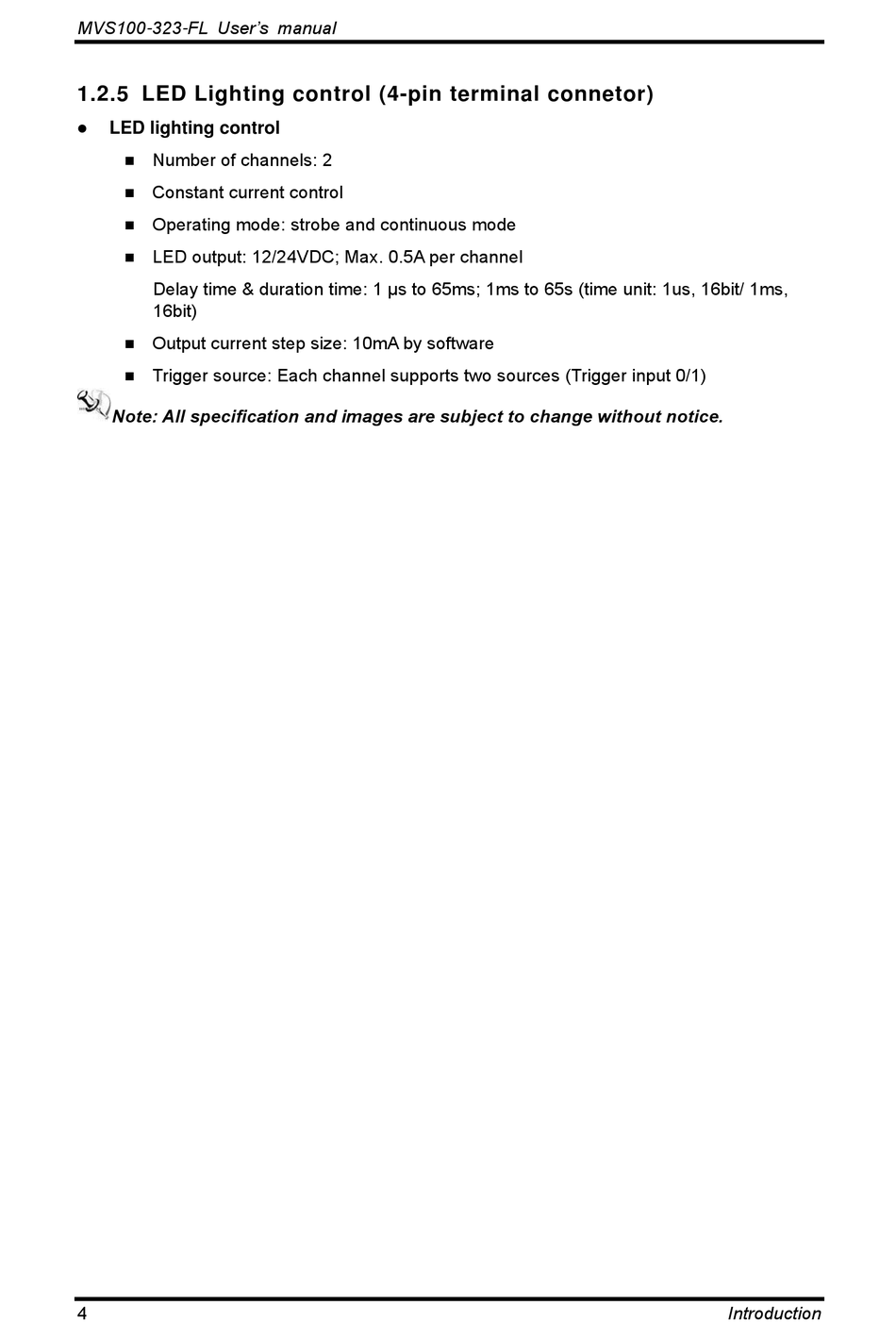

1.2.5 LED Lighting control (4-pin terminal connetor)

⚫ LED lighting control
Number of channels: 2
◼
Constant current control
◼
Operating mode: strobe and continuous mode
◼
LED output: 12/24VDC; Max. 0.5A per channel
◼
Delay time & duration time: 1 μs to 65ms; 1ms to 65s (time unit: 1us, 16bit/ 1ms,
16bit)
Output current step size: 10mA by software
◼
Trigger source: Each channel supports two sources (Trigger input 0/1)
◼
Note: All specification and images are subject to change without notice.
