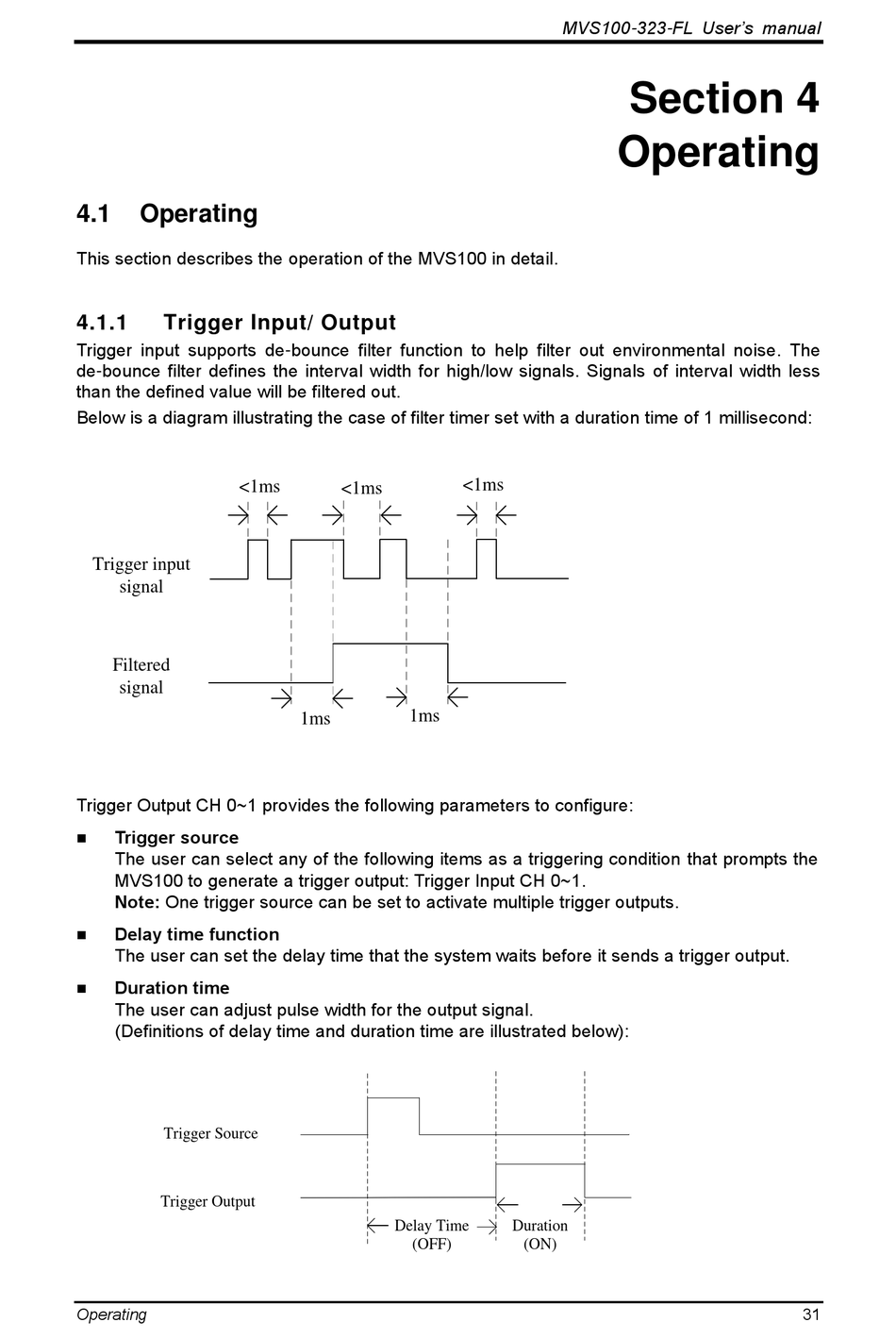

Section 4 Operating; Operating; Trigger Input/ Output - AXIOMTEK MVS100-323-FL User Manual

4.1

Operating

This section describes the operation of the MVS100 in detail.
4.1.1

Trigger Input/ Output

Trigger input supports de-bounce filter function to help filter out environmental noise. The
de-bounce filter defines the interval width for high/low signals. Signals of interval width less
than the defined value will be filtered out.
Below is a diagram illustrating the case of filter timer set with a duration time of 1 millisecond:
<1ms
Trigger input
signal
Filtered
signal
Trigger Output CH 0~1 provides the following parameters to configure:
Trigger source
◼
The user can select any of the following items as a triggering condition that prompts the
MVS100 to generate a trigger output: Trigger Input CH 0~1.
Note: One trigger source can be set to activate multiple trigger outputs.
Delay time function
◼
The user can set the delay time that the system waits before it sends a trigger output.
Duration time
◼
The user can adjust pulse width for the output signal.
(Definitions of delay time and duration time are illustrated below):
Trigger Source
Trigger Output
Operating
<1ms
<1ms
1ms
1ms
Delay Time
(OFF)
MVS100-323-FL User's manual
Section 4
Operating
Duration
(ON)
31
