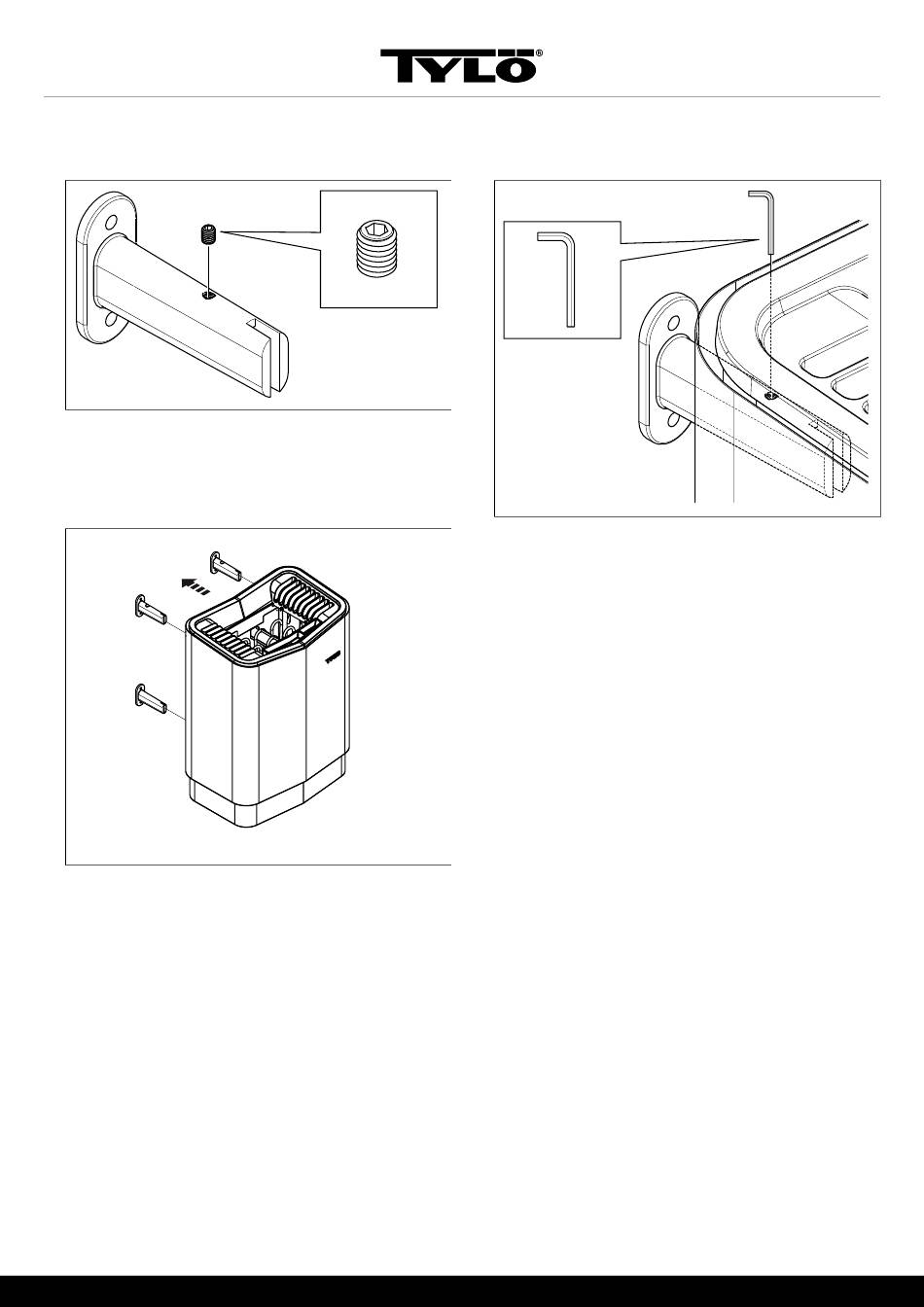

12. Insert the lock screws (M5x6 mm) into the screw holes on the
brackets (see Figure 13, Page 6).
Figure 13: Insert the lock screw into the screw hole
13. Hang the heater on the brackets by sliding it straight in to-
wards the wall (see Figure 14, Page 6). It may be ne-
cessary to slacken the bracket screws slightly. Tighten them
again after the heater has been hung up.
Figure 14: Sliding the heater on
14. Tighten both lock screws using an Allen key. (see Figure 15,
Page 6).
Figure 15: Tightening the lock screws
Unusual voltages/numbers of phases
Before connecting to voltages or numbers of phases not listed in
the wiring diagram Figure 16, Page 7, contact Tylö Customer
Service.
