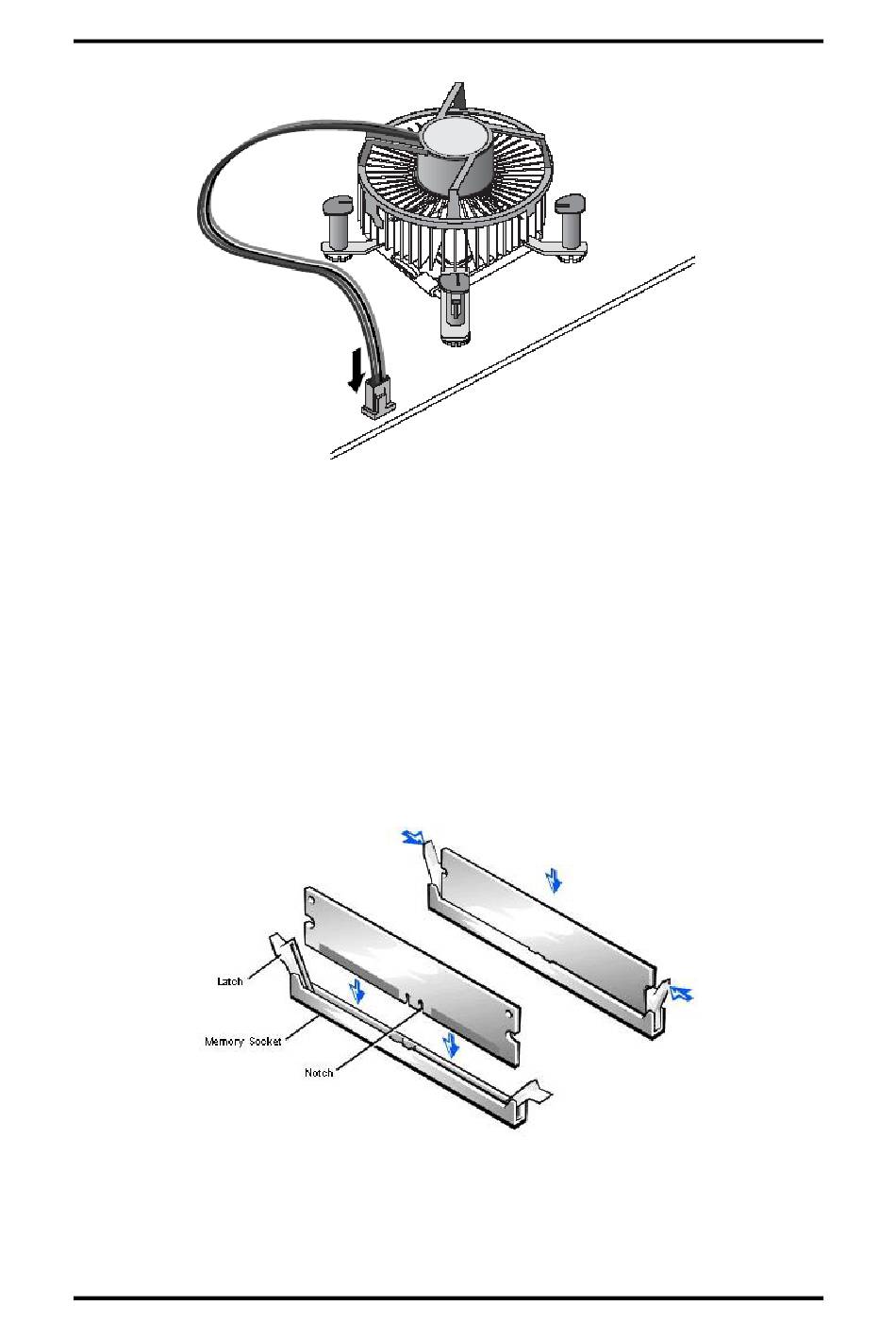

Make sure the CPU fan is plugged to the CPU fan connector.
3.2
Installing the Memory
The board supports two 240-pin DDR2 DIMM memory sockets with maximum memory
capacity up to 2GB.
Please follow steps below to install the memory modules:
1.
Push down latches on each side of the DIMM socket.
2.
Align the memory module with the socket that notches of memory module must match
the socket keys for a correct installation.
3.
Install the memory module into the socket and push it firmly down until it is fully seated.
The socket latches are levered upwards and clipped on to the edges of the DIMM.
4.
Install any remaining DIMM modules.
Hardware Installation
SBC81206 PICMG1.0 SBC User's Manual
23
