SBC81206 PICMG1.0 SBC User's Manual
2.4.4

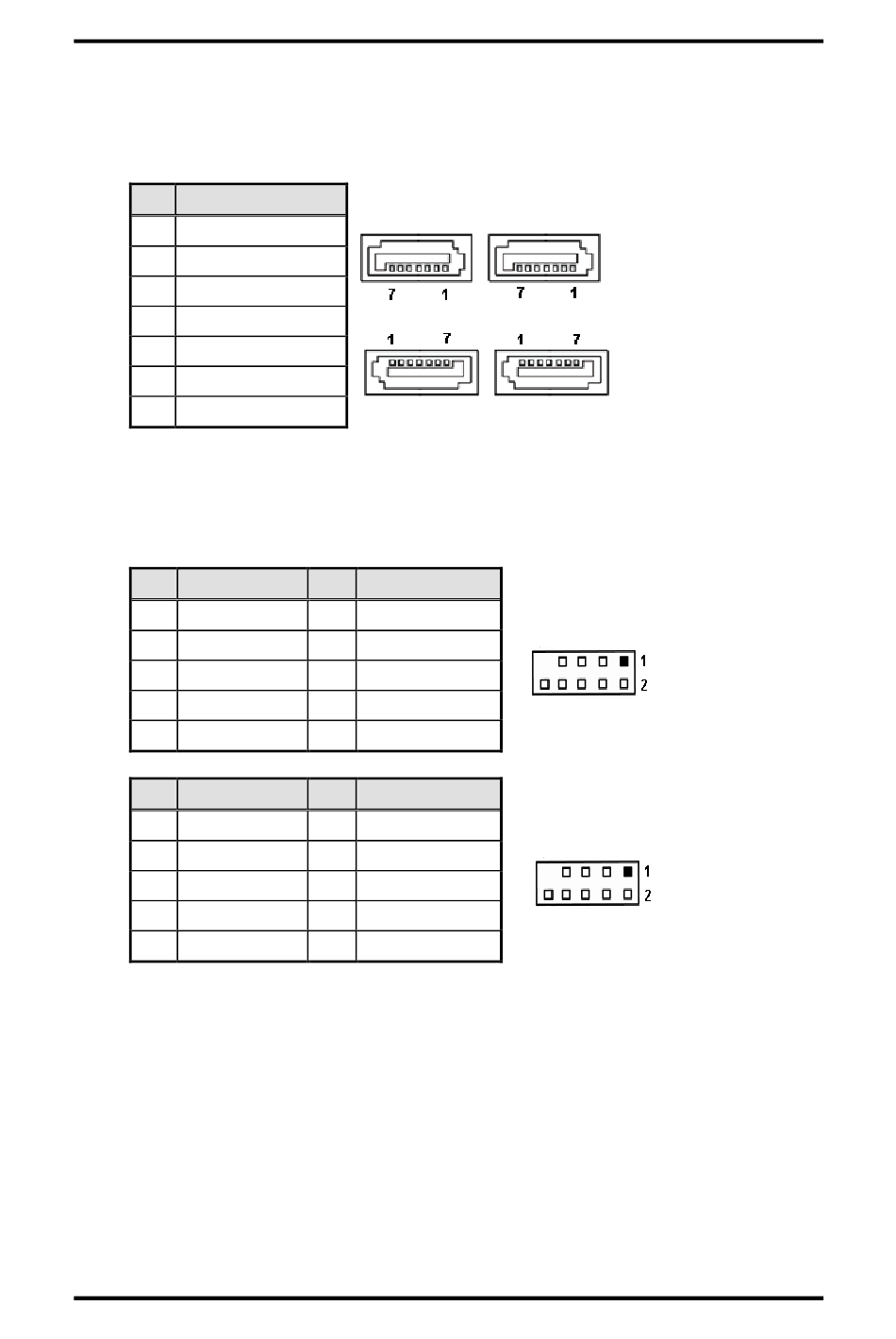

SATA Connectors (SATA1~4)
These SATA connectors are for high-speed SATA interface ports and they can be
connected to hard disk devices.
Pin
Signal
1
GND
2
SATA_TX+
3
SATA_TX-
4
GND
5
SATA_RX-
6
SATA_RX+
7
GND
2.4.5
USB Connectors (USB1, USB2)
These Universal Serial Bus (USB) connectors on this board are for installing versatile
USB interface peripherals. These are 10-pin standard USB connectors.
Pin
Signal
1
+5V
3
USB D4-
5
USB D4+
7
Ground (GND)
9
NC
Pin
Signal
1
+5V
3
USB D2-
5
USB D2+
7
Ground (GND)
9
NC
12
Pin
Signal
2
+5V
4
USB D5-
6
USB D5+
8
Ground (GND)
10
Ground (GND)
Pin
Signal
2
+5V
4
USB D3-
6
USB D3+
8
Ground (GND)
10
Ground (GND)
USB1
USB2
Board and Pin Assignments
