SBC81206 PICMG1.0 SBC User's Manual

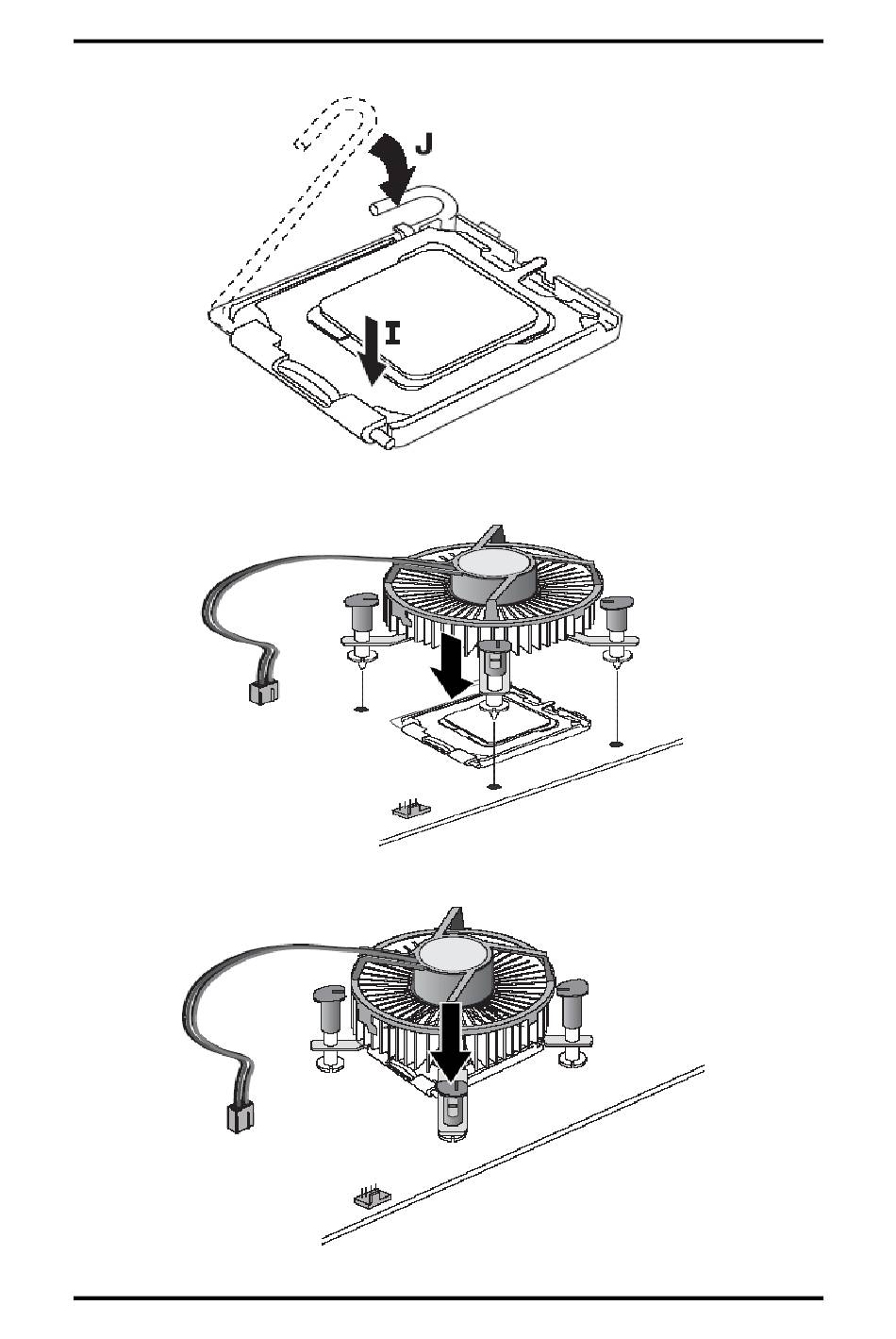

Slightly push down the cover and hook the lever (I~J). The CPU is completely locked.

Orientate the CPU cooling fan to fixing holes on the board.

Screw the CPU cooling fan onto the board.

Hardware Installation
