SBC81206 PICMG1.0 SBC User's Manual
2.4.1

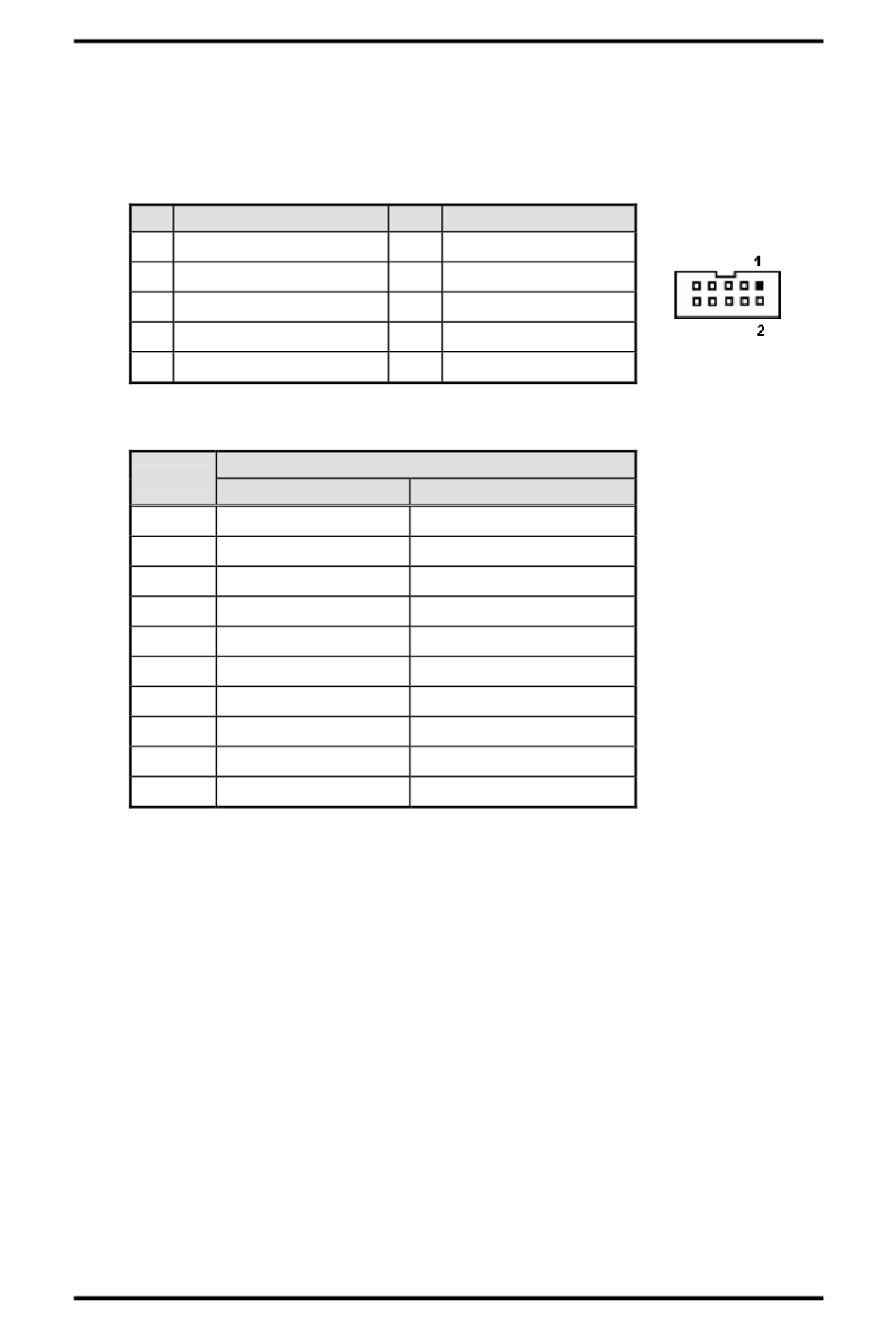

COM1, COM2 Port Connectors
The serial interface for the board consists of COM1 port (COM1) support for RS-232 and
COM2 (COM2) for RS-232/RS422/RS485.
Please refer to the RS-232 pin assignment as listed below:
Pin
Signal
1
Data Carrier Detect (DCD)
3
Receive Data (RXD)
5
Transmit Data (TXD)
7
Data Terminal Ready (DTR) 8
9
Ground (GND)
COM2 Serial Port 10-pin (Box-header) Connector Pin Assignment list
Pin
RS-422
1
TX-
2
No connector
3
TX+
4
No connector
5
RX+
6
No connector
7
RX-
8
No connector
9
GND
10
GND
10
Pin
Signal
2
Data Set Ready (DSR)
4
Request to Send (RTS)
6
Clear to Send (CTS)
Ring Indicator (RI)
10
Ground (GND)
Signal Name
RS-485
DATA-
No connector
DATA+
No connector
No connector
No connector
No connector
No connector
GND
GND
