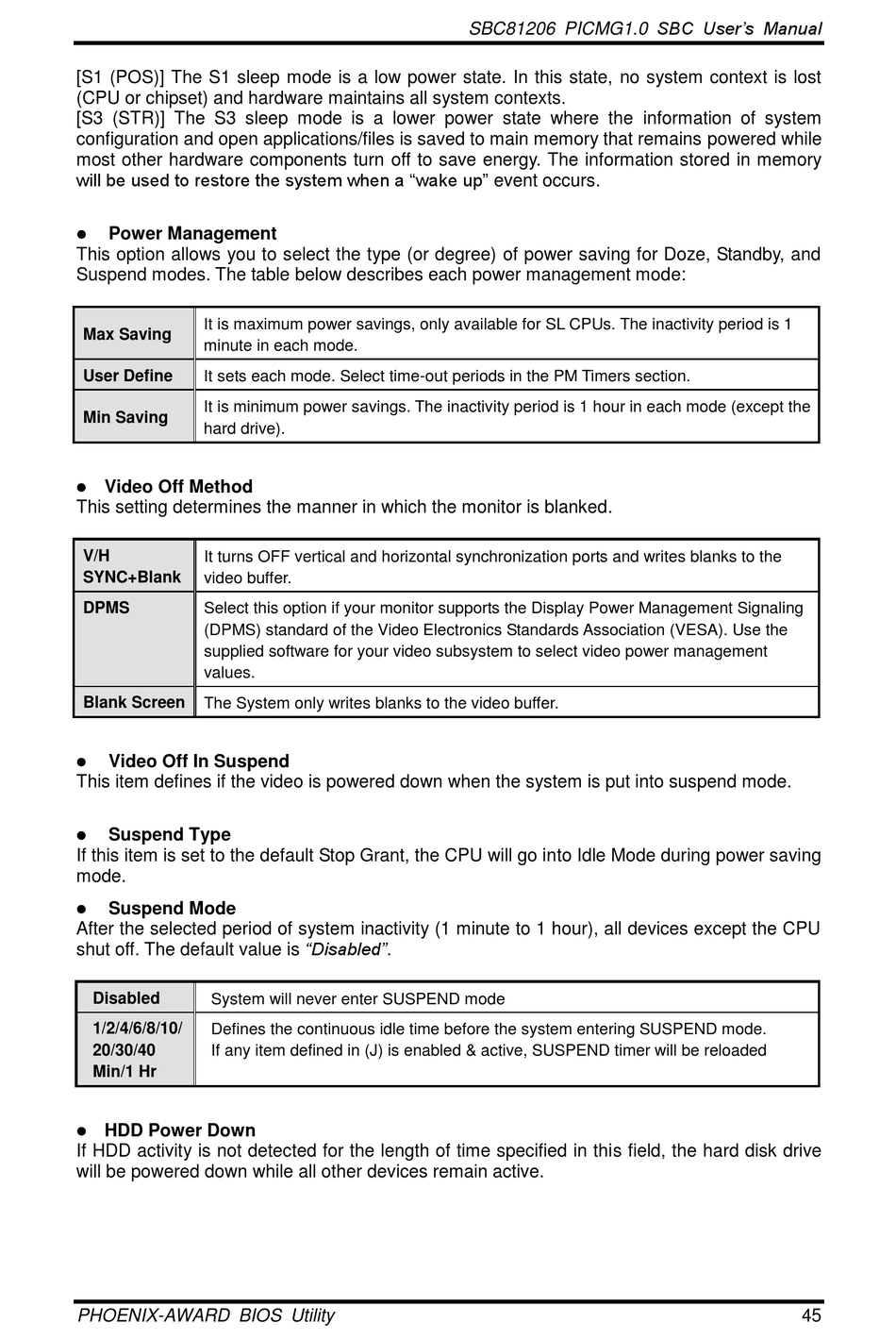

[S1 (POS)] The S1 sleep mode is a low power state. In this state, no system context is lost
(CPU or chipset) and hardware maintains all system contexts.
[S3 (STR)] The S3 sleep mode is a lower power state where the information of system
configuration and open applications/files is saved to main memory that remains powered while
most other hardware components turn off to save energy. The information stored in memory
will be used to restore the system when a "wake up" event occurs.
 Power Management
This option allows you to select the type (or degree) of power saving for Doze, Standby, and
Suspend modes. The table below describes each power management mode:
It is maximum power savings, only available for SL CPUs. The inactivity period is 1
Max Saving
minute in each mode.
User Define It sets each mode. Select time-out periods in the PM Timers section.
It is minimum power savings. The inactivity period is 1 hour in each mode (except the
Min Saving
hard drive).
 Video Off Method
This setting determines the manner in which the monitor is blanked.
V/H It turns OFF vertical and horizontal synchronization ports and writes blanks to the
SYNC+Blank
video buffer.
DPMS
Select this option if your monitor supports the Display Power Management Signaling
(DPMS) standard of the Video Electronics Standards Association (VESA). Use the
supplied software for your video subsystem to select video power management
values.
Blank Screen The System only writes blanks to the video buffer.
 Video Off In Suspend
This item defines if the video is powered down when the system is put into suspend mode.
 Suspend Type
If this item is set to the default Stop Grant, the CPU will go into Idle Mode during power saving
mode.
 Suspend Mode
After the selected period of system inactivity (1 minute to 1 hour), all devices except the CPU
shut off. The default value is "Disabled".
Disabled
System will never enter SUSPEND mode
1/2/4/6/8/10/ Defines the continuous idle time before the system entering SUSPEND mode.
20/30/40 If any item defined in (J) is enabled & active, SUSPEND timer will be reloaded
Min/1 Hr
 HDD Power Down
If HDD activity is not detected for the length of time specified in this field, the hard disk drive
will be powered down while all other devices remain active.
