SBC81206 PICMG1.0 SBC User's Manual
2.4.8

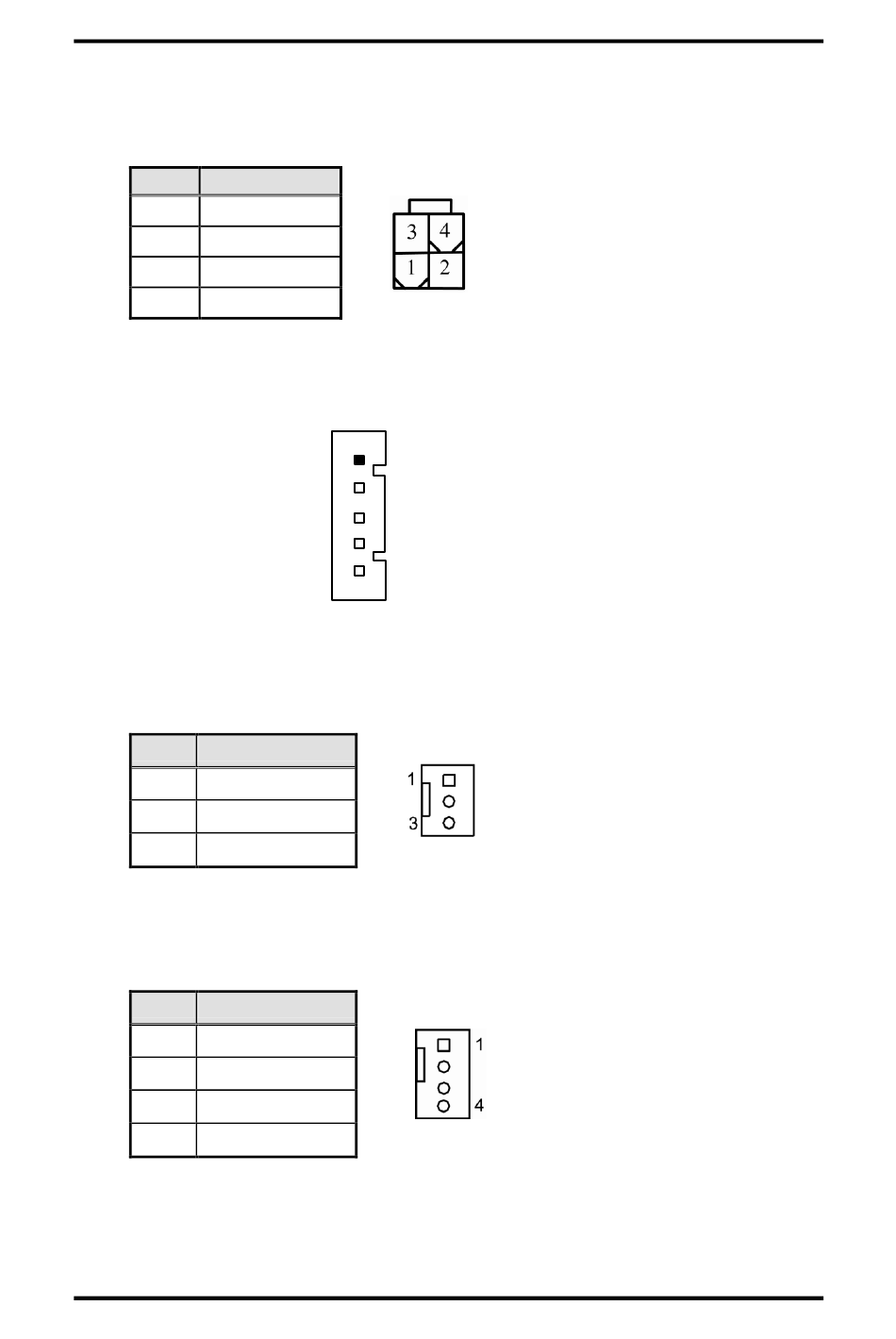

ATX 12V Power Connector (CN2)
Connect the power cable to CN2 for +12V ATX power supply.
Pin
Signal
1
GND
2
GND
3
+12V
4
+12V
2.4.9
Internal PS/2 Keyboard and Mouse Connector (KB1, MS1)
The board provides the Keyboard (KB1)/ Mouse (MS1) interface with a 5-pin connector
No Connection
2.4.10
3 Pin Fan Connectors (FAN1, FAN3)
You can connect the system cooling fan cable to FAN1, FAN3.
Pin
Signal
1
Ground
2
+12V
3
Sensor
2.4.11
4 Pin CPU Fan Connector (FAN2)
You can connect the CPU cooling fan cable to FAN2. It is for CPU cooling fan power.
Pin
Signal
1
GND
2
+12V
3
Sensor
4
NC
14
Clock
1
Data
2
3
GND
4
Power
5
Board and Pin Assignments
