SBC81206 PICMG1.0 SBC User's Manual

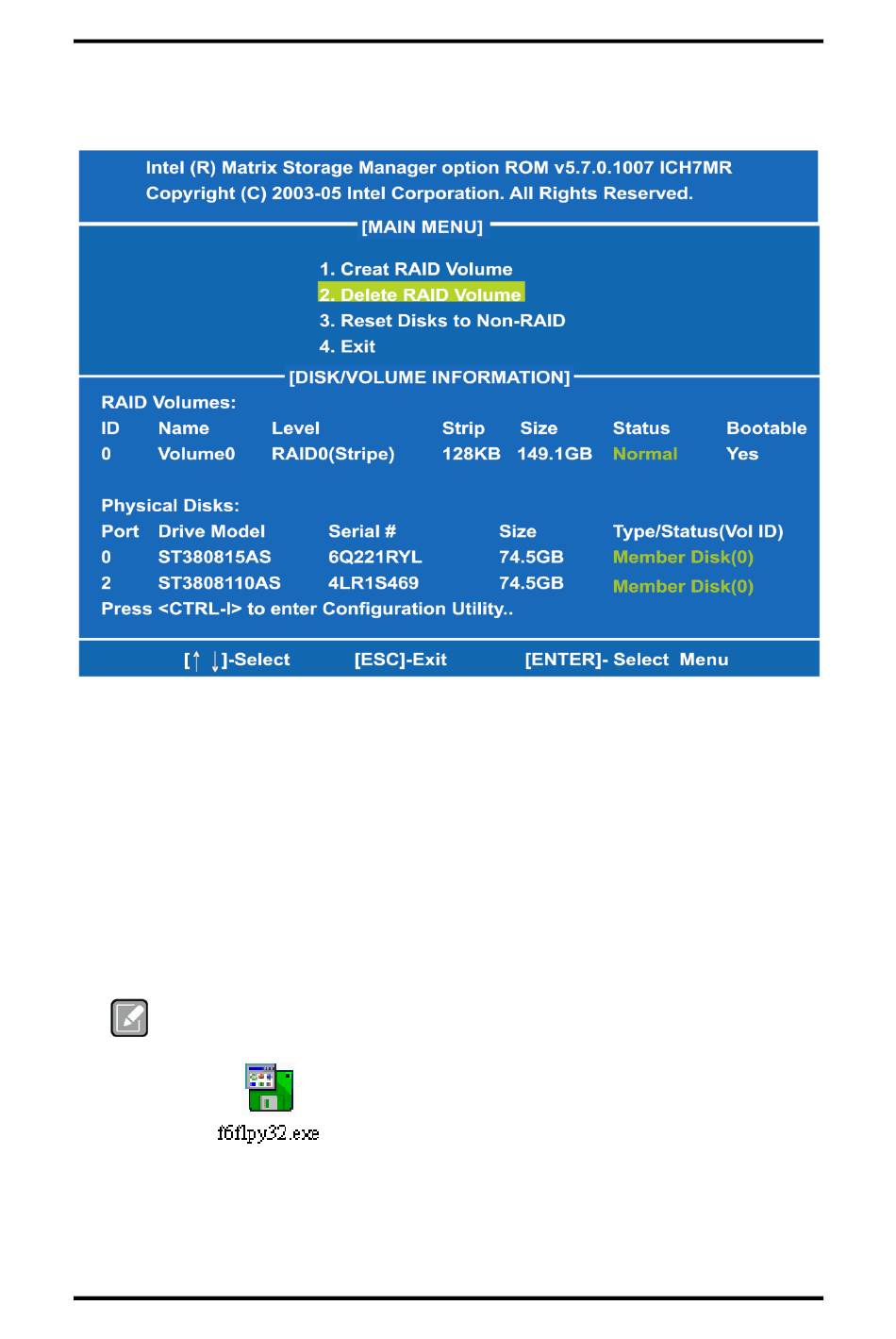

Delete RAID Volume

If you want to delete a RAID volume, select the Delete RAID Volume option in Main Menu.

Press ENTER and follow on-screen instructions.

Please press [ESC] to exit the ICH7MR RAID BIOS utility.

Now, you can proceed to install a SATA controller and the operating system.

(4) Making a SATA Driver Disk

To install the operating system onto a serial ATA hard disk successfully, you need to install the

SATA controller driver during the OS installation. Without the driver, the hard disk may not be

recognized during the Windows setup process. First of all, please format a blank floppy disk.

Secondly, follow up these steps below to produce a SATA driver disk.

(4)-1 Users can insert the Driver CD and the formatted blank floppy disk in another system.

And then, please execute the f6flpy32.exe file in the folder of the Driver CD.

Please execute the f6flpy64.exe file, if installing 64-bit Windows Operating

System.

Note

Configuring SATA for RAID Function
