Figure 4-20. Typical Serial-To-Tcp/Ip Converter (Activated); Figure 4-21. Typical Microlok Ii Development System Communications Pop-Up - Hitachi TransPortal Installation, Operation, Troubleshooting

TransPortalTM Interlock Monitor
2. Open TCP-Com (See Figure 4-18.) and select "Activate." See Figure 4-20.

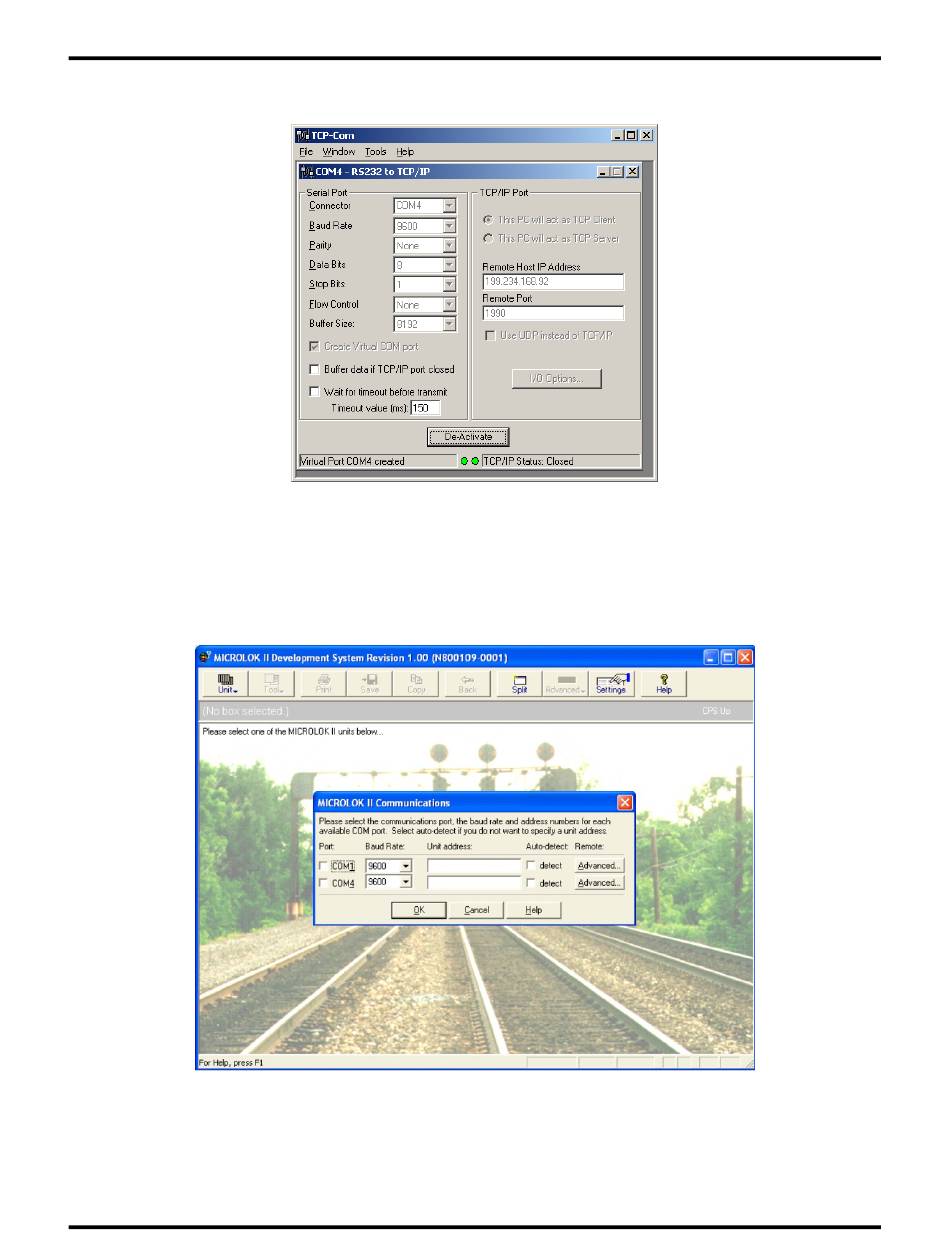

Figure 4-20. Typical Serial-to-TCP/IP Converter (Activated)

3. Launch the "Dev Tool" on the computer desktop. The communications pop-up
will appear. See Figure 4-21.
Figure 4-21. Typical M Development System Communications Pop-up
ICROLOK II
