4. Configure the converter, typically as shown in Figure 4-18 and Figure 4-19. The
IP address data shown is typical; enter the specific data for this TIM application.

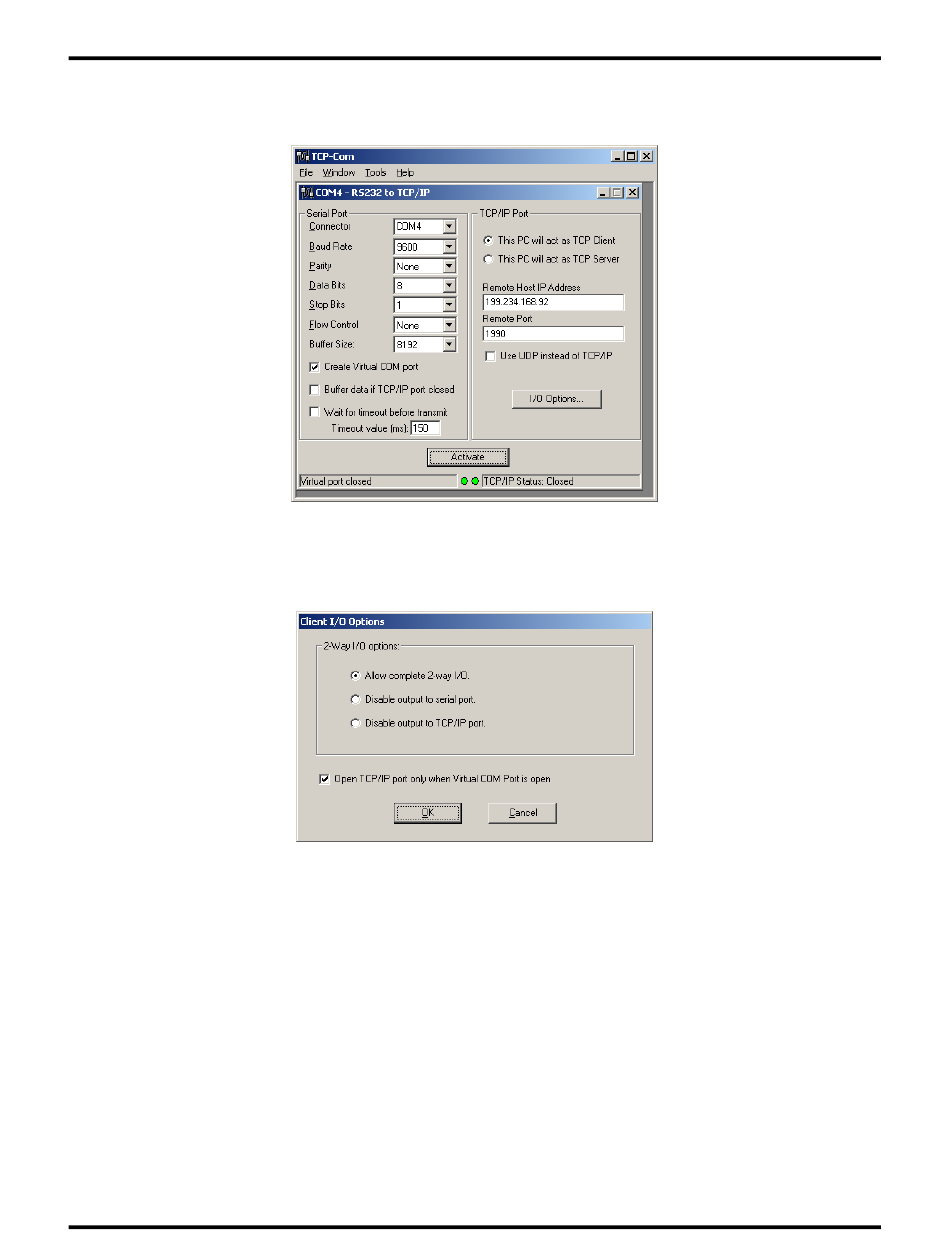

Figure 4-18. Typical Serial-to-TCP/IP Converter Configuration

Figure 4-19. Typical Serial-to-TCP/IP Converter I/O Options Configuration

4.4.1.2. Running the M
All features of the MLK Development System (also referred to as "Dev Tool") for this
TIM application are now available. To access the "Dev Tool", proceed as follows.
1. Connect the computer to Ethernet port ETH0 (typical) on the TIM. If required,
configure the computer for this TIM application (Refer to Section 4.4.1.1).
Copyright 2019
Development System
ICROLOK II
SM-1H1.0002 Rev. 2, March 2019
TransPortalTM Interlock Monitor
4-21
