INTRODUCTION

The Hitachi Rail STS USA, Inc. (STS USA) TransPortal™
comprehensive status monitoring and reporting device capable of remotely monitoring
the STS USA M
ICROLOK
locations where timely on-site access to the MLK is a concern.
This document contains information for the installation, setup, and use of a TIM.
STS USA is committed to providing support and assistance to assure that the quality
and the functionality of both the equipment and the network exceeds your expectations.
In fulfilling that objective, we encourage you to contact us regarding any difficulties or
additional needs you may encounter. The STS USA technical support organization is
available 24 hours per day at (800) 652-7276 (See Section 5).

2.1. TransPortal Interlock Monitor

The MLK constantly checks system operational parameters and maintains an internal
log file of important event, warning, and error conditions. Maintainers and technicians
typically need to use the M
laptop computer connected at the MLK) to view and react to these logged indications.
Where timely access to remote MLK locations is not practical, the TIM may be used to
1
TransPortal™ is a trademark of Hitachi Rail STS USA, Inc.
2 ®
M is a registered trademark of Hitachi Rail STS USA, Inc.
ICROLOK
Copyright 2019
®2
controller (MLK). The TIM is typically installed at field
II

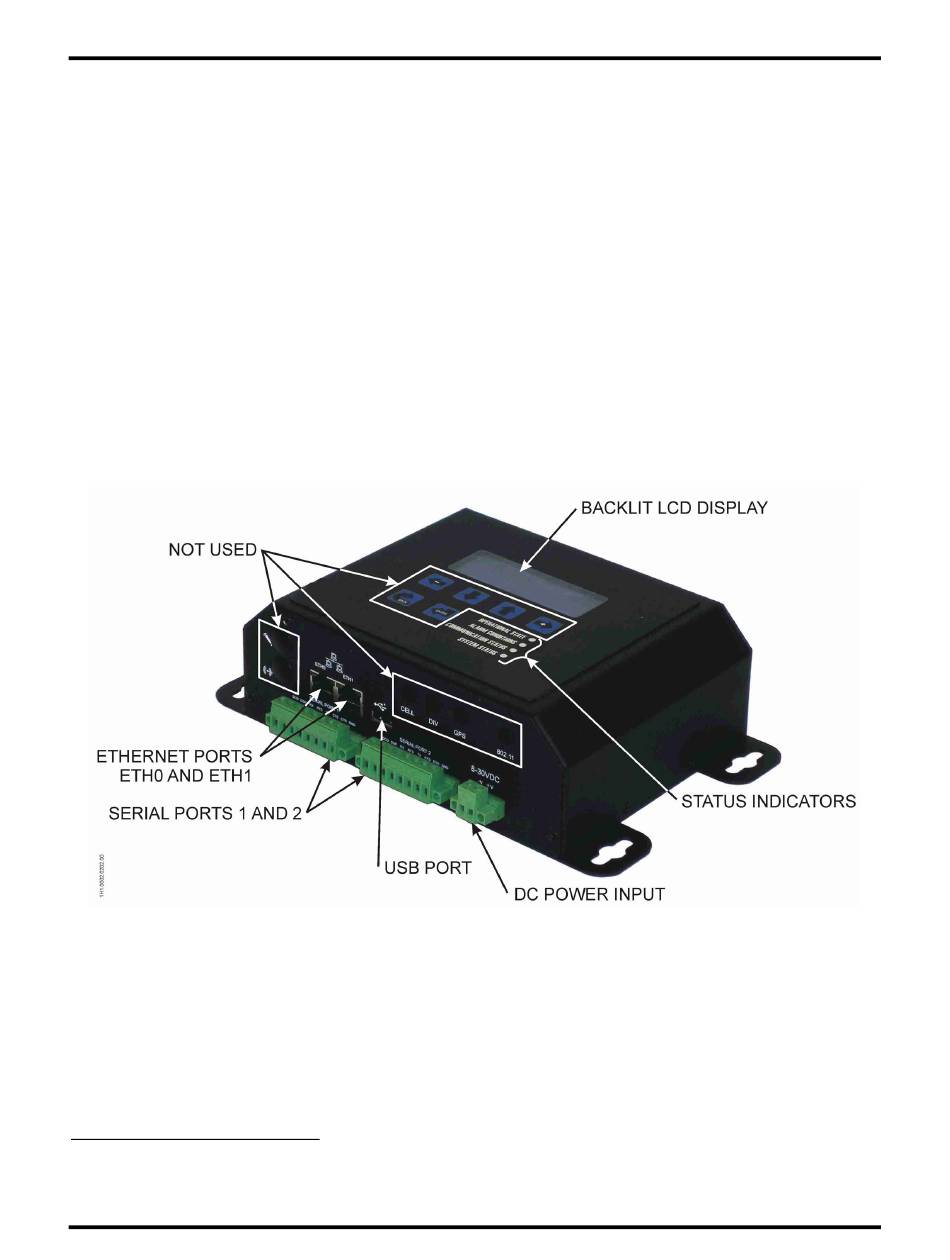

Figure 2-1. TransPortal Interlock Monitor
