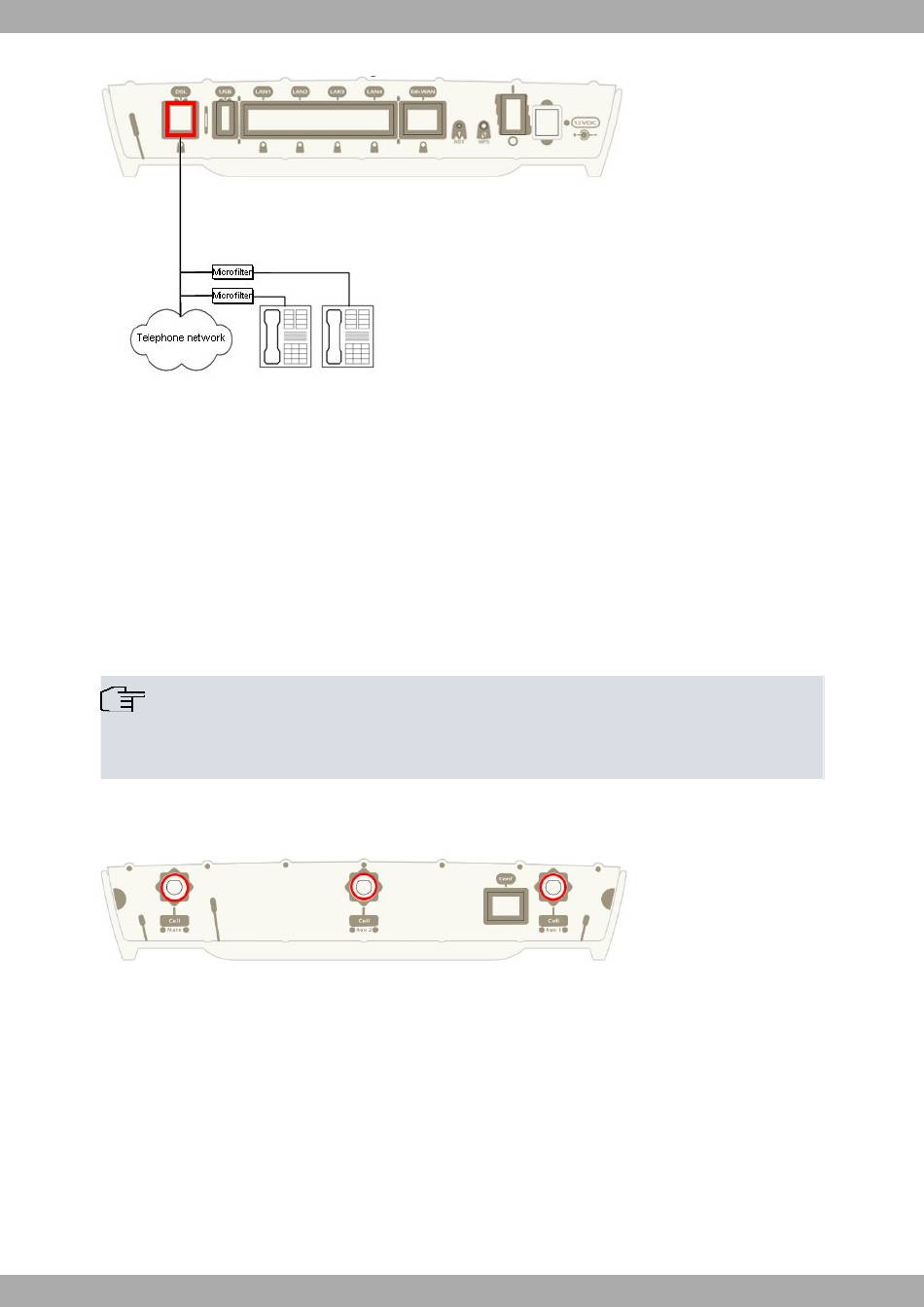

Fig. 15: ADSL installation with microfilters

3.6.4 WWAN Antenna Connection (Cell connector)

The Teldat Connect 104V has three connectors for WWAN Cellular antennas. To assemble and disassemble
(remove) the antennas, simply screw/unscrew them into/from the connectors labeled Cell, on the front panel of the
router.
Installing these antennas on the Teldat Connect 104V is essential to improve the quality of the signal received and
transmitted by the cellular model.
The router must have a plug-in Wireless WAN card and the corresponding software license to ensure operability.
The Wireless WAN module can be purchased at a later date. The manual accompanying this module provides in-
structions on installation, as well as for the corresponding antenna cables.
Note
For optimum performance, always install the WWAN/CELL antennas.
The cellular interface is only operative if you have installed the corresponding software license.
Some cellular telephony technologies use antenna diversity to improve the quality of the signal received (HSUPA,
CDMA EV-DO, LTE, etc.). For this reason, the Teldat Connect 104V router incorporates various WWAN connectors.
Fig. 16: WWAN Antennas
When the Main and Aux 1 antennas are not directly connected to the router, but are installed through extension
cords, the minimum distance between the two must be 7cm. Maximum recommended distance is 25cm.
For optimum performance, use the radio frequency accessories (antennas and cables) recommended by Teldat.
Teldat has a wide range of accessories (90º mount antennas, antennas for exterior installation, antennas for ceiling
installation, extension cables, etc.) to install the routers in different locations.
3.6.4.1 Placing the Antenna
The orientation of the antenna and its location with respect to other wireless devices and radiation sources (such as
communication devices, personal computers, etc.) can significantly influence device performance.
Antennas transmit and receive radio signals. Their performance is also affected by environmental factors (such as
