Rear panel elements
Item
A
B
C
D
E
F
G
H

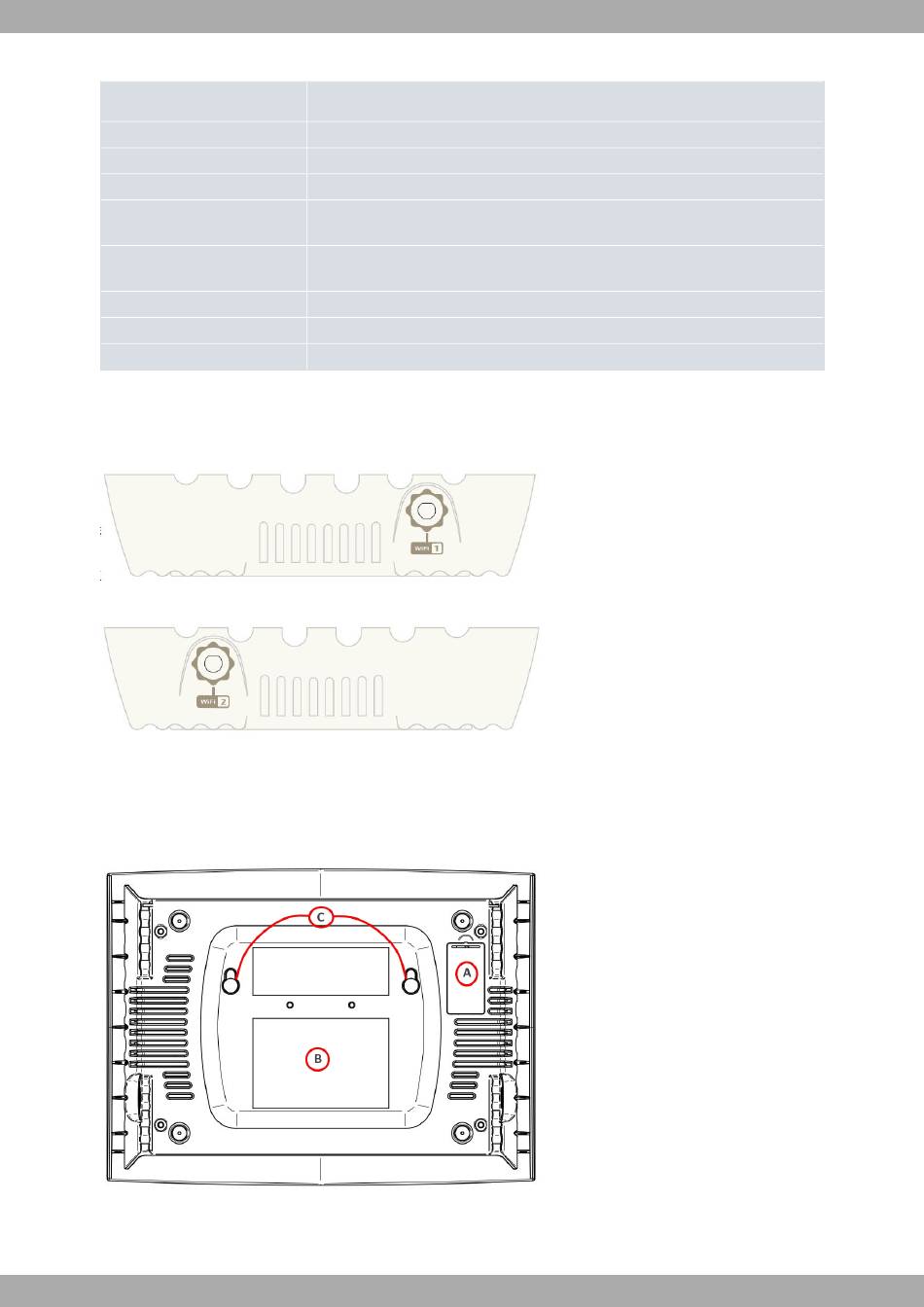

3.1.3 Side Panels

Each side panel contains one Wi-Fi antenna.
Fig. 3: Right side panel
Fig. 4: Left side panel

3.1.4 Bottom Panel

The following elements can be found on the bottom panel:
Fig. 5: Bottom panel
The main items on the bottom panel are as follows.
Teldat Router Connect-104V
Description
DSL. DSL connector.
USB. Slot to insert a 3G/WWAN USB modem.
4-port Gigabit Ethernet Switch.
RST. Reset button. Please see
formation on how the reset button works.
WPS (Wireless Protected Setup). This allows for an easy and secure configuration
of the Wi-Fi network parameters.
Eth WAN. Gigabit Ethernet WAN.
On/Off switch.
Power source connection (PSU).
RST Button on page 10 in this chapter for more in-
3 Components and Power Supply
