Teldat S.A.
Step 1: Install the two screws (3.5 x 30) horizontally and separately in a wall or any other vertical surface.
The screws should protrude 0.6 cm (0.25 inch) from the wall surface.
Warning
If you install the screws in drywall, use hollow-wall anchors (8 mm – 5/16 inch) to secure the screws. If
the screws are not properly anchored, the strain of the cables connected to the router back panel could
pull the router from the wall.
Step 2: Hang the router on the screws. (See Figure 9)
Note
• The accessories for wall mounting are not provided with the router and must be purchased separ-
ately.
• The wall-mounting accessories must be those recommended for the type of wall. You need to make
sure that they are able to support the weight of the router.
3.3 Plug-in Modules
Presently, only the 3G USB/WWAN module is supported. To view the full list of supported 3G/WWAN modules,
please visit the following website:
3.3.1 Installation
To install the USB modem, simply plug it in the USB slot (found on the rear panel), as shown in Figure 10.

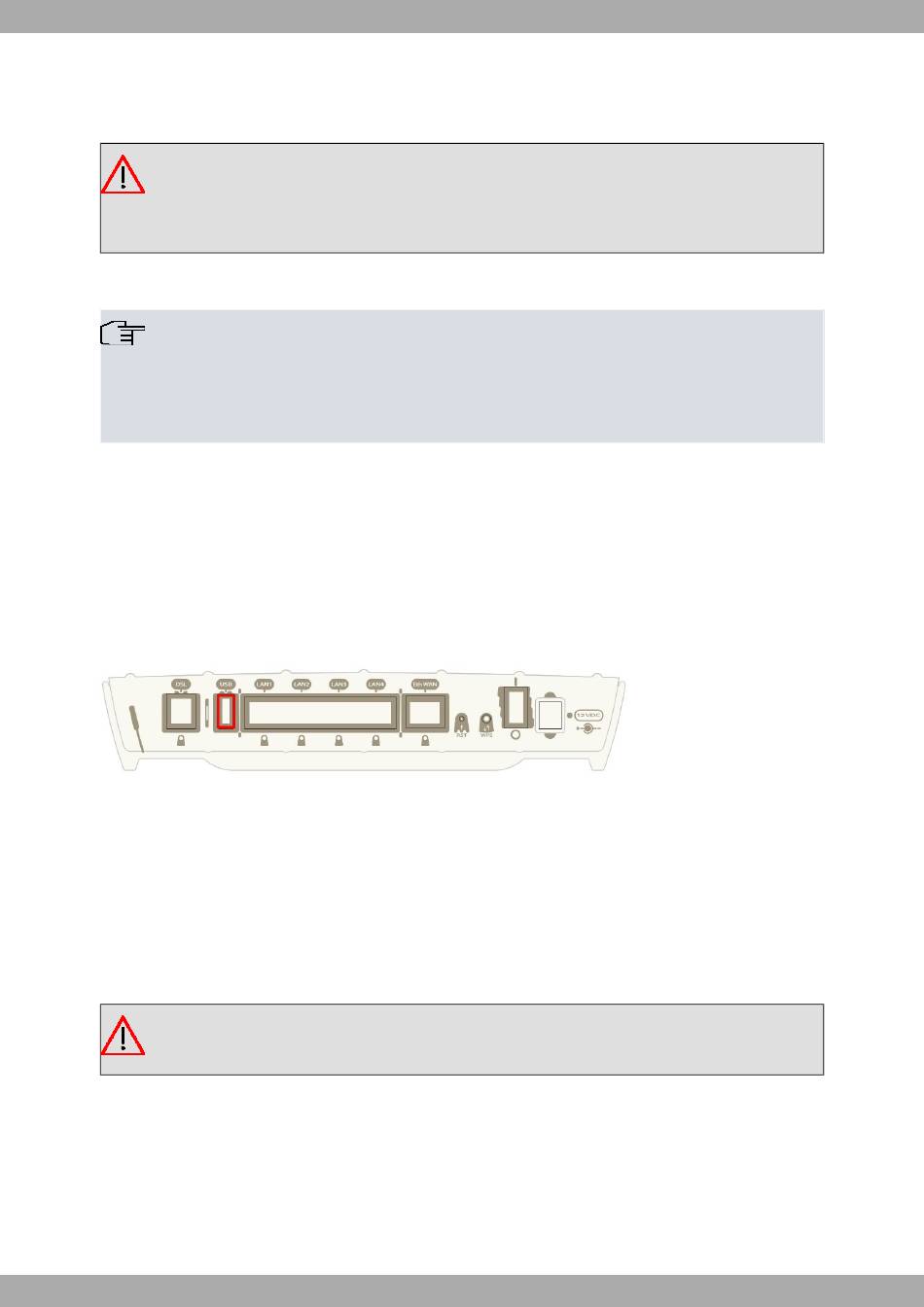

Fig. 10: USB modem insertion slot
3.3.2 Removal
To remove the device, simply unplug it from the slot where it is inserted. See Figure 10.
3.4 Power Source
The Teldat Connect 104V router is powered though an external AC/DC power source.
Warning
The equipment must be used with the power supply provided by the manufacturer, or equivalent.
Workplace conditions. Main characteristics
• Avoid humid and/or dusty locations.
• Avoid direct exposure to sunlight and other heat sources. Do not place the device amongst papers, magazines or
other items that could hinder natural air circulation.
• Do not place the device near strong electromagnetic fields such as those produced by speakers, motors, etc.
• Avoid knocks and/or strong vibrations during operation, storage and transport.
Teldat Router Connect-104V
www.teldat.com
.
3 Components and Power Supply
9
