Teldat S.A.

• The Power LED (green) lights up and the USB LED starts blinking (green). This blinking lasts for 10 seconds.

• To boot the device with the default configuration, let go of the RST button while the USB LED is still blinking (i.e.

before the 10-second period expires).

The router's default configuration establishes the following IP address and mask:

• IP address: 192.168.1.1

• IP mask: 255.255.255.0

Note

Some devices leave the factory with customized settings. This personalization can mean that the de-

fault configuration is different from the one shown above.

3.6 Connecting the data

The Teldat Connect 104V router has the following data connections:

The Teldat Connect 104V router incorporates a 4-port 10/100/1000 BaseT switch with automatic MDI/MDIX to con-

nect to a local area network (LAN).

Please pay careful attention to the labeling to avoid confusing the switch with other port types:

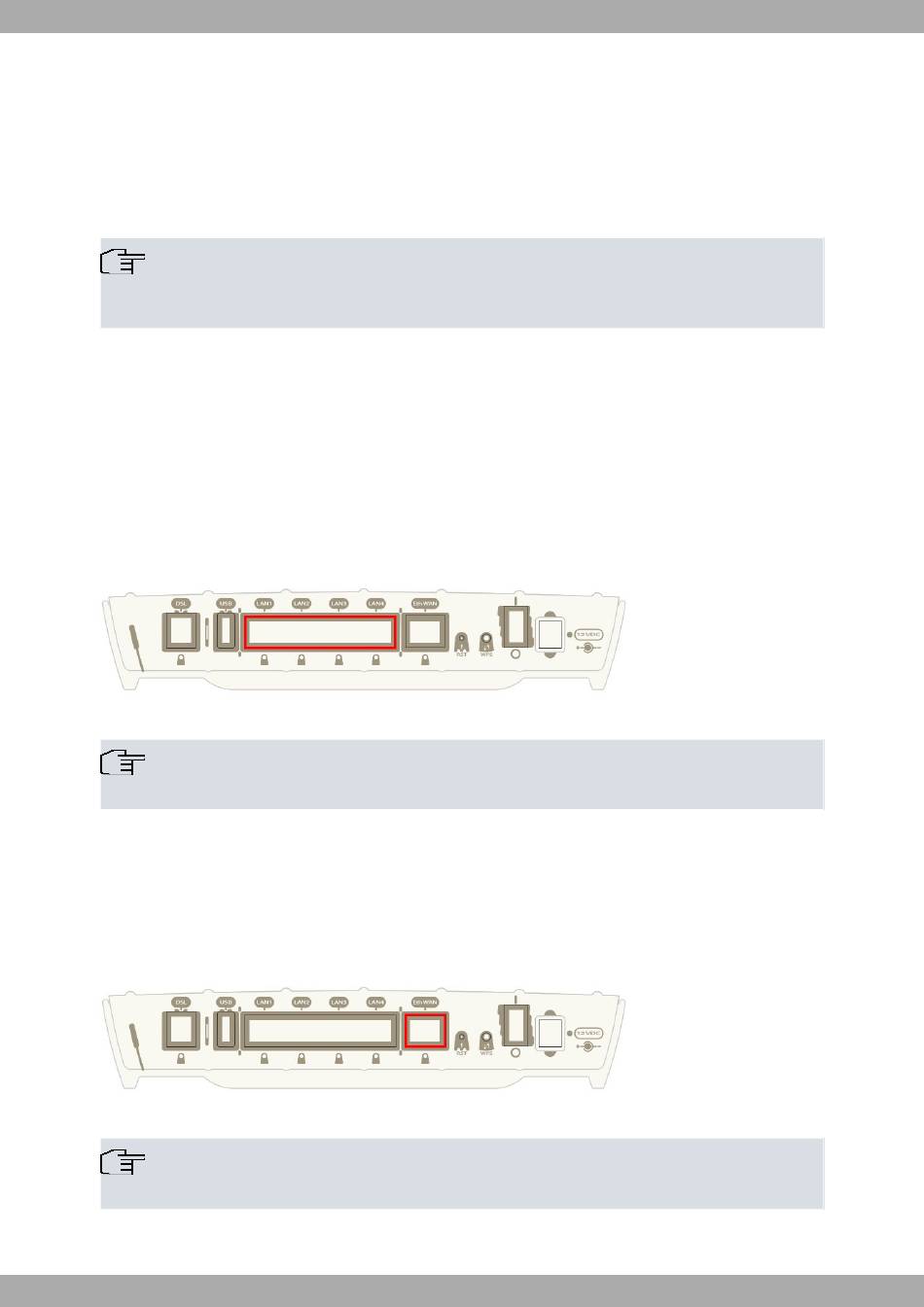

Fig. 11: LAN switch ports

Note

Only the LAN 1 connector is available during booting and in BIOS mode.

The Teldat Connect 104V router incorporates an Ethernet WAN 10/100/1000 BaseT port with automatic MDI/MDIX.

The WAN port is independent of the switch and is operated just like any other interface.

Please pay careful attention to the labeling to avoid confusing the switch with other port types.

Fig. 12: WAN port

Note

The Eth WAN connector is not operative during booting and in BIOS mode.

Teldat Router Connect-104V

3 Components and Power Supply
