3 Components and Power Supply
3.6.3 DSL Connection
The Teldat Connect 104V router has a DSL connector to connect to a VSDL2/ADSL network. The central pair of
this 4-wire female RJ11 connector is used for data transmission/reception.
For connection purposes, use the telephone cable with male RJ11 connectors provided with the router.

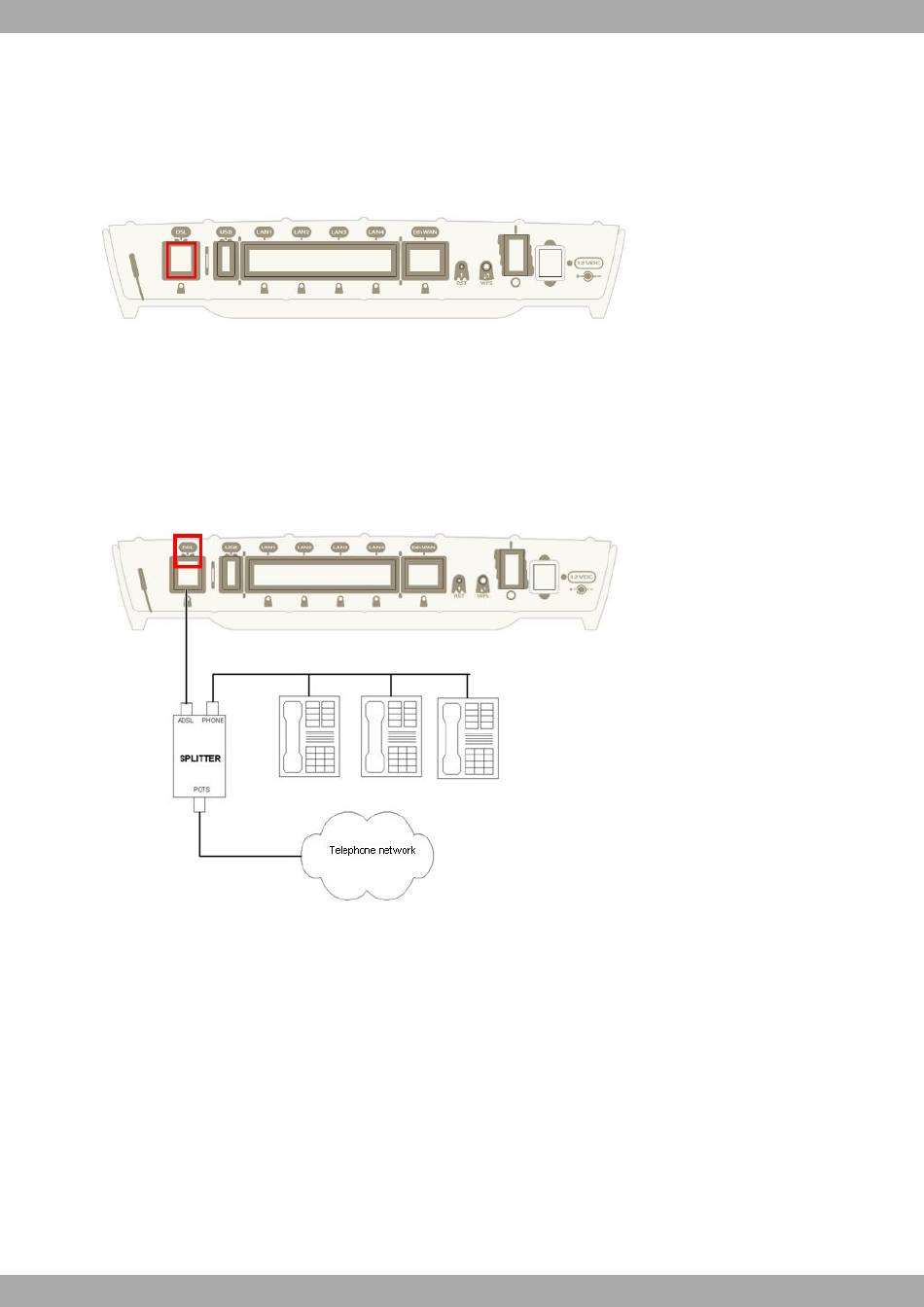

Fig. 13: DSL port (VDSL2/ADSL)
The splitter
By default, the supported modes do not allow the basic service device (PSTN or ISDN depending on the model) to
be directly connected to the same line; you need to use a splitter, a device that separates the basic service frequen-
cies band from those used by DSL, thus avoiding interferences between the telephone and DSL services.
A typical installation with a splitter is shown in Figure 14.
Fig. 14: ADSL installation with splitter
Microfilters
Some DSL operating modes (e.g., G.Lite or ITU G.922.2) can use basic service devices (PSTN or ISDN) connected
to the same line, by using a microfilter. This device ensures the DSL signal does not reach the basic service device
and undesired signals generated by the router do not interfere with the DSL signal.
A typical installation with microfilters is shown in Figure 15
12
Teldat S.A.
Teldat Router Connect-104V
