Industrial Electronic Devices

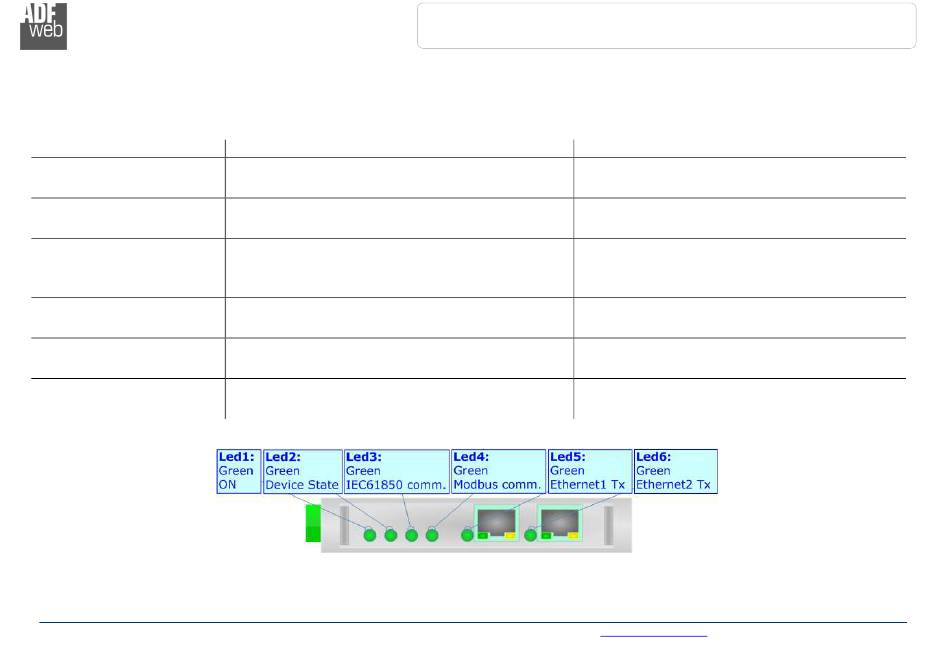

LEDS:
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: ON [supply voltage ]
(green)
2: Device State (green)
3: IEC61850 comm. (green)
4: Modbus comm. (green)
5: Ethernet1 Tx (green)
6: Ethernet2 Tx (green)
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
ON: Device powered
OFF: Device not powered
Blinks slowly (~1Hz)
ON: At least one IEC61850 Server is disconnected
Flashing: IEC61850 response
OFF: No IEC61850 response
Flashing: Modbus request
OFF: No Modbus request
Blinks when is transmitting Ethernet frames
Blinks when is transmitting Ethernet frames
User Manual IEC61850 Client / Modbus TCP Slave
Document code: MN67766_ENG
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
INFO:
www.adfweb.com
Revision 1.000
Page 9 of 28
Boot Mode
Phone +39.0438.30.91.31
