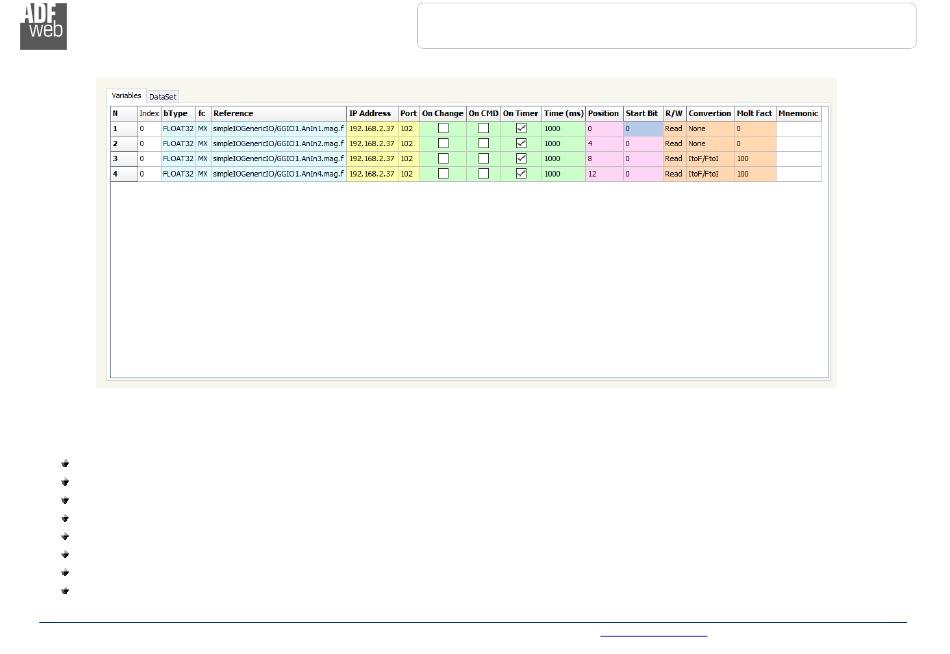

Figure 6: "Variables" section
The meanings of the fields are:
In the field "Index" the index of the server to which the IEC61850 variable belongs is defined;
In the field "bType" the data format of the IEC61850 variable is defined;
In the field "fc" the Functional Constraint of the IEC61850 variable is defined;
In the field "Reference" the path of the IEC61850 variable is defined;
In the field "IP Address" the IP Address of the server to which the IEC61850 variable belongs is defined;
In the field "Port" the Port of the server to which the IEC61850 variable belongs is defined;
If the field "On Change" is checked, the IEC61850 variable is sent when the data on Modbus TCP changes the value (only in write);
If the field "On CMD" is checked, the IEC61850 variable is sent when a Modbus TCP request is received (only in write);
