User Manual IEC61850 Client / Modbus TCP Slave
Document code: MN67766_ENG
Revision 1.000
Page 16 of 28
Industrial Electronic Devices
IEC61850 ACCESS:
By Pressing the
"IEC61850
Access" button from the main window for SW67766 (Fig. 2) the window "IEC61850 Client Set Access" appears
(Fig. 4).
This section is used to define the list of IEC61850 variables from/to which take/map the data of Modbus TCP.

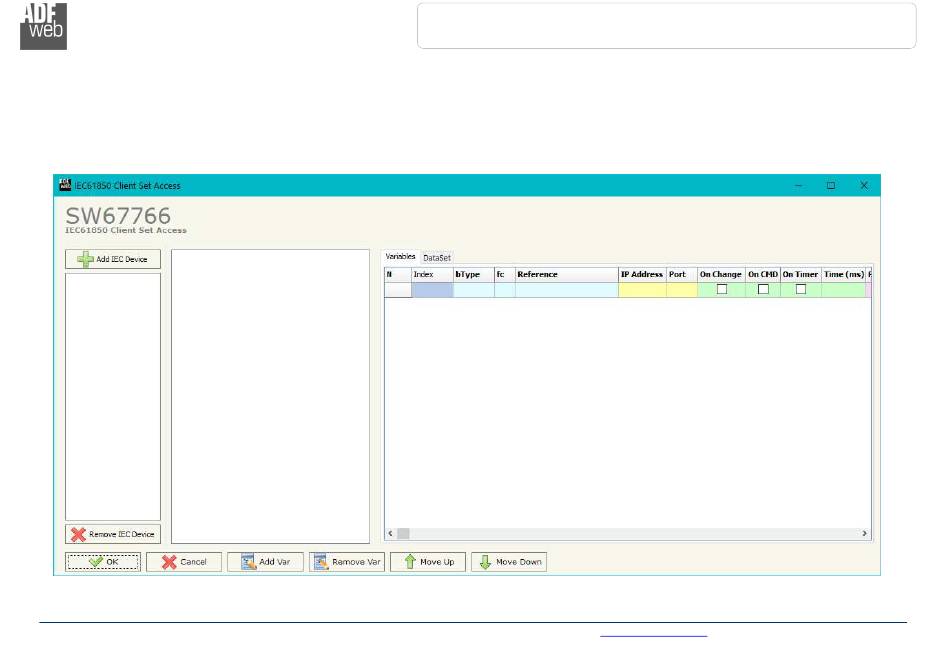

Figure 4: "IEC61850 Client Set Access" window
ADFweb.com Srl – IT31010 – Mareno – Treviso
INFO:
www.adfweb.com
Phone +39.0438.30.91.31
