Horizontal
90º
Stabilizer.

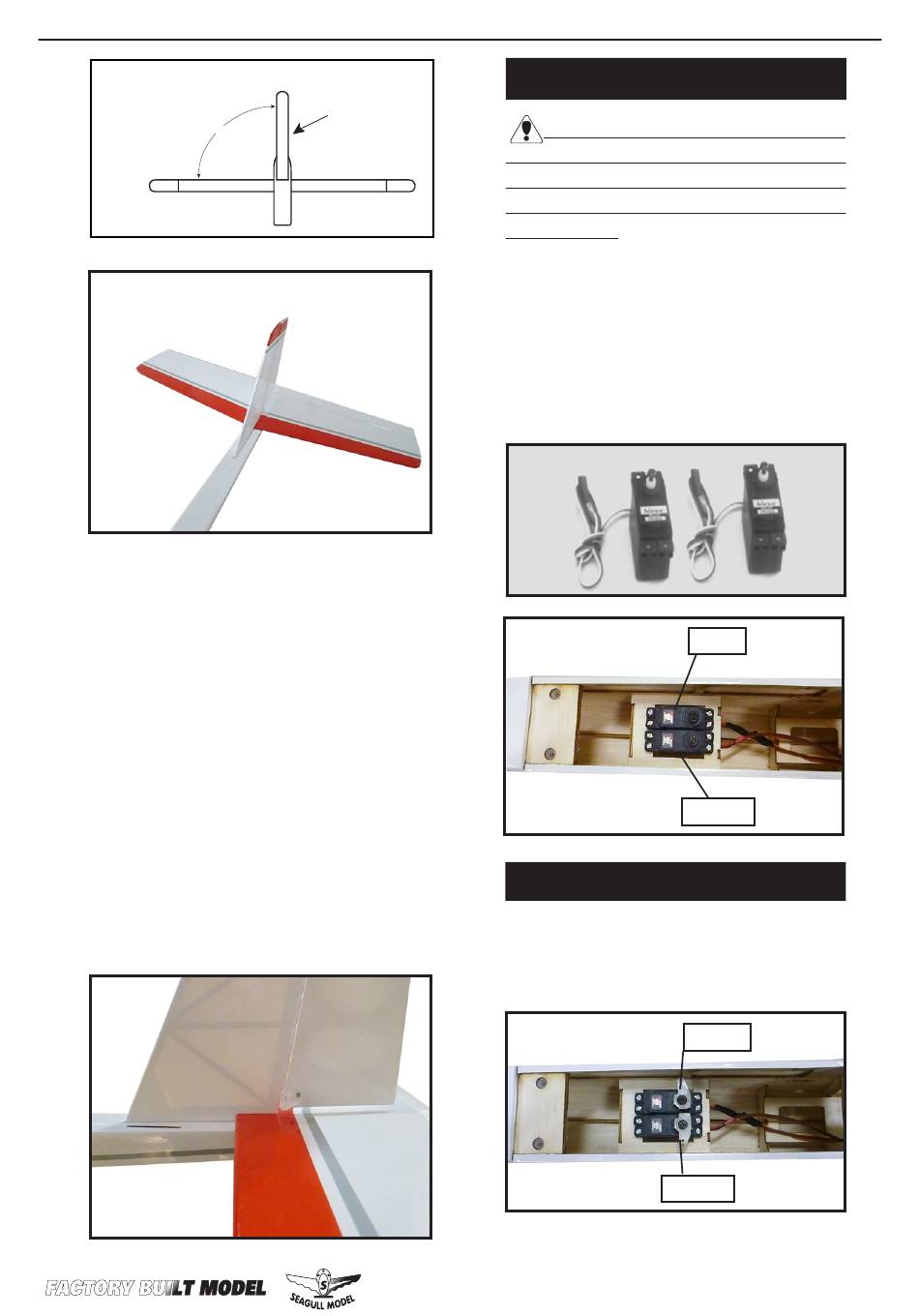

6) When you are sure that everything is
aligned correctly, mix a generous amount
of 30-minute epoxy. Apply a thin layer
to the mouting slot and to bottom of the
vertical stabilizer mounting area. Apply
epoxy to the bottom and top edges of the
filler block and to the lower hinge also. Set
the stabilizer in place and realign. Dou-
ble check all of your measurments once
more before the epoxy cures. Hold the
stabilizer in place with T-pins or masking
tape and remove any excess epxy using a
paper towel and rubbing alcohol. Allow
the epoxy to fully cure before proceeding.
WWW.SEAGULLMODELS.COM
Vertical
Stabilizer.
INSTALLING THE FUSELAGE SERVOS.
Because the size of servos differ, you
may need to adjust the size of the precut
opening in the mount. The notch in the
sides of the mount allow the servo lead to
pass through.
1) Install the rubber grommets and brass
collets onto the fuselage servo. Test fit the
servo into the aileron servo mount.
2) Secure the servos with the screws pro-
vided with your radio system.
SERVO ARM INSTALLATION.
Install adjustable servo connector in the
servo arm as same as picture below:
Elevator.
.
Rudder.
Elevator.
Rudder.
7
