Page 18 of 150
Description
LMI/LMX Multi-I/O Cable Assembly

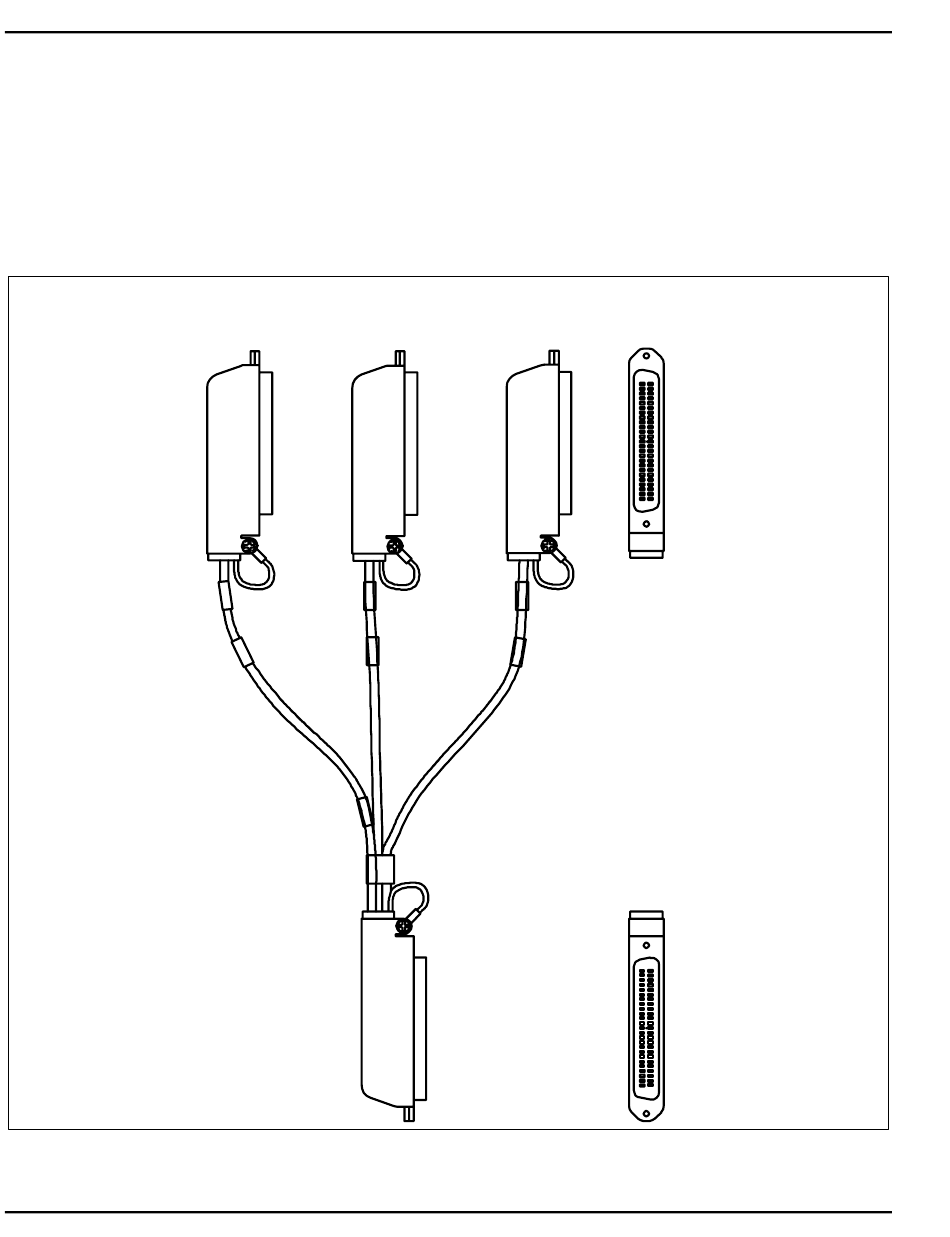

Figure 6
LMI/LMX Multi-I/O cable assembly (NT5D86
P2
P0914209 Standard 3.00 April 2000
The LMI/LMX Multi-I/O Cable Assembly (NT5D86) provides the local site
interface between the LMI and up to three LMXs. This cable carries the
DS-30X and MMI interfaces. See "LMI/LMX Multi-I/O cable assembly" on
page 129 for pin-out information.
LMX 0
LMX 1
P3
Second of
two slots
for the
LMI
)
LMX 2
P4
P1
