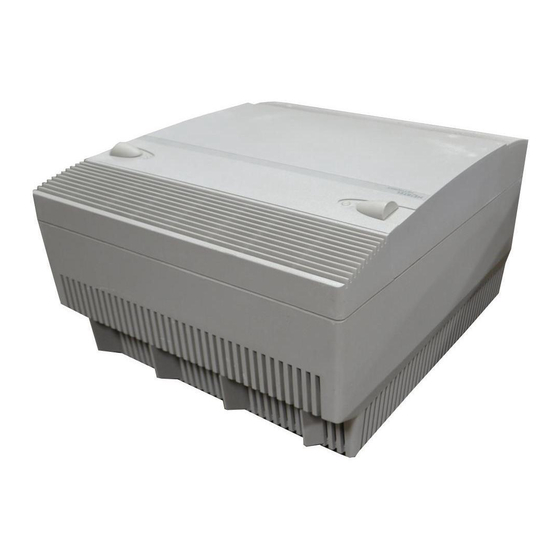

Meridian 1
Option 11C
Planning and Installation Guide
Document Number: 553-3021-210
Document Release: Standard 7.00
Date: January 2002
Year Publish FCC TM
Copyright © 1996 – 2002 Nortel Networks
All Rights Reserved
Printed in Canada
Information is subject to change without notice. Nortel Networks reserves the right to make changes in design
or components as progress in engineering and manufacturing may warrant. This equipment has been tested
and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC rules, and the
radio interference regulations of Industry Canada. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at their own expense.
Meridian 1 and Option 11C are trademarks of Nortel Networks.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Meridian 1 Option 11C and is the answer not in the manual?

Questions and answers

Related Manuals for Nortel Meridian 1 Option 11C

Summary of Contents for Nortel Meridian 1 Option 11C

  • Page 1 All Rights Reserved Printed in Canada Information is subject to change without notice. Nortel Networks reserves the right to make changes in design or components as progress in engineering and manufacturing may warrant. This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC rules, and the radio interference regulations of Industry Canada.
  • Page 3 Page 3 of 408 Revision history January 2002 Standard 7.00. This global document is up-issued to include updates and changes required for Release 25.40. December 2000 Issue 6.00, Standard. This global document is up-issued to include updates and changes required for Option 11C IP Expansion with Release 25.3x software.
  • Page 4 Page 4 of 408 The General Information and Planning Handbook (553-3021-200), Standard 1.0 and the Installation Guide (553-3021-210), Standard 1.0 were combined to form the Planning and Installation Guide. Also contained were sections (those pertaining to a new installation) from the Software Installation Program Guide (553-3021-310), Standard 1.0.

  • Page 5: Table Of Contents

    Page 5 of 408 Contents About this guide ......Overview of the Option 11C ....Equipment identification .
  • Page 6 Page 6 of 408 Installing power fail transfer units ... . 181 Installing the circuit cards ....187 Installing and connecting reserve power supplies 199 Installing and connecting SDI and ethernet ports .

  • Page 7: About This Guide

    The Option 11C Planning and Installation (553-3021-210) is intended for Meridian 1 Option 11C new system planning and installation personnel. This Nortel Networks Publication (NTP) is a useful reference tool for first-time installations as it provides valuable information for the planning and installation of the Option 11C system.
  • Page 8 Page 8 of 408 About this guide 553-3021-210 Standard 7.00 January 2002...

  • Page 9: Reference List

    Page 9 of 408 Overview of the Option 11C Contents This section contains information on the following topics: Reference list ..........General information .

  • Page 10: Overview Of The Option 11C

    Page 10 of 408 Overview of the Option 11C Design and architecture The Option 11C is a small wall- or floor-mounted digital system which can be configured as a system with up to five cabinets. Up to four expansion cabinets can be connected to the main cabinet using fiber optic cable or 100BaseT/F cable.
  • Page 11 Overview of the Option 11C Page 11 of 408 Administration telephone If the default model layouts for telephones and trunk routes are used, an administrative telephone is all that is required to make adjustments to such things as the numbering plan and access codes. A TTY input terminal is not required for programming the Option 11C unless a custom layout is used.

  • Page 12: Fully Featured

    Page 12 of 408 Overview of the Option 11C The advantage of multiple-terminal access is that it allows for more efficient programming and maintenance of the Option 11C, especially when system cabinets are located up to 3 km (1.8 MI) apart. Meridian Mail The specially designed Meridian Mail comes pre-configured with mailboxes already setup for pre-programmed extensions.

  • Page 13: Increased Digital Trunking/Sdi Capacity

    Overview of the Option 11C Page 13 of 408 Increased Digital Trunking/SDI Capacity This development provides increased networking capacity for the Option 11C and Option 11C Mini systems. Digital trunks can now be supported in any IP Expansion Cabinet or Mini main chassis, when connected via 100BaseT or 100BaseF.

  • Page 14: Survivable Ip Expansion Cabinets

    Full feature functionality, and non blocking architecture is maintained when Option 11C systems are distributed over high performance data networks. This patented solution delivers the exceptional functionality and reliability of Meridian 1 Option 11C, while delivering the benefits of voice/data convergence. Support of Option 11C Mini Cabinetry...

  • Page 15: Equipment Identification

    Page 15 of 408 Equipment identification Contents This section contains information on the following topics: General information ........Cabinets .
  • Page 16 Page 16 of 408 Equipment identification Cabinets The NTAK11 Cabinet is used for both main and expansion cabinets. The cabinet faceplate has been updated for Release 25.2x. Figure 1 NTAK11 Cabinet Cable connectors Connectors for cables to the cross-connect terminal and SDI ports are found at the bottom of each cabinet.
  • Page 17 Equipment identification Page 17 of 408 Figure 2 Cable connections Cooling The NTAK11 cabinet is designed to permit natural convection cooling. CAUTION Make sure ventilation to the cabinets is not obstructed. Option 11C Planning and Installation Guide...
  • Page 18 Page 18 of 408 Equipment identification Power supplies Two types of power supply are available for the system: • The NTAK04 or NTDK78 AC/DC power supply (see Figure 3 on page 18). • The NTAK05 or NTDK72 DC power supply is used when the cabinet is powered by a -52 V dc source.
  • Page 19 Equipment identification Page 19 of 408 Reserve power CAUTION If the NTAK04 or NTDK78 AC/DC power supply is powered down while it is operating on DC reserve power from a battery backup unit, the Option 11C system cannot be powered up again until AC power is restored.
  • Page 20 Page 20 of 408 Equipment identification Figure 4 NTAK75 battery box • The NTAK76 battery box (shown in Figure 5 on page 21) provides a minimum of 15 minutes of reserve DC power. 553-3021-210 Standard 7.00 January 2002...
  • Page 21 Equipment identification Page 21 of 408 Figure 5 NTAK76 battery box • An UnInterruptible Power supply (UPS) for continuous AC power supply. Note: Customer-supplied battery backup units can be connected to the cabinets using an NTAK28 Junction Box. Common equipment circuit cards The circuit cards described in this section are used in the Option 11C Main cabinet and IP Expansion cabinets where indicated.
  • Page 22 Page 22 of 408 Equipment identification Software Daughterboards The latest version of the Software Daughterboard is: • The NTTK25AA, which provides 48 Mb of memory. IP Daughterboards For IP connectivity, four new IP daughterboards are available: • The NTDK83 dual port 100BaseT •...
  • Page 23 Equipment identification Page 23 of 408 Figure 7 The NTTK02 IP Daughterboard Figure 8 The NTDK99 Daughterboard Option 11C Planning and Installation Guide...
  • Page 24 Page 24 of 408 Equipment identification Figure 9 The NTTK01 Daughterboard Fiber Daughterboards There are five types of Fiber Expansion Daughterboards; three single port and two dual port: • The NTDK22 Single Port Fiber • The NTDK24 Single Port Fiber •...
  • Page 25 Equipment identification Page 25 of 408 Figure 10 Daughterboards and Security Device on the NTDK20 SSC card Software Daughterboard Security Device Fiber Expansion Daughterboard in top connector (Fiber 1) Fiber Expansion Daughterboard in bottom connector (Fiber 2) NTAK02 SDI/DCH card This optional SDI/DCH card provides four SDI ports for various applications.
  • Page 26 Page 26 of 408 Equipment identification ISDN and Digital Trunk Interface Table 1 Common equipment packs and daughterboards supported in Option 11C IP cabinets Pack Daughterboard Supported Application 1.5MB DTI/PRI (NTAK09) DCHI (NTAK93) non-downloadable downloadable DCH DDCH (NTBK51) Clock controller (stratum 3/4) CC (NTAK20) 1.5MB TMDI (NTRB21) CC (NTAK20)
  • Page 27 Equipment identification Page 27 of 408 Fiber Expansion Daughterboard Single Port Fiber Expansion Daughterboard The Single Port Fiber Expansion Daughterboards and their Fiber Receiver counterparts are: • The NTDK22 Fiber Expansion Daughterboard. Its Fiber Receiver card counterpart is the NTDK23. •...
  • Page 28 Page 28 of 408 Equipment identification Figure 12 The NTDK24 Daughterboard Dual Port Fiber Expansion Daughterboard The Dual Port Fiber Expansion Daughterboards and their Fiber Receiver counterparts are: • The NTDK84 Dual Port Fiber Expansion Daughterboard. Its Fiber Receiver card counterpart is the NTDK23. •...
  • Page 29 Equipment identification Page 29 of 408 Figure 13 The NTDK84 Daughterboard Figure 14 The NTDK85 Daughterboard Option 11C Planning and Installation Guide...
  • Page 30 Page 30 of 408 Equipment identification Peripheral equipment cards The following Intelligent Peripheral Equipment (IPE) cards can be used in the Option 11C Main and IP Expansion cabinets: • NT1R20 Off-Premise Station (OPS) Analog line card • NT8D02 Digital line card •...
  • Page 31 Equipment identification Page 31 of 408 • M2616 or M2216 Central Answering Position (CAP). This telephone must be equipped with an ACD LCD display in order to function as a CAP telephone. • Meridian 2250 (TCM) attendant consoles. Cables and wires Table 2 Cable and wire specifications (Part 1 of 3) Cables and wires...
  • Page 32 Page 32 of 408 Equipment identification Table 2 Cable and wire specifications (Part 2 of 3) Cables and wires Purpose/description A0817052 MT-RJ to ST cable (5 m) Connection between the Main and IP Expansion cabinets using 100BaseF IP daughterboards. AO817055 MTRJ to MTRJ (10m) 100BaseF connection between main and expansion cabinets.
  • Page 33 Equipment identification Page 33 of 408 Table 2 Cable and wire specifications (Part 3 of 3) Cables and wires Purpose/description NTBK05CA coax cable Provides DTI/PRI connections. NTBK05DA twisted pair cable Brings Tx and Rx pairs to a standard 5 pin NTAK10 2.0 Mb DTI cable connector.
  • Page 34 Page 34 of 408 Equipment identification • additional Modem Eliminator (NULL Modem without hardware handshaking) A0601397 converter may be required to interface the DTE to the system. • EMC Grounding Clip is required, for EMC compliance, on the front stiffener rail of the IP cabinet. Refer to Figure 15 on page 34 for further details.
  • Page 35 Page 35 of 408 System and site requirements Contents This section contains information on the following topics: Reference list ..........General information .

  • Page 36: General Information

    Environmental requirements The Meridian 1 Option 11C system is designed to operate in an office environment that meets the following general conditions: • The room is clean and well ventilated. Each cabinet can dissipate up to 500 Watts of power in the form of heat (1700 BTU [1800 kJ] per hour).

  • Page 37: Earthquake Bracing Requirements

    System and site requirements Page 37 of 408 • The humidity is maintained between 5% and 95% non-condensing. • The location selected to mount the equipment is not subject to constant vibration. • The equipment is located at least 12 ft (3660 mm) away from sources of electrostatic, electromagnetic or radio frequency interference.
  • Page 38 Page 38 of 408 System and site requirements Table 3 identifies the maximum allowable wall height in earthquake prone areas for various types of stud wall construction. Table 3 Minimum wall requirements – stud construction Wall Studs Spacing off center Maximum Height of Wall 2 in.

  • Page 39: Grounding Requirements

    System and site requirements Page 39 of 408 Grounding requirements WARNING Failure to follow grounding recommendations may result in an installation that is: • unsafe for personnel working on, or using the equipment • not properly protected from lightning or power transients •...
  • Page 40 Page 40 of 408 System and site requirements • All ground conductors in the building: — must be isolated from the neutral bus except at the service entrance to the building — must be hardwired to the main ground reference. •...

  • Page 41: Grounding Method

    System and site requirements Page 41 of 408 Ground bus isolation It is permitted in the USA under the exception to article 384-20 in the NEC to isolate a panel’s ground bus from the housing, provided the panel concerned is not at the main service entrance. This is also permitted in some Canadian locations.

  • Page 42: Conduit Requirements

    Page 42 of 408 System and site requirements Three grounding scenarios are possible: • A single-cabinet system • A two- to five-cabinet system powered by the same service panel • A two- to five-cabinet system powered by different service panels. Single-cabinet system or cabinets powered by one service panel For each system cabinet, a #6 AWG (#40 Metric Wire Gauge) ground wire is connected from the cabinet to the NTBK80 ground bar provided.

  • Page 43: Commercial Power Requirements

    System and site requirements Page 43 of 408 • Metallic conduit is liable to corrode over time, particularly at threaded connections. Such corrosion will increase resistance significantly. This problem is compounded when multiple links are involved. Application(s) of paint over the conduit may accelerate the corrosion process.

  • Page 44: Ac-Powered Installation

    Page 44 of 408 System and site requirements AC-powered installation It is recommended that a dedicated AC service panel be used with the Option 11C system. Equipment unrelated to the Option 11C must not be connected to this panel. Keep all lighting, fans, motors, air conditioning equipment, and the like, as “electrically separate”...

  • Page 45: Alternative Ac-Powered Installation

    System and site requirements Page 45 of 408 • Insulated copper ground conductor Connects the ground bus in the dedicated panel to the main service panel ground or building ground reference. It must always be routed through the same conduit as the supply conductors feeding the panel. •...
  • Page 46 Page 46 of 408 System and site requirements Isolation transformer ground It is recommended that the transformer ground have the following characteristics: • Separate grounds for primary and secondary windings rather than common ground • A “clean” and permanent SPG reference at the transformer secondary for the Option 11C system.
  • Page 47 System and site requirements Page 47 of 408 Installing an Isolation Transformer Transformers with pluggable power cords: Connect the power cords of all Option 11C system equipment to the outlets on the transformer secondary. Secure an insulated conductor between the ground lug on the main cabinet of the Option 11C and the SPG lug on the transformer.
  • Page 48 Page 48 of 408 System and site requirements Figure 16 Typical pluggable cord isolation transformer wiring plan 553-3021-210 Standard 7.00 January 2002...
  • Page 49 System and site requirements Page 49 of 408 Transformers without pluggable power cords If the transformer does not have a pluggable cord, it must be hardwired to an electrical panel, and all wires (including grounds) must be routed through a single conduit.
  • Page 50 Page 50 of 408 System and site requirements Figure 17 Typical hardwired isolation transformer wiring plan 553-3021-210 Standard 7.00 January 2002...

  • Page 51: Dc-Powered Version

    System and site requirements Page 51 of 408 DC-powered version Each Option 11C cabinet may be powered solely from a DC source if it is equipped with the following: • NTAK05 or NTDK72 DC power supply • NTAK28 Junction box. Table 6 DC power requirements for each NTAK05 or NTDK72 DC power supply Minimum...
  • Page 52 Page 52 of 408 System and site requirements The minimum size of the conductors required between the DC source and the Junction box is shown in Figure 7 on page 52. Table 7 Recommended wire size Size (AWG) Size (Metric) Maximum Length (one way) 50 ft (15 m) 30 ft (9 m)

  • Page 53: Auxiliary Equipment Power

    System and site requirements Page 53 of 408 Figure 18 DC power supply connections Auxiliary equipment power Terminals, printers, modems, and other data units used in conjunction with the Option 11C require special wiring considerations. Power for system equipment in the switch room must: •...

  • Page 54: Modem Requirements

    With or without Meridian Mail The minimum requirement is a 1200 bps auto-answer modem. If an error-correcting modem is connected to the Meridian 1 Option 11C system, all flow-control and error-correcting functionality of the modem must be disabled to ensure proper operation. Refer to the modem manufacturer’s instructions for information.

  • Page 55: Remote Access

    System and site requirements Page 55 of 408 A variety of TTY terminals can be used to access the Option 11C. However, a VT220 terminal is recommended as an on-site terminal. It can be used to perform service changes, maintenance and diagnostic functions, as well as Meridian Mail administration activities.

  • Page 56: 100Basef Daughterboards

    Page 56 of 408 System and site requirements 100BaseF daughterboards The 100BaseF expansion cabinets can be located up to 2km from the Option 11C Main cabinet or customer-supplied LAN equipment. 100BaseT daughterboards IP Expansion cabinets equipped with 100BaseT or 100BaseF daughterboards, can be located up to 100m from the Main Option 11C cabinet or customer supplied LAN equipment.
  • Page 57 System and site requirements Page 57 of 408 Follow the guidelines below to assist you in positioning the system equipment. If you plan on installing one or more expansion cabinets, read the section called “Additional considerations for multiple-cabinet systems” on page 58.
  • Page 58 Page 58 of 408 System and site requirements • Do not place the cross-connect terminal above a cabinet. Debris from the cross-connect terminal may drop into the cabinet through the top ventilation slots and cause damage. • Allow adequate space for the battery backup unit, accounting for the cable-length limitation as determined by the choice of a wall-mounted or floor-mounted battery back-up unit.

  • Page 59: Equipment Layout Plan For Wall Mounting

    System and site requirements Page 59 of 408 Equipment layout plan for wall mounting Typical wall layouts using BIX cross-connection equipment are shown in Figure 20 on page 61 and Figure 22 on page 64. Use of other types of terminal blocks and equipment will alter the layout.
  • Page 60 Page 60 of 408 System and site requirements Figure 19 Typical minimum distance layout of wall mounted cabinets (horizontal expansion) 553-3021-210 Standard 7.00 January 2002...
  • Page 61 System and site requirements Page 61 of 408 Figure 20 Typical minimum distance layout of wall-mounted cabinets (vertical expansion) Option 11C Planning and Installation Guide...

  • Page 62: System And Site Requirements

    Page 62 of 408 System and site requirements Figure 21 Mounting bracket position 553-3021-210 Standard 7.00 January 2002...

  • Page 63: The Equipment Layout Plan For Floor Mounting

    System and site requirements Page 63 of 408 The equipment layout plan for floor mounting An optional cabinet pedestal is used for floor-mounting when it is not possible to mount the cabinets on a wall. The available floor space must be large enough to accommodate the main cabinet and one, or more expansion cabinets, as shown in Figure 22 on page Note: Although you may be installing only a main cabinet at this time, leave enough space for expansion cabinets to avoid problems in the...

  • Page 64: Reserve Power Supply Layout And Installation Planning

    Page 64 of 408 System and site requirements Figure 22 Typical layout of floor mounted cabinets Reserve power supply layout and installation planning The mounting location of either the NTAK75 or the NTAK76 reserve power unit is governed by the location of the main and expansion cabinets, and the length of the NTAK0410 cable (the NTAK0410 cable is 6 ft [1830 mm] long).
  • Page 65 System and site requirements Page 65 of 408 Figure 23 Typical placement of NTAK76 (horizontal cabinet expansion) The center line of the NTAK76 may be placed a maximum of 2 ft (610 mm) to the right and 4 ft (1220 mm) to the left of the cabinet center line. These distances are based on the top of the NTAK76 being positioned 1.5 ft (460 mm) below the bottom of the cabinet.
  • Page 66 Page 66 of 408 System and site requirements Figure 24 Typical placement of NTAK75 (horizontal cabinet expansion) The center line of the NTAK75 may be placed a maximum of 0.5 ft (152 mm) to the right and 2.5 ft (760 mm) to the left of the cabinet center line. These distances are based on the cabinets being mounted at the recommended mounting heights, shown in the diagram above, for the horizontal mounting configuration.
  • Page 67 System and site requirements Page 67 of 408 Figure 25 Typical placement of NTAK76 (Vertical cabinet expansion) The center line of the NTAK76 may be placed a maximum of 2 ft (610 mm) to the right and 4 ft (1220 mm) to the left of the cabinet center line. These distances are based on the top the upper NTAK76 being positioned 1.5 ft (460 mm) below the bottom of the Expansion Cabinet, and the bottom of lower NTAK76 being positioned 1.5 ft (460 mm) below the bottom of the...
  • Page 68 Page 68 of 408 System and site requirements Figure 26 Typical placement of NTAK76 (Three-cabinet system) 553-3021-210 Standard 7.00 January 2002...
  • Page 69 System and site requirements Page 69 of 408 Figure 27 Typical placement of NTAK75 (Vertical cabinet expansion) The center line of the NTAK75 for the Expansion Cabinet may be placed a maximum of 2.5 ft (760 mm) to the left of the center line of the cabinet. The center line of the NTAK75 for the Main Cabinet may be placed a maximum of 2 ft (610 mm) to the right of the center line of the cabinet.

  • Page 70: Card Slot Assignments

    Page 70 of 408 System and site requirements Figure 28 Typical placement of NTAK75 (Three-cabinet system) Card slot assignments A card slot allocation plan showing circuit card to slot assignments should be prepared in advance for each cabinet. See the most current Option 11C product bulletins for minimum vintage requirements.
  • Page 71 System and site requirements Page 71 of 408 The following card MUST be installed in the main cabinet slots 1-9: • NT6D70 when used as a clock controller. If you plan on using the preassigned numbering plan with consecutive numbers, it is important to assign all line cards in consecutive card slots. To prepare the plan, list the total number of the following circuit cards required for the installation: Used only in the main cabinet...
  • Page 72 Page 72 of 408 System and site requirements NT8D09 Message waiting ________ NT8D14 Universal Trunk ________ NT8D16 Digitone Receiver ________ NT8D15 E&M Trunk ________ NT7D16 Data Access ________ NT6D70 SILC (see) ________ NT6D71 UILC ________ NT5K02 XFALC ________ NT5K18 XFCOT ________ NT5K17 XDDI ________...
  • Page 73 System and site requirements Page 73 of 408 CAUTION If NE-A25B cables are used instead of NTAK19AA and NTAK19BA cables with the NTAK02 and NTAK03 cards, proceed with care. NE-A25B cables are not wired out to station equipment or trunk circuits.
  • Page 74 Page 74 of 408 System and site requirements Figure 30 Option 11C IP Expansion Cabinets 553-3021-210 Standard 7.00 January 2002...

  • Page 75: General Information

    Page 75 of 408 Regulatory information Contents This section contains information on the following topics: General information ........Notice for United States installations .

  • Page 76: Regulatory Information

    Notice for United States installations The Meridian 1 Option 11C system complies with Part 68 of the FCC rules. On the lower left corner of each system cabinet is a label that contains, among other information, the FCC registration number and Ringer Equivalence Number (REN) for this equipment.

  • Page 77: Importance Of Ringer Equivalence Number

    However, as a guideline, a total REN of five should allow normal operation of your equipment. If your Meridian 1 Option 11C equipment causes harm to the telephone network, the telephone company may discontinue your service temporarily.

  • Page 78: Regulatory Information

    Page 78 of 408 Regulatory information Notice for Canadian installations The Industry Canada - formerly called the Canadian Department of Communications - label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements. Industry Canada does not guarantee that the equipment will operate to the user’s satisfaction.

  • Page 79: Notice For International Installations

    Regulatory information Page 79 of 408 CAUTION The Option 11C frame ground of each system cabinet must be tied to a reliable building ground reference. WARNING Users should not attempt to make electrical ground connections themselves, but should contact their local electrical inspection authority or electrician.

  • Page 80: Canadian And U.s.a. Network Connections

    Option 11C system. Note: Table 9 includes columns for system port identification, Facility Interface Code (FIC), Service Order Code (SOC), USOC jack identification and associated Nortel equipment part numbers. FCC compliance: registered equipment for Direct Inward Dial (DID) calls Equipment registered for Direct Inward Dial (DID) calls must provide proper answer supervision.
  • Page 81 Regulatory information Page 81 of 408 — routed to a recorded announcement that can be administered by the CPE user — routed to a dial prompt. • DID equipment returns answer supervision on all DID calls forwarded to the Central Office. Permissible exceptions are if: —...
  • Page 82 Page 82 of 408 Regulatory information Table 9 Network connection specifications Facility Service Manufacturer Interface Order Network network interface Ports MTS/WATS Code Code Jacks port designation 2-Wire, LSA, L-S 02LS2 9.0F 1.1B RJ21X NT8D14 (2-Wire, Local Switched CA21X* Access, Loop-Start) 2-Wire, LSA, G-S 02GS2 9.0F...

  • Page 83: Radio And Tv Interference

    Option 11C must accept any interference received, including interference that may cause undesired operation. If the Meridian 1 Option 11C causes interference to radio or television reception, which can be determined by placing a telephone call while monitoring, the user is encouraged to try to correct the interference by the following measures: •...
  • Page 84 Page 84 of 408 Regulatory information 553-3021-210 Standard 7.00 January 2002...

  • Page 85: Important Safety Instructions

    Page 85 of 408 Important safety instructions Contents This section contains information on the following topics: General information ........Symbols you should recognize .
  • Page 86 Page 86 of 408 Important safety instructions Safety instructions when installing telephone equipment Never install telephone wiring during a lightning storm. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.
  • Page 87 Important safety instructions Page 87 of 408 Slots and openings in the cabinet and the back or bottom are provided for ventilation, to protect it from overheating. These openings should never be blocked or covered. The openings on a telephone should never be blocked by placing the product on the bed, sofa, rug, or other similar surface.
  • Page 88 Page 88 of 408 Important safety instructions 13 Unplug the telephone from the wall outlet and refer servicing to qualified personnel under the following conditions: When the power supply cord or plug is damaged or frayed If liquid has been spilled into the telephone If the telephone has been exposed to rain or water If the telephone has been dropped or the cabinet has been damaged If the product exhibits a distinct change in performance...
  • Page 89 Important safety instructions Page 89 of 408 • NTDK24 3 km Fiber Expansion daughterboard (Multimode glass fiber optic cable) • NTTK02 Dual Port IP Expansion daughterboard • NTTK01 Single Port IP Expansion daughterboard • NTDK85 3 km Dual Port Fiber Expansion daughterboard (Multimode glass fiber optic cable) •...
  • Page 90 Page 90 of 408 Important safety instructions 553-3021-210 Standard 7.00 January 2002...
  • Page 91 Page 91 of 408 Bracing cabinets against earthquakes Contents This section contains information on the following topics: General information ........Method for earthquake bracing .
  • Page 92 Page 92 of 408 Bracing cabinets against earthquakes Table 10 Backboard size limits Backboard size 2 ft by 6 ft (600 mm by 1800 mm) Minimum 4 ft by 8 ft (1200 mm by 2400 mm) Maximum Determine fastener requirements To determine fastener requirements, you will need the following information: •...
  • Page 93 Bracing cabinets against earthquakes Page 93 of 408 Table 12 Hardware recommendations Vertical spacing Minimum Type of wall Fastener between fasteners embedment Wood stud #10 Wood Screws 12 in. (300 mm) on center 1 in. (25 mm) Metal stud #14 Sheet Metal Screws 12 in.
  • Page 94 Page 94 of 408 Bracing cabinets against earthquakes Table 13 Minimum wall stud sizes — 16 inch spacing (Part 2 of 2) 4 X 20 Gauge 14 ft (4200 mm) 4 X 18 Gauge 15 ft (4500 mm) 4 X 16 Gauge 16 ft (4800 mm) 4 X 14 Gauge 17 ft (5100 mm)
  • Page 95 Bracing cabinets against earthquakes Page 95 of 408 Table 14 Minimum wall stud sizes - 24 inch spacing (Part 2 of 2) 4 X 18 Gauge 13 ft (3900 mm) 4 X 16 Gauge 14 ft (4200 mm) 4 X 14 Gauge 16 ft (4800 mm) 6 X 18 Gauge 18 ft (5400 mm)

  • Page 96: Bracing Cabinets Against Earthquakes

    Page 96 of 408 Bracing cabinets against earthquakes Figure 31 Plywood fastener locations for wood and metal stud walls — 16 inch spacing 553-3021-210 Standard 7.00 January 2002...
  • Page 97 Bracing cabinets against earthquakes Page 97 of 408 Figure 32 Plywood fastener locations for wood and metal stud walls — 24 inch spacing Option 11C Planning and Installation Guide...
  • Page 98 Page 98 of 408 Bracing cabinets against earthquakes Figure 33 Plywood fastener locations for concrete and masonry walls Proceed with Option 11C system installation Now that you have securely fastened the backboard to the wall, you can proceed with the Option 11C system Installation. 553-3021-210 Standard 7.00 January 2002...

  • Page 99: Preparing For Installation

    Page 99 of 408 Preparing for installation Contents This section contains information on the following topics: General information ........Tools checklist .
  • Page 100 Page 100 of 408 Preparing for installation Readiness checklist Have you: • read all safety instructions in the first part of this guide? • checked to ensure you received all the equipment that was ordered? • made sure your area meets all environmental requirements? •...
  • Page 101 Page 101 of 408 Installation Procedures Contents This section contains information on the following topics: Reference list ..........101 General information .
  • Page 102 Page 102 of 408 Installation Procedures CAUTION Wear the anti-static wrist strap provided in the bottom of the cabinet before handling the power supplies or other circuit cards. Static electricity can damage the components of power supplies and circuit cards. Procedure 2 New system installation Install the Main Cabinet...
  • Page 103 Installation Procedures Page 103 of 408 Install expansion cabinets a) Mount the cabinets as described in “Mounting the cabinets” on page 115. b) Remove the drip tray from each cabinet to expose the cable routing grooves at the bottom rear of the cabinet. c) Install the cabinet ground wire for the main cabinet as described in “Installing the system ground”...
  • Page 104 Page 104 of 408 Installation Procedures For point-to-point 100BaseF connectivity, connect the Main cabinet to the IP Expansion cabinets using the A0346816 5-meter fiber cable with fiber couplers. • Use the supplied A0346816 ST fiber couplers to connect the ST ends on the A0817052 fiber cables coming from the Main and IP Expansion cabinets.
  • Page 105 Installation Procedures Page 105 of 408 Main Power hook-up. Connect the external power supply, if not already done. If this system uses a commercial AC power supply, the power outlet should be tested to make sure that the correct voltage is present before plugging the power cord in the outlet.
  • Page 106 Page 106 of 408 Installation Procedures Check the “Link” LED on the daughterboard. From left to right, the LEDs are: • Receive LED • Transmit LED • Link LED (should be green) If the Link LED is not lit and green, the hardware connection is not enabled.
  • Page 107 Installation Procedures Page 107 of 408 Figure 35 Cable Ends and Fiber Coupler for 100BaseF connectivity A0817052 MT-RJ cable end A0346816 ST Fiber A0817052 MT-RJ to ST Coupler cable (B) Rx end A0817052 MT-RJ to ST cable (A) Tx end Option 11C Planning and Installation Guide...
  • Page 108 Page 108 of 408 Installation Procedures Figure 36 Cable ends for 100BaseT IP connectivity NTDK8305 cable ends Procedure 3 Adding expansion cabinets to an existing system Install an expansion daughterboard and cable on the NDK20EA SSC in the main cabinet as described in “Installing System Controller Cards”...
  • Page 109 Installation Procedures Page 109 of 408 g) Install the remaining circuit cards. Refer to “Installing the circuit cards” on page 187. h) Install the cross-connect terminal and Cables. Refer to “Installing and connecting cross-connect terminals to cabinets” on page 169. Install the power fail transfer units (PFTUs) if provided.
  • Page 110 Page 110 of 408 Installation Procedures Scenario 1: Adding a third expansion cabinet If the existing main cabinet is equipped with two single daughterboards, and the two expansion cabinets are located within 10 m, adding another expansion cabinet within 3km requires the following steps: Replace the top daughterboard with a dual port expansion daughterboard.
  • Page 111 Installation Procedures Page 111 of 408 Option 11C and Option 11C Mini mix-and-match expansion In a mix-and-match scenario, an Option 11C Mini Main chassis can be connected to the Option 11C IP Expansion cabinet(s). In addition, an Option 11C Main cabinet can be connected to an Option 11C Mini IP Expansion chassis.
  • Page 112 Page 112 of 408 Installation Procedures Figure 38 Option 11C Mini EMC grounding clip location 100BaseT cables secured with a cable tie Grounding Clip Figure 39 on page 113 shows an example “mix-and-match” configuration in which an Option 11C Main cabinet uses both fiber and IP cabling to connect two Option 11C Expansion cabinets and one Option 11C Mini Expansion chassis.
  • Page 113 Installation Procedures Page 113 of 408 Figure 39 Option 11C and Option 11C Mini mix-and-match expansion configuration Option 11C Planning and Installation Guide...

  • Page 114: Installation Procedures

    Page 114 of 408 Installation Procedures 553-3021-210 Standard 7.00 January 2002...
  • Page 115 Page 115 of 408 Mounting the cabinets Contents This section contains information on the following topics: General information ........115 Earthquake bracing .
  • Page 116 Page 116 of 408 Mounting the cabinets • seven 1 in. #12 screws provided or other appropriate fasteners to secure the mounting bracket and cabinet to the wall • a 3/4 in. (20 mm) sheet of plywood secured to the wall •...
  • Page 117 Mounting the cabinets Page 117 of 408 Perform this step only if an expansion cabinet is to be located immediately next to the main cabinet (or an existing expansion cabinet). Otherwise, go to the next step (Step 5 on page 118). Fasten an alignment bracket (shipped with the cabinet) to the wall as shown in Figure 40 on page 117.
  • Page 118 Page 118 of 408 Mounting the cabinets Rest the bottom of the bracket on the line drawn for the expansion cabinet, and fasten the mounting bracket to the wall with five 1 in. #12 screws provided (or other suitable fasteners). Make sure the mounting bracket is even with the line drawn, and that the hook on the bracket is facing upward as shown in Figure 40 on page 117.
  • Page 119 Mounting the cabinets Page 119 of 408 Remove the metal drip tray. Check the wrist strap in the bottom right of the cabinet. It may have come loose during transit. If so, attach it to the velcro tab on the inside right wall of the cabinet.
  • Page 120 Page 120 of 408 Mounting the cabinets Mounting the cabinet on the floor Items required To mount the cabinet on the floor you need: • the optional pedestal for floor mounting • four #14 screws provided to secure the cabinet to the pedestal •...
  • Page 121 Mounting the cabinets Page 121 of 408 Figure 43 Unlocking the latches Note: The bottom of the front cover is supported but not secured to the cabinet. Be careful not to drop it. Remove the metal drip tray. Check the wrist strap in the bottom right of the cabinet. It may have come loose during transit.

  • Page 122: Mounting The Cabinets

    Page 122 of 408 Mounting the cabinets Figure 44 Installing the pedestal Opening for door hinge (one on each side of cabinet) Place the cabinet on the pedestal and make sure that it is properly seated. Align with the guide at the rear of the cabinet and pedestal (Refer to Figure 45 on page 123).
  • Page 123 Mounting the cabinets Page 123 of 408 Figure 45 Mounting the cabinet on the pedestal Position the cabinet according to the equipment layout plan. If an additional expansion cabinet is being installed at this site, repeat this procedure for that cabinet. Option 11C Planning and Installation Guide...
  • Page 124 Page 124 of 408 Mounting the cabinets 553-3021-210 Standard 7.00 January 2002...
  • Page 125 Page 125 of 408 Installing the system ground Contents This section contains information on the following topics: General information ........125 Cabinets powered by the same service panel .

  • Page 126: Installing The System Ground

    Page 126 of 408 Installing the system ground Make sure you read, “Grounding requirements” on page 39, before proceeding further. WARNING Proper grounding is extremely important. Failure to complete the following steps could result in a system that is: • unsafe for personnel using the equipment •...
  • Page 127 Installing the system ground Page 127 of 408 WARNING Power should never be connected to a cabinet that is not properly grounded. If the cabinet is connected to a reserve power supply unit (battery backup), make sure that the circuit breaker on that unit is set to OFF.
  • Page 128 Page 128 of 408 Installing the system ground Connect the grounding block to a suitable ground source (the ground bus in the AC power service panel). WARNING The connection in the AC power service panel should be performed by a qualified technician or electrician. Place a DO NOT DISCONNECT tag on the ground wire at the service panel.
  • Page 129 Installing the system ground Page 129 of 408 Figure 47 Ground/Earth lug in the NTAK11 system cabinets Earth lug Ground connection Ground/Earth wire in third groove Option 11C Planning and Installation Guide...
  • Page 130 Page 130 of 408 Installing the system ground Procedure 8 Earthing the cabinets (UK) Connect a protective and functional earth wire from the earthing strip on the test jack frame to the earth at the building entry point. Use a green/yellow wire no thinner than 10 mm 2 . In each cabinet, connect an earth wire from the earth lug in the cabinet (see Figure 47 on page 129) to the earth connection at the Test Jack Frame.

  • Page 131: General Information

    Page 131 of 408 Installing the power supplies Contents This section contains information on the following topics: General information ........131 Power supplies .

  • Page 132: Power Supplies

    Page 132 of 408 Installing the power supplies Figure 48 Power supply location — main and expansion cabinets Power supplies Power supplies are shipped separately from the cabinets. AC- powered system If installing an AC-powered system, an NTAK04 or NTDK78 ac/dc power supply is required with its appropriate line cord for each cabinet.

  • Page 133: Switch Settings

    Installing the power supplies Page 133 of 408 Switch settings The power supplies are equipped with a series of switches which must be set before the units are installed in the cabinet. Refer to Figure 49 on page 133. Figure 49 NTAK04, NTAK05, NTDK72 and NTDK78 power supply switch settings Message Waiting...

  • Page 134: Ac Power Supply Installation

    Page 134 of 408 Installing the power supplies AC power supply installation AC power requirements The AC-powered version requires a non-switched dedicated power outlet installed within 6 ft (1830 mm) of each cabinet, with: • one non-switched dedicated outlet per cabinet with: —...
  • Page 135 Installing the power supplies Page 135 of 408 Insert the power supply into the first slot on the left of the card shelf (refer to Figure 48 on page 132). Lock it into place with the card tabs. Attach the power line cord to the connector on the left side of the power supply (see Figure 50 on page 135) by feeding the cord up through the card guides.

  • Page 136: Dc Power Supply Installation

    Page 136 of 408 Installing the power supplies Test the ground of each system cabinet using the following: a) Set the circuit breakers feeding the AC outlet used to power the cabinet to OFF. b) Connect the power line cord to the NTAK04 or NTDK78 main cabinet power supply.
  • Page 137 Installing the power supplies Page 137 of 408 Procedure 10 Installing the DC power supply Make sure the switches on the power supply are properly set. Refer to Figure 49 on page 133 of this chapter. Insert the power supply into the first slot on the left of the card shelf (refer to Figure 48 on page 132).

  • Page 138: Installing The Power Supplies

    Page 138 of 408 Installing the power supplies Figure 51 NTAK05 or NTDK72 DC power cable connection DC power connection Route the rest of the power cable down through the opening at the bottom of the cabinet as shown in Figure 52 on page 139. 553-3021-210 Standard 7.00 January 2002...
  • Page 139 Installing the power supplies Page 139 of 408 Figure 52 Power cord routing DC power cord in second groove Ground wire in third groove Mount the NTAK28 Breaker Assembly to the wall within 3 ft (915 mm) of the cabinet it is serving. See Figure 53 on page 140. Secure the breaker assembly with four #10 1/2 in.
  • Page 140 Page 140 of 408 Installing the power supplies Figure 53 NTAK28 Breaker Assembly location Set the breakers on the NTAK28 Breaker Assembly and on the NTAK05 or NTDK72 power supply to OFF. Connect the other end of the DC power cable (NTAK0420 cable) to the connector on the DC breaker assembly.
  • Page 141 Installing the power supplies Page 141 of 408 Figure 54 Power connection at the NTAK28 breaker assembly Option 11C Planning and Installation Guide...
  • Page 142 Page 142 of 408 Installing the power supplies 553-3021-210 Standard 7.00 January 2002...

  • Page 143: General Information

    Page 143 of 408 Installing System Controller Cards Contents This section contains information on the following topics: General information ........143 Main Cabinet NTDK20 SSC installation .

  • Page 144: Software Daughterboard And Security Device Installation

    Page 144 of 408 Installing System Controller Cards Software Daughterboard and Security Device installation CAUTION The NDK20EA SSC card is equipped with components on both sides of the circuit board. Be careful not to damage any of the components when handling the card. Procedure 11 Installing the Software Daughterboard and Security Device Put on the anti-static wrist strap.
  • Page 145 Installing System Controller Cards Page 145 of 408 Figure 55 Location of Software Daughterboard and Security Device on the NTDK20 SSC card Software Daughterboard Security Device Option 11C Planning and Installation Guide...

  • Page 146: Installation Of Expansion Daughterboards And Cables

    Page 146 of 408 Installing System Controller Cards Installation of expansion daughterboards and cables The following four daughterboards can be installed on the SSC card in the main Option 11C cabinet: • NTDK22/24/81(Single mode) - single port • NTDK84/85 - dual port •...
  • Page 147 Installing System Controller Cards Page 147 of 408 Record the MAC address found on the back of the daughterboard. This will be needed later to perform the software installation. See Figure 57 on page 149. Insert the male end on the NTDK8305 cable into one port on the IP daughterboard.

  • Page 148: Installing System Controller Cards

    Page 148 of 408 Installing System Controller Cards Route cable through cable routing guide to secure cable and tidy the installation. Note: Be sure to wrap the cable a minimum of one complete loop around the Cable Routing Guide. Figure 56 NTDK83 dual port 100BaseT daughterboard 553-3021-210 Standard 7.00...
  • Page 149 Installing System Controller Cards Page 149 of 408 Figure 57 SSC card with 100BaseT daughterboard installed Plastic Post Connection MAC address Daughterboard port connectors NTDK8305 cable Option 11C Planning and Installation Guide...
  • Page 150 Page 150 of 408 Installing System Controller Cards Figure 58 EMC Grounding Clip Stiffener Rail EMC Grounding Clip Note 1: The EMC grounding clip is installed on the front of the stiffener rail on the Option 11C IP cabinet. There is a small #4-40 screw to fasten the clip to the stiffener rail.
  • Page 151 Installing System Controller Cards Page 151 of 408 Figure 59 Cable Routing Guide under Main Option 11C cabinet Cable Routing Guide Procedure 13 Installing the 100BaseF IP daughterboard on the SSC card on the Main Cabinet Put on the anti-static wrist strap. Place the SSC card on a clean flat surface.
  • Page 152 Page 152 of 408 Installing System Controller Cards Note 1: With new connectors, push very firmly until a definite ‘click’ is heard. Pull gently on the connection to make sure it is secure. Note 2: The top connector on the SSC card is for expansion cabinets”1”...
  • Page 153 Installing System Controller Cards Page 153 of 408 Figure 60 NTTK02 dual port 100BaseF daughterboard Fiber connectors connector Option 11C Planning and Installation Guide...
  • Page 154 Page 154 of 408 Installing System Controller Cards Figure 61 Cable ends and fiber coupler A0817052 MT-RJ end A0817052 MT-RJ to ST A0346816 ST Fiber cable (B) Rx end Coupler A0817052 MT-RJ to ST cable (A) Tx end Installation of Fiber Expansion daughterboards and cables Procedure 14 Installing the Single Port Fiber Expansion daughterboards on the SSC card.
  • Page 155 Installing System Controller Cards Page 155 of 408 Note 1: If using the plastic fiber cable, see Procedure 16 on page 159 Note 2: If using glass fiber optic cable, see Procedure 17 on page 162. Press firmly on the standoffs to ensure that the daughterboards are secured to the SSC card.
  • Page 156 Page 156 of 408 Installing System Controller Cards Procedure 15 Installing the Dual Port Fiber Expansion daughterboards on the SSC card. Put on the anti-static wrist strap. Place the SSC card on a clean flat surface. Install the Fiber Daughterboards for expansion cabinet 1 and 3 on the connector as shown in Figure 65 on page 158 (the upper connector).
  • Page 157 Installing System Controller Cards Page 157 of 408 Figure 63 NTDK84 Dual Port Fiber Expansion Daughterboard (10 m) Figure 64 NTDK85 Dual Port Fiber Expansion Daughterboard (3 km) Option 11C Planning and Installation Guide...
  • Page 158 Page 158 of 408 Installing System Controller Cards Figure 65 Cabinet assignments for both types of Dual Port Daughterboards Expansion Daughterboard in connector ‘Fiber 1” Connection for Cabinet 1 Connection for Cabinet 3 Connection for faceplate LED Expansion Daughterboard Connection for Cabinet 2 in connector ‘Fiber 2”...
  • Page 159 Installing System Controller Cards Page 159 of 408 CAUTION Incorrectly connected fiber optic cables may cause the following problems: – a series of repetitive fault indicating messages – a complete failure of the expansion cabinet. If fault indicating messages appear, check the fiber optic cable connections.
  • Page 160 Page 160 of 408 Installing System Controller Cards Route the cables through the SSC cable routing guide as shown in Figure 67 on page 161. Note: Be sure to wrap the cable a minimum of one complete loop around the cable routing guide to allow for extra cable for removing the SSC card later.
  • Page 161 Installing System Controller Cards Page 161 of 408 Figure 67 Fiber Optic Cable Connection Fiber Cable Connections SSC cable router Option 11C Planning and Installation Guide...
  • Page 162 Page 162 of 408 Installing System Controller Cards Figure 68 Plastic Fiber Cable Connection on Dual Port Daughterboard Insert the connector firmly. A distinct ‘snapping’ sensation is felt when the connector is properly seated and the clasps are engaged. ‘V’ shaped groove facing outward If the connector is equipped with a marking, it should be hidden by the clasp when...
  • Page 163 Installing System Controller Cards Page 163 of 408 Route the fiber cables through the SSC cable router on the SSC card. Refer to Figure 70 on page 164 for location of the cable router. Insert the SSC card into slot “0” of the main Option 11C cabinet. Lock card into faceplate latches.

  • Page 164: Ntdk20 Ssc Installation On Ip Expansion Cabinets

    Page 164 of 408 Installing System Controller Cards Figure 70 Glass Fiber Optic Cable Connection SSC cable router Glass Fiber Optic cable connections NTDK20 SSC installation on IP Expansion cabinets IP expansion cabinets require an NTDK20 SSC card (minimum vintage is NTDK20CA) equipped with an IP daughterboard.

  • Page 165: Ip Expansion Daughterboards

    Installing System Controller Cards Page 165 of 408 IP Expansion Daughterboards In an IP expansion cabinet, there are two choices of IP daughterboards: • NTDK99 100BaseT - single port • NTTK01 100BaseF - single port The installation of these daughterboards is the same as described in Procedures 12 and 13 for the Main SSC card, with the following notable exceptions: Note 1: The IP daughterboard must be installed in the lower (i.e.

  • Page 166: Expansion Cabinet Fiber Receiver Card

    Page 166 of 408 Installing System Controller Cards Expansion Cabinet Fiber Receiver Card Procedure 18 Installing the fiber receiver card Install the fiber optic cable: • To install the 10m plastic fiber optic cable refer to Procedure 16 on page 159 •...
  • Page 167 Installing System Controller Cards Page 167 of 408 Figure 71 Fiber receiver card in slot 0 of the fiber expansion cabinet Fiber Cable Connection Cable Storage area Cable Routing Guide Option 11C Planning and Installation Guide...
  • Page 168 Page 168 of 408 Installing System Controller Cards 553-3021-210 Standard 7.00 January 2002...

  • Page 169: Reference List

    Page 169 of 408 Installing and connecting cross-connect terminals to cabinets Contents This section contains information on the following topics: Reference list ..........169 General information .

  • Page 170: Terminal Block Requirements

    Page 170 of 408 Installing and connecting cross-connect terminals to cabinets Note: Although the use of the BIX system is not mandatory, it is the recommended choice. This chapter contains the following procedures: • Procedure 19 “Installing the BIX cross-connect terminal” on page 171 •...

  • Page 171: Installing The Bix Cross-Connect Terminal

    Installing and connecting cross-connect terminals to cabinets Page 171 of 408 • one 25-pair cable from each QUA6 PFTU. • wiring from telephones and trunks. WARNING Always use caution when installing or modifying telephone lines. Avoid installing telephone wiring during a lightning storm. Never touch uninsulated telephone wiring unless the line has been disconnected at the network interface.

  • Page 172: Installing And Connecting Cross-Connect Terminals To Cabinets

    Page 172 of 408 Installing and connecting cross-connect terminals to cabinets Figure 72 Typical BIX cross-connect terminal layout 553-3021-210 Standard 7.00 January 2002...

  • Page 173: Installing The Reichle Masari Cross-Connect Terminal (Germany)

    Installing and connecting cross-connect terminals to cabinets Page 173 of 408 Installing the Reichle Masari cross-connect terminal (Germany) Procedure 20 describes how to install the cross-connect Reichle Masari terminal. Procedure 20 Installing the Reichle Masari cross-connect terminal Consult the equipment layout plan to determine where the cross-connect terminal should be located.
  • Page 174 Page 174 of 408 Installing and connecting cross-connect terminals to cabinets Figure 73 Reichle Masari cross-connect terminal layout (Germany) Odd system cable Even system cable Free block for wiring Ground block 553-3021-210 Standard 7.00 January 2002...

  • Page 175: Installing The Krone Test Jack Frame For The Uk

    Installing and connecting cross-connect terminals to cabinets Page 175 of 408 Installing the Krone Test Jack Frame for the UK Procedure 21 describes how to install the Krone Test Jack Frame Procedure 21 Installing the KroneTest Jack Frame Consult the equipment layout plan to determine where the cross-connect terminal should be located.
  • Page 176 Page 176 of 408 Installing and connecting cross-connect terminals to cabinets Figure 74 Typical Krone cross connect terminal layout Main cabinet Expansion cabinet Pair Pair Pair Pair Spare Spare Spare PFTU Attendant terminations console AUX cable Earthing block Earthing block 553-3021-210 Standard 7.00 January 2002...

  • Page 177: Connecting The Cables

    Installing and connecting cross-connect terminals to cabinets Page 177 of 408 Connecting the cables Each Option 11C system cabinet requires up to ten 25-pair cables. Each cabinet requires an additional terminal block at the cross-connect terminal for the termination of the 9-pin conductor auxiliary cable. All cables are connected at the bottom of the cabinet and are routed through the openings in the lower part of the cabinet.
  • Page 178 Page 178 of 408 Installing and connecting cross-connect terminals to cabinets Figure 75 Cable connectors in a system cabinet Location of the Retaining bar AUX cable Connector and cables to cross-connect terminal Route the cables down through the opening at the bottom of each cabinet.
  • Page 179 Installing and connecting cross-connect terminals to cabinets Page 179 of 408 Table 16 Table of AUX cable terminations Color Wire number Designation Connection W-BL BRTN to QUA6-J1 1R BL-W BRTN to QUA6-J1 2R -48V AUX (250mA) to QUA6-J1 25T, 25R PFTS to QUA6-J1 2T -15V AUX...
  • Page 180 Page 180 of 408 Installing and connecting cross-connect terminals to cabinets 553-3021-210 Standard 7.00 January 2002...
  • Page 181 Page 181 of 408 Installing power fail transfer units Contents This section contains information on the following topics: General information ........181 Installing the PFTU .
  • Page 182 Page 182 of 408 Installing power fail transfer units Installing the PFTU Consult the equipment layout plan to determine where the PFTU should be located. Procedure 23 Installing the PFTU Mount the PFTU on the wall near the system cross-connect terminal and secure it with four screws.
  • Page 183 Installing power fail transfer units Page 183 of 408 Figure 77 Auxiliary port location Auxiliary port: NTAK1104Aux cable connects the PFTU and M2250 attendant console to the Option 11C Option 11C Planning and Installation Guide...
  • Page 184 Page 184 of 408 Installing power fail transfer units Table 17 Control and power connections on cable J1 J1 Cable from QUA6 (see Figure 78 on page 185) Pair Pair Connects Function Cross-connect to Number Color W-BL (ALM) Not used. Control BL-W BRTN...
  • Page 185 Installing power fail transfer units Page 185 of 408 Connect the attendant console to the PFTU: • attendant console 14 Tip (14T) to ground • 3 Tip (3T) of PFTU to 11 Ring (11R) of attendant console (power fail transfer switch) •...
  • Page 186 Page 186 of 408 Installing power fail transfer units PFTU control lead signals To connect PFTUs from other manufacturers, use the information provided in the following table: Table 18 PFTU control lead signals NTAK1104 Aux. Cable Lead State when PFTU in Lead State when PFTU in Lead Non-Transferred State...

  • Page 187: Reference List

    Page 187 of 408 Installing the circuit cards Contents This section contains information on the following topics: Reference list ..........187 General information .

  • Page 188: Circuit Cards

    Page 188 of 408 Installing the circuit cards Always handle circuit cards with care to avoid damaging them due to static electricity. Always store unused circuit cards in an anti-static bag or the original packaging. CAUTION An anti-static wrist strap, provided in the bottom of the cabinet, must be worn when handling circuit cards.
  • Page 189 Installing the circuit cards Page 189 of 408 The NTAK02 SDI/DCH card uses jumper plugs to configure the RS232/RS422 interfaces as: • DTE, or • Procedure 24 NTAK02 circuit card installation Set the switches and jumper plugs for the NTAK02 SDI/DCH card according to the following tables.

  • Page 190: Ntak03 Tds/Dtr Card

    Page 190 of 408 Installing the circuit cards Table 21 Jumper settings Jumper Strap for Strap for Jumper Port location location RS422 RS232 Port 0 C - B B - A Port 1 C - B B - A C - B B - A C - B B - A...

  • Page 191: Nt8D14 Universal Trunk Card

    Installing the circuit cards Page 191 of 408 Procedure 25 NTAK03 card installation Insert the card in its assigned slot. The NTAK03 TDS/DTR card may be inserted into any of the card slots 1 through 9. Connect an NTAK19EC cable (or an NE-A25-B cable) from the corresponding connector at the bottom of the cabinet.

  • Page 192: Nt8D15 E&M Trunk Card

    Page 192 of 408 Installing the circuit cards Table 22 NT8D14 Universal trunk — modes and option settings (Part 2 of 2) DID operation J1, J2 Ω Loop length>2000 DID operation J1, J2 Ω Loop length <2000 OFF indicates no strap present. J1 and J2 locations apply to all eight trunks.

  • Page 193: Ntag26 Xmfr Card

    Installing the circuit cards Page 193 of 408 NTAG26 XMFR card The function of the XMFR (Extended Multi-Frequency Receiver) card is provided on the NDK20EA SSC card. However, this card can coexist with the SSC card if access to extra XMFR capability is required. The XMFR card is used to receive MF digit information.

  • Page 194: Nt1R20 Off-Premise Station (Ops) Analog Line Card

    Page 194 of 408 Installing the circuit cards NT1R20 Off-Premise Station (OPS) analog line card The OPS analog line card provides eight OPS lines. The card can be installed in slots 1 through 10 in the main cabinet or 11 through 50 in the expansion cabinets.
  • Page 195 Installing the circuit cards Page 195 of 408 Table 24 OPS analog line card configuration Application On-premise station (ONS) Off-premise station (OPS) Class of ser- vice (Note 1) Loop resis- 0 - 460 ohms 0 - 2300 ohms tance Jumper strap Both JX.
  • Page 196 Page 196 of 408 Installing the circuit cards Figure 80 OPS analog line card: jumper block locations Jumper block locations 553-3021-210 Standard 7.00 January 2002...
  • Page 197 Installing the circuit cards Page 197 of 408 Figure 81 OPS analog line card cross connections Option 11C Planning and Installation Guide...
  • Page 198 Page 198 of 408 Installing the circuit cards 553-3021-210 Standard 7.00 January 2002...
  • Page 199 Page 199 of 408 Installing and connecting reserve power supplies Contents This section contains information on the following topics: Reference list ..........199 General information .
  • Page 200 Page 200 of 408 Installing and connecting reserve power supplies — designed to be float-charged by the NTAK04 or NTDK78 ac/dc power supply — provides a minimum of 2 hours of reserve DC power — mounts to the floor — supports one system cabinet •...
  • Page 201 Installing and connecting reserve power supplies Page 201 of 408 Procedure 31 NTAK75 Battery Unit installation Unpack the NTAK75 battery unit and place it according to the equipment layout plan. • The battery unit must be a installed within 3 ft (915 mm) of the cabinet it is serving.
  • Page 202 Page 202 of 408 Installing and connecting reserve power supplies Figure 82 NTAK75 Battery Backup — Top View Circuit Breaker Locate the four black/red jumper cables supplied with the NTAK75. Connect the battery packs by installing the jumper cables between the +/- terminals of one battery pack to the connectors marked “J1 - J4.”...
  • Page 203 Installing and connecting reserve power supplies Page 203 of 408 Plug the NTAK0420 cable from the battery box into the power supply in the cabinet (Figure 83 on page 204). Secure the cable with the cable retainer inside the cabinet. Set the breaker on the NTAK04 or NTDK78 to ON.
  • Page 204 Page 204 of 408 Installing and connecting reserve power supplies Figure 83 Cable connections Connection on power supply unit Cable from NTAK76 Installing the NTAK76 battery unit Follow Procedure 32 on page 204 to install an NTAK76 battery unit. Repeat the procedure for each system cabinet being installed.
  • Page 205 Installing and connecting reserve power supplies Page 205 of 408 • The battery unit must be installed beside or below the Option 11C cabinet; not above. • If installed below, the minimum clearance from the top of the NTAK76 to the bottom of the wall mounted Option 11C cabinet is 2 ft (610 mm).
  • Page 206 Page 206 of 408 Installing and connecting reserve power supplies Figure 84 Mounting the NTAK76 battery unit to the wall Install this screw first Screw holes Set the switch on the front of the NTAK76 battery box to OFF. (Refer to Figure 85 on page 207). WARNING The battery cells can deliver high currents when short-circuited.
  • Page 207 Installing and connecting reserve power supplies Page 207 of 408 Place the batteries in the battery unit with the terminal end down. Hold the batteries in place with the restraining bar. Locate the three white jumper wires and the red and black jumper cables supplied with the NTAK76 battery unit.
  • Page 208 Page 208 of 408 Installing and connecting reserve power supplies Set the breaker in the battery unit to ON to test for correct wiring. The NTAK76 green LED (BATT) should switch on. DC voltage can be measured between the test points whenever the green BATT LED is lit on the NTAK76.
  • Page 209 Installing and connecting reserve power supplies Page 209 of 408 Figure 86 Power cord routing Connection on power supply unit Cable from NTAK76 Connecting other battery backup systems This procedure describes how to install and connect customer-supplied battery backup systems. Charging capabilities of the Option 11C are described in the Option 11C and 11C Mini Technical Reference Guide (553-3011-100).
  • Page 210 Page 210 of 408 Installing and connecting reserve power supplies Procedure 33 Installing other battery systems Unpack the battery box and place it according to the equipment layout plan. Remove its cover. Set the switch on the battery box to OFF. Unpack the batteries and check the expiry dates.
  • Page 211 Installing and connecting reserve power supplies Page 211 of 408 Figure 87 NTAK28 breaker assembly location Set the breakers on the NTAK28 Junction box and on the NTAK04 or NTDK78 power supply to OFF. Connect the NTAK0420 cable from the NTAK28 junction box to the power supply in the cabinet.
  • Page 212 Page 212 of 408 Installing and connecting reserve power supplies Figure 88 NTAK28 circuit breaker assembly NTAK28 Junction Box Trim wires to a length of 15 mm (3/4 in.) before connecting Green -52V Black To -52 V dc power source Power connection to cabinet Wiring in condui...

  • Page 213: Reference List

    Page 213 of 408 Installing and connecting SDI and ethernet ports Contents This section contains information on the following topics: Reference list ..........213 General information .

  • Page 214: Modem Setup Requirements

    Page 214 of 408 Installing and connecting SDI and ethernet ports to install and connect an ethernet cable to the Option 11C main cabinet. Option 11C SDI ports are provided by the following cards: • NTDK20 Small System Controller (SSC) card: provides three SDI ports •...

  • Page 215: Installing And Connecting Sdi Ports

    Installing and connecting SDI and ethernet ports Page 215 of 408 Table 25 Modem problems Problem Solution CDR is not printing on an ESDI port Change the modem set-up to 7 bits, no parity, 1 configured as 8 bits, no parity, and 1 stop stop bit, or add MTC or SCH to the ESDI user bit.
  • Page 216 Page 216 of 408 Installing and connecting SDI and ethernet ports Table 26 Default port configuration for the NDK20EA SSC card Port Baud rate Data bits Stop bits Parity MTC/SCH/BUG Set by a DIP switch None MTC/SCH/BUG 1200 (See Note 1) None MTC/SCHBUG 1200 (See Note 2)

  • Page 217: Ntdk23, Ntdk25 And Ntdk80 Fiber Receiver Cards

    Installing and connecting SDI and ethernet ports Page 217 of 408 Connect the system terminal to the cable marked “port 0” on the NTBK48 3-port cable. A Modem Eliminator Adapter is required to connect the Option 11C to a TTY terminal. If the system is to be accessed remotely, connect the system modem to the cable marked “port 1”...

  • Page 218: Ntak02 Sdi/Dch Card

    Page 218 of 408 Installing and connecting SDI and ethernet ports Figure 90 Cable connection NTAK1118 cable connection Connect the NTAK1118 SDI cable to a TTY terminal. Note: A Modem Eliminator is required to connect to a terminal. If the system is to be accessed remotely, connect the SDI cable to the system modem.
  • Page 219 Installing and connecting SDI and ethernet ports Page 219 of 408 Note: Only the DCH functionality is supported in IP Expansion cabinets. ESDL, AML and TTY are not supported. NTAK02 ports can be used to access overlay software. These ports should be defined in the configuration database as the SDI logical type.
  • Page 220 Page 220 of 408 Installing and connecting SDI and ethernet ports Table 28 NTAK02 connections at the cross-connect terminal — Port 1 Cable RS422 RS232 Designations Designations (I=input (I=input Signal O=output) O=output) Signal Pair Color SCTEA SCTA – – – –...
  • Page 221 Installing and connecting SDI and ethernet ports Page 221 of 408 Table 29 NTAK02 connections at the cross-connect terminal — Port 2 Cable RS422 RS232 Designations Designations (I=input (I=input Signal O=output) O=output) Signal Pair Color BK-G – – – – –...

  • Page 222: Ntak03 Tds/Dtr Card

    Page 222 of 408 Installing and connecting SDI and ethernet ports Table 30 NTAK02 connections at the cross-connect terminal — Port 3 (Part 2 of 2) Y-BR CH/CI CH/CI BR-Y V-BL SCRA SCTEA BL-V SCTA RXCA – SCRB SCTEB – –...
  • Page 223 Installing and connecting SDI and ethernet ports Page 223 of 408 Table 31 NTAK03 connections at the cross-connect terminal — Port 0 Designations Pair Color Signal (I=input, O=output) W-BL BL-W – – W-BR BR-W – – Table 32 NTAK03 connections at the cross-connect terminal — Port 1 Designations Pair Color...

  • Page 224: Terminal Setup

    Page 224 of 408 Installing and connecting SDI and ethernet ports Terminal setup The terminal can be setup at any time, but it is not recommended that you do so during data transmission to avoid potential data loss. Setup values are given in Table 34 on page 225, Table 35 on page 226 and Table 36 on page 227.
  • Page 225 Installing and connecting SDI and ethernet ports Page 225 of 408 Table 34 HP700/32 setup values G loba l s e t- up s c r ee n H os t P or t K e y boa r d U .S.
  • Page 226 Page 226 of 408 Installing and connecting SDI and ethernet ports Table 35 VT420 setup values Global Set-Up On Line Comm1=RS232 Sessions on Comm1 70Hz CRT Saver Printer Shared Display Set-Up 80 Columns No Status Display Interpret Controls Cursor Steady Auto Wrap 3x24 pages Jump Scroll...
  • Page 227 Installing and connecting SDI and ethernet ports Page 227 of 408 Table 36 VT220 setup values Global Set-Up On Line Comm1=RS232 Sessions on Comm1 70Hz CRT Saver Printer Shared Display Set-Up 80 Columns Light Text, Dark Screen Interpret Controls Cursor Auto Wrap Block Style Cursor Jump Scroll...

  • Page 228: Installing And Connecting An Ethernet Cable

    Page 228 of 408 Installing and connecting SDI and ethernet ports Installing and connecting an ethernet cable IP expansion 10BaseT port The Option 11C system provides one 10 Mbps Ethernet connection to a Local Area Network (LAN). The Ethernet cable connector is located just left of the retaining bar in the main and IP expansion cabinets as shown in Figure 91 on page 228.
  • Page 229 Installing and connecting SDI and ethernet ports Page 229 of 408 Note: An Ethernet connection is not available on systems equipped with an NTDK26 Backwards Compatible Daughterboard on the NDK20EA SSC card (usually two-cabinet systems interconnected with copper cable). J7 Jumper plug The J7 jumper plug must be in place on the NDK20EA SSC card for the Ethernet function to operate.
  • Page 230 Page 230 of 408 Installing and connecting SDI and ethernet ports Figure 92 J7 Jumper Plug location on NDK20EA SSC card Location of J7 jumper plug connector 553-3021-210 Standard 7.00 January 2002...
  • Page 231 Installing and connecting SDI and ethernet ports Page 231 of 408 Procedure 37 Connecting the Ethernet cable Insert the 50-pin end of the cable into the cable connector on the left side of the retaining bar as shown below. Route the cable through the fifth cable groove from the left side. The ethernet cable is a 50-pin amphenol to 15-pin AUI adaptor cable (Part number for ethernet cable NTDK27 A06030723).
  • Page 232 Page 232 of 408 Installing and connecting SDI and ethernet ports 553-3021-210 Standard 7.00 January 2002...
  • Page 233 Page 233 of 408 System software installation Contents This section contains information on the following topics: Reference list ..........233 General information .
  • Page 234 Page 234 of 408 System software installation If the keycodes are unsuccessful, check the following: • software issue • feature set name • any additional packages • • ISM parameters • security ID • auxiliary ID (the old site ID, if this is an upgrade) •...
  • Page 235 System software installation Page 235 of 408 • Validate keycodes • Set the system time and date • Reboot the Main cabinet • Wait for link to come up. Note: IP expansion cabinet software must be the same software version as the main Option 11C cabinet. CAUTION Wear the antistatic wrist strap provided in the bottom of the cabinet before handling circuit cards.
  • Page 236 Page 236 of 408 System software installation Note: The Time and Date prompt appears only when the Install Setup Program detects a system Year Date that is not in the range of 1995-2095. The responses shown below are examples of how to enter the system Time and Date: Enter new time (hh/mm/ss) 08:00:00 <cr>...
  • Page 237 System software installation Page 237 of 408 Indicate whether or not packages are to be added. Feature Set Selection: Enhanced Business Do you wish to add packages? Select no, yes or abort: n <cr> (no) y <cr> (yes) a <cr> (abort) Note: Abort returns you to the main menu.
  • Page 238 Page 238 of 408 System software installation Select a Database. Select menu option 1 or 2 for a new system installation: 1. Pre-Configured database - Enhanced Business 2. Basic Configuration (Release 22) 3. CCBR Restore File 4. Option 11/11E Software Cartridge [q]uit, [p]revious, [m]ain menu, [h]elp or [?], <cr>...
  • Page 239 System software installation Page 239 of 408 DATA PORTS (2500) maximum number of data ports DIGITAL TELEPHONES maximum number Digital sets (2500) INTERNET TELEPHONES maximum number of Internet sets PHANTOM PORTS (2500) maximum number of phantom ports WIRELESS TELEPHONES (2500) maximum number Wireless sets WIRELESS VISITORS maximum number Wireless Visitors...
  • Page 240 Page 240 of 408 System software installation DATA PORTS (2500) DIGITAL TELEPHONES (2500) INTERNET TELEPHONES PHANTOM PORTS (2500) WIRELESS TELEPHONES (2500) WIRELESS VISITORS ITG ISDN TRUNKS (2500) TRADITIONAL TRUNKS (2500) TMDI D-CHANNELS (100) SURVIVABILITY (0) 4 Confirm ISM parameters. New ISM parameters are: (200) ACDN (300)
  • Page 241 System software installation Page 241 of 408 Is this correct? n <cr> (no) y <cr> (yes) a <cr> (abort, return to main menu) If the response was NO go to Step 10 on page 238. the response was YES go to Step 12 on page 241. Define the AUX ID.
  • Page 242 Page 242 of 408 System software installation Review and confirm information entered. New Installation Information Summary: Security ID : xxxxxxxx Aux ID : xxxxxxxx Cabinet Type : MAIN Feature Set : Enhanced Business Additional Pkgs : 215-235 Database : Company ABC S/W Release : 2520F 2520X ISM Parameters...
  • Page 243 System software installation Page 243 of 408 Enter the keycodes Note: See Keycode Information on page 233 for important information on Keycodes. Enter new Keycodes: Example: Key 1: Key 2: Key 3: xxxxxxxx <cr> yyyyyyyy <cr> zzzzzzzz <cr> Keycode validation successful. ***WARNING*** A system restart will be invoked as part of the software installation process.
  • Page 244 Page 244 of 408 System software installation Maintenance Perform an EDD using LD 43. Refer to (553-3001-511) for further information on LD 43. Configure the IP Daughterboards’ MAC and IP addresses. Refer to Maintenance LD 117 in (553-3001-511). —————————— End of Procedure —————————— Software installation on the IP Expansion Cabinet using the preprogrammed software daughterboard Point-to-Point or Layer 2 with bootp configuration...
  • Page 245 System software installation Page 245 of 408 1. Automatically Using BootP 2. Using Manual Configuration 3. Keep Existing Configuration [q]uit, [p]revious, [m]ain menu, [h]elp or [?], <cr> - redisplay Enter Selection: 2 Configure IP Expansion Parameters. For the following menu, the sample IP parameters will be used: IP address of the expansion cabinet 100BaseT(F): 47.147.20.101;...
  • Page 246 Page 246 of 408 System software installation 553-3021-210 Standard 7.00 January 2002...

  • Page 247: Reference List

    Page 247 of 408 Connecting the telephones Contents This section contains information on the following topics: Reference list ..........247 General information .

  • Page 248: Connecting The Telephones

    Page 248 of 408 Connecting the telephones General information This chapter contains instructions for connecting telephones to the cross-connect terminal. It also contains the location of the individual extension numbers (DNs) when you are implementing one of the default numbering plans and how to activate each telephone. Refer to the instructions provided with the telephone or console and to Telephone and Attendant Console: Installation (553-3001-215) for detailed information about installing telephones and consoles.

  • Page 249: Cross-Connecting Telephones

    Connecting the telephones Page 249 of 408 Cross-connecting telephones Connect the telephones according to the following figures. Cross-connections for Analog (500/2500 type) telephones are shown in Figure 94 on page 250, and for Meridian Digital Telephones in Figure 95 on page 251. Procedure 40 Cross-connecting telephones Locate telephone terminations at the cross-connect terminal.
  • Page 250 Page 250 of 408 Connecting the telephones Figure 94 NE-500/2500-type telephone cross-connections 553-3021-210 Standard 7.00 January 2002...

  • Page 251: Connecting Telephones Without A Pftu

    Connecting the telephones Page 251 of 408 Figure 95 Meridian Digital Telephone cross-connections Connecting telephones without a PFTU Procedure 41 Connecting telephones without a PFTU Locate the telephone terminations on the cross-connect terminal. Connect one end of the cross-connect wire to the leads of the telephone.

  • Page 252: Connecting 500/2500-Type Telephones With A Pftu

    Page 252 of 408 Connecting the telephones • Table 44, “Expansion Cabinet 2 Default DN assignments,” on page 265 • Table 45, “Expansion Cabinet 3 Default DN assignments,” on page 267 • Table 46, “Expansion Cabinet 4 Default DN assignments,” on page 268 The telephone can now be activated as described in “Activating telephones”...

  • Page 253: Connecting Off-Premise Telephones

    Connecting the telephones Page 253 of 408 • Table 43, “Expansion Cabinet 1 Default DN assignments,” on page 264 • Table 44, “Expansion Cabinet 2 Default DN assignments,” on page 265 • Table 45, “Expansion Cabinet 3 Default DN assignments,” on page 267 •...
  • Page 254 Page 254 of 408 Connecting the telephones Procedure 43 Connecting an off-premise telephone Mount the NTAK92AA Off-Premise protection module on the wall using four #10 1/2 in (minimum) screws. Connect a #6 AWG (#40 Metric Wire Gauge) from the ground lug at the bottom of the NTAK92AA Off-Premise protection module to an earth ground.

  • Page 255: Connecting An Attendant Console

    Connecting the telephones Page 255 of 408 Install the line card in its assigned position. The telephone can now be activated as described in “Activating telephones” on page 269. Connecting an attendant console Procedure 44 Connecting attendant console Locate the attendant console terminations at the cross-connect terminal.
  • Page 256 Page 256 of 408 Connecting the telephones Figure 96 NTAK92AA Off-Premise Protection Module connections 553-3021-210 Standard 7.00 January 2002...
  • Page 257 Connecting the telephones Page 257 of 408 Figure 97 Attendant console connections Option 11C Planning and Installation Guide...
  • Page 258 Page 258 of 408 Connecting the telephones Table 37 Terminal number assignments — Main and Expansion Cabinets 1 and 2 (Part 1 of 2) Card First TN..Last TN Cable Cabinet 01 00..01 15 Main 02 00..02 15 Main 03 00..03 15 Main 04 00..04 15 Main...
  • Page 259 Connecting the telephones Page 259 of 408 Table 37 Terminal number assignments — Main and Expansion Cabinets 1 and 2 (Part 2 of 2) 21 00..21 15 Expansion Cabinet 2 22 00..22 15 Expansion Cabinet 2 23 00..23 15 Expansion Cabinet 2 24 00..24 15 Expansion Cabinet 2 25 00..25 15...
  • Page 260 Page 260 of 408 Connecting the telephones Table 38 Terminal number assignments – Expansion Cabinets 3 and 4 (Part 2 of 2) 41 00..41 15 Expansion Cabinet 4 42 00..42 15 Expansion Cabinet 4 43 00..43 15 Expansion Cabinet 4 44 00..44 15 Expansion Cabinet 4 45 00..45 15...
  • Page 261 Connecting the telephones Page 261 of 408 Table 39 Power fail transfer unit connections QUA6 J1 Cable Function Pair Color Connects to Connect to the telephone R-BL Connect to the telephone line card BL-R PFT 1 Connect to the central office trunk Connect to the trunk line card R-BR Connect to the telephone...
  • Page 262 Page 262 of 408 Connecting the telephones Table 40 Power fail transfer unit connections QUA6 J1 Cable Function Pair Color Connects to Connect to the telephone Connect to the telephone line card PFT 4 Y-BR Connect to the central office trunk BR-Y Connect to the trunk line card V-BL...
  • Page 263 Connecting the telephones Page 263 of 408 Table 41 Cable Pair Color Combinations W-Bl W-BR R-BL Color Bl-W BR-W BL-R Unit R-BR BK-BL BK-O BK-G BK-BR BK-S Color BR-R BL-BK O-BK G-BK BR-BK S-BK Unit Table 42 Main Cabinet Default DN assignments (Part 1 of 2) Cable Unit Default Directory Number (DN)
  • Page 264 Page 264 of 408 Connecting the telephones Table 42 Main Cabinet Default DN assignments (Part 2 of 2) 2280 2281 2282 2283 2284 2285 2286 2287 0 - 7 2288 2289 2290 2291 2292 2293 2294 2295 8 - 15 2296 2297 2298...
  • Page 265 Connecting the telephones Page 265 of 408 Table 43 Expansion Cabinet 1 Default DN assignments (Part 2 of 2) 2408 2409 2410 2411 2412 2413 2414 2415 0 - 7 2416 2417 2418 2419 2420 2421 2422 2423 8 - 15 2424 2425 2426...
  • Page 266 Page 266 of 408 Connecting the telephones Table 44 Expansion Cabinet 2 Default DN assignments (Part 2 of 2) 2536 2537 2538 2539 2540 2541 2542 2543 0 - 7 2544 2545 2546 2547 2548 2549 2552 2551 8 - 15 2552 2553 2554...
  • Page 267 Connecting the telephones Page 267 of 408 Table 45 Expansion Cabinet 3 Default DN assignments (Part 1 of 2) Cable Unit Default Directory Number (DN) 2680 2681 2682 2683 2684 2685 2686 2687 0 - 7 2688 2689 2690 2691 2692 2693 2694...
  • Page 268 Page 268 of 408 Connecting the telephones Table 45 Expansion Cabinet 3 Default DN assignments (Part 2 of 2) 2824 2825 2826 2827 2828 2829 2830 2831 0 - 7 2832 2833 2834 2835 2836 2837 2838 2839 8 - 15 Table 46 Expansion Cabinet 4 Default DN assignments (Part 1 of 2) Cable...

  • Page 269: Cross-Connecting Terminal Digital Subscriber Loops

    Connecting the telephones Page 269 of 408 Table 46 Expansion Cabinet 4 Default DN assignments (Part 2 of 2) 2952 2953 2954 2955 2956 2957 2958 2959 0 - 7 2960 2961 2962 2963 2964 2965 2966 2967 8 - 15 2968 2969 2970...

  • Page 270: Activating A Default Model With A Character Display

    Page 270 of 408 Connecting the telephones Telephone tones There are a number of different telephone tones. The following table includes tones that you will hear during telephone activation: Table 47 Telephone tones Dial tone A continuous tone. Special dial tone Three beeps followed by continuous dial tone.
  • Page 271 Connecting the telephones Page 271 of 408 Note 1: If you do not see the prompt “MODEL X” after lifting the handset, disconnect the telephone from the wall jack, wait five seconds, and re-insert the telephone into the jack. The telephone now shows “MODEL X”...

  • Page 272: Activating A Default Model Without A Character Display

    Page 272 of 408 Connecting the telephones Note 3: Each prompt for another extension number is accompanied by special dial tone. When you are programming an extension number, the lamp associated with that number on the telephone is lit. Hang up the telephone receiver. After approximately 10 seconds, the telephone is configured.

  • Page 273: Activating A Customized Model With A Character Display

    Connecting the telephones Page 273 of 408 If the extension number is not available for use, you hear a fast, high-pitched broken tone (overflow tone). (This happens when you choose an extension number manually or when extension numbers are entered for additional keys. A default extension number will not be offered if it is not available).
  • Page 274 Page 274 of 408 Connecting the telephones Press the digits associated with the customized model and press the pound key (#). Dial tone disappears after the first digit is pressed and you hear special dial tone after you press the pound key. If you enter a valid model number the character display reads “OK, EXTENSION?”.

  • Page 275: Activating A Customized Model Without A Character Display

    Connecting the telephones Page 275 of 408 Activating a customized model without a character display Procedure 48 Activating a customized telephone Plug the telephone set into the jack and wait 20 seconds before picking up the handset. If you do not receive dial tone, replace the handset and wait another 10 seconds before going off-hook again.

  • Page 276: Activating Terminals On A Dsl

    Page 276 of 408 Connecting the telephones Activating terminals on a DSL Refer to Option 11C ISDN BRI Hardware Installation and Maintenance (553-3011-311), for information about activating and initializing the various terminals that can be connected to a terminal DSL. 553-3021-210 Standard 7.00 January 2002...
  • Page 277 Page 277 of 408 Connecting the trunks Contents This section contains information on the following topics: Reference list ..........278 General information .

  • Page 278: Reference List

    Page 278 of 408 Connecting the trunks Activating a default model trunk ....... 303 Activating a selected model trunk .

  • Page 279: Connecting Trunks Without Pftu

    Connecting the trunks Page 279 of 408 Connecting trunks without PFTU Procedure 49 Connecting trunks without PFTU From the assignment record, determine the location of the trunk connection and its associated Terminal Number (TN) at the cross-connect terminal. With cross-connecting wire, connect the trunk to the TN. Make sure that the wiring is not reversed and is on the proper terminals.
  • Page 280 Page 280 of 408 Connecting the trunks Table 48 Power Failure Transfer Unit connections (Part 1 of 2) QUA6 J1 cable Function Pair Color Connects to Comments Connect to the telephone R-BL Connect to the Connect to TN assigned to BL-R telephone line card the telephone...
  • Page 281 Connecting the trunks Page 281 of 408 Table 48 Power Failure Transfer Unit connections (Part 2 of 2) Connect to the telephone Connect to the Connect to TN assigned to telephone line card the telephone Y-BR Connect to the central BR-Y office trunk Connect to the trunk...

  • Page 282: Trunk Connections

    Page 282 of 408 Connecting the trunks Trunk Connections NT8D14 Universal trunk card The universal trunk card provides eight analog trunks which can function in the modes shown in Table 49 on page 282. Table 49 NT8D14 Universal trunk — modes and option settings Jumper Modes Location...
  • Page 283 Connecting the trunks Page 283 of 408 Table 50 NT8D14 Universal trunk connections (Part 1 of 2) Paging All other Cable from cabinet mode mode modes Pair Color Designations W-BL BL-W Unit Unit W-BR BR-W Unit R-BL BL-R Unit R-BR BR-R Unit BK-BL...

  • Page 284: Nt8D15 E&M Trunk Card

    Page 284 of 408 Connecting the trunks Table 50 NT8D14 Universal trunk connections (Part 2 of 2) BK-G G-BK Unit BK-BR BR-BK BK-S S-BK Unit Y-BL BL-Y Note: Remaining pairs are spares. NT8D15 E&M Trunk card Table 51 NT8D15 E&M Trunk card (Part 1 of 2) Cables J1 through J10 Paging...
  • Page 285 Connecting the trunks Page 285 of 408 Table 51 NT8D15 E&M Trunk card (Part 2 of 2) Unit R-BL BL-R ESCG R-BR BR-R Unit BK-BL BL-BK BK-O O-BK ESCG BK-G G-BK Unit BK-BR BR-BK BK-S S-BK Y-BL BL-Y ESCG Note: A and B are the transmit and receive pairs, where: TA = Transmit Tip, and RA = Receive Tip TB = Transmit Ring, and RB = Receive Ring Option 11C...

  • Page 286: Nt6D70 Silc And Nt6D71 Uilc Cards

    Page 286 of 408 Connecting the trunks NT6D70 SILC and NT6D71 UILC cards Refer to Option 11C ISDN BRI Hardware Installation and Maintenance (553-3011-311) for a complete description of trunk DSL installation and connections. Trunk connections (Europe) E&M TIE trunk card (2-Wire) Note: Refer to the Intelligent Peripheral Equipment Supplements for a complete description of European circuit cards.
  • Page 287 Connecting the trunks Page 287 of 408 Table 53 E&M 2-wire Type 2 Lead designations Pins Pair color Unit number Unit R-BL BL-R Unit Unit BK-BL BL-BK BK-O O-BK BK-BR BR-BK Unit BK-S S-BK Y-BL BL-Y Option 11C Planning and Installation Guide...

  • Page 288: E&M Tie Trunk Card (4-Wire)

    Page 288 of 408 Connecting the trunks E&M TIE trunk card (4-Wire) Table 54 E&M TIE trunk card (4-wire) Cables J1 through J20 Column 1 Type 1 Column 2 Type from cabinets & 5 1 & 5 Pair Color Unit # Pins Lead Designations W-BL...
  • Page 289 Connecting the trunks Page 289 of 408 Table 55 E&M TIE trunk card (4-wire) (Part 1 of 2) Cables J1 through J20 from Column 1 Type Column 2 Type cabinets Pair Color Unit # Pins Lead Designations W-BL BL-W Unit 0 W-BR SIG0A BR-W...
  • Page 290 Page 290 of 408 Connecting the trunks Table 55 E&M TIE trunk card (4-wire) (Part 2 of 2) Cables J1 through J20 from Column 1 Type Column 2 Type cabinets BK-G G-BK BK-BR BR-BK Unit 3 BK-S S-BK Y-BL SIG3A BL-Y SIG3B Note: The cable pair designated TA, TB is the transmit pair.

  • Page 291: E&M Tie Trunk Card (2280Hz)

    Connecting the trunks Page 291 of 408 E&M TIE trunk card (2280Hz) Table 56 E&M 2280 Hz TIE trunk connections Lead designations Pins Pair color Unit number W-BL BL-W Unit 0 Unit 1 R-BL BL-R R-BR BR-R Unit 2 BK-G G-BK Unit 3 BK-BR...

  • Page 292: E&M Tie Trunk Card (Ran)

    Page 292 of 408 Connecting the trunks E&M TIE trunk card (RAN) Table 57 E&M 2-wire Recorded Announcement trunk connections Lead designations Pins Pair color Unit number W-BL BL-W Unit 0 SIG B W-BR SIG A BR-W Unit 1 SIG B SIG A R-BR BR-R...

  • Page 293: Co & Did Trunk Card

    Connecting the trunks Page 293 of 408 Table 58 E&M 2-wire Music trunk connections (Part 2 of 2) R-BR Unit BR-R BK-G Unit G-BK CO & DID trunk card Table 59 Central Office & Direct Inward Dial trunk connections (Part 1 of 2) Cable from cabinets Column 1 Column 2...
  • Page 294 Page 294 of 408 Connecting the trunks Table 59 Central Office & Direct Inward Dial trunk connections (Part 2 of 2) R-BR BR-R Unit 4 PPM4 — Spare BK-BL BL-BK Unit 5 BK-O PPM5 O-BK — Spare BK-G G-BK Unit 6 BK-BR PPM6 BR-BK...

  • Page 295: Central Office Trunk Card

    Connecting the trunks Page 295 of 408 Central Office trunk card Table 60 Central Office trunk connections (Part 1 of 2) Cable from cabinets Pair Color Pins Lead designations W-BL BL-W Unit 0 W-BR BR-W R-BL BL-R Unit 1 R-BR BR-R Unit 2 BK-BL...

  • Page 296: Trunk Connections (Uk)

    Page 296 of 408 Connecting the trunks Table 60 Central Office trunk connections (Part 2 of 2) BK-G G-BK BK-BR BR-BK Unit 3 BK-S S-BK Y-BL BL-Y Trunk connections (UK) NT5K17 Direct Inward Dial card terminations Cross connect the NT5K17 DDI card as follows: Table 61 NT5K17 DDI cross-connect terminations (Part 1 of 2) Pair...

  • Page 297: Nt5K18 Exchange Line Trunk Card Terminations

    Connecting the trunks Page 297 of 408 Table 61 NT5K17 DDI cross-connect terminations (Part 2 of 2) Pair Pins Pair color Unit number Unit 3 R-BR BR-R Unit 4 BK-BL BL-BK Unit 5 BK-O O-BK BK-G G-BK Unit 6 BK-BR BR-BK BK-S S-BK...
  • Page 298 Page 298 of 408 Connecting the trunks Table 62 NT5K18 Exchange line trunk card cross-connect terminations (Part 1 of 2) Pair Pins Pair color Unit number W-BL BL-W Unit 0 Unit 1 W-BR BR-W Unit 2 R-BL BL-R Unit 3 R-BR BR-R Unit 4...

  • Page 299: Nt5K19 Analog Tie Line Trunk Card Terminations

    Connecting the trunks Page 299 of 408 Table 62 NT5K18 Exchange line trunk card cross-connect terminations (Part 2 of 2) Pair Pins Pair color Unit number BK-G G-BK Unit 6 BK-BR BR-BK BK-S S-BK Unit 7 Y-BL BL-Y NT5K19 Analog TIE line trunk card terminations Cross connect the NT5K19 analog TIE line trunk card as shown in Table 63.
  • Page 300 Page 300 of 408 Connecting the trunks Table 63 NT5K19 2W paging mode terminations (Part 2 of 2) Pair Pins Pair color Unit number Unit 2 BK-O O-BK BK-BR BR-BK Unit 3 Y-BL BL-Y Table 64 NT5K19 2W Type 1 mode terminations Pair Pins Pair color...
  • Page 301 Connecting the trunks Page 301 of 408 Table 65 NT5K19 4W Type 1 mode terminations Pair Pins Pair color Unit number W-BL BL-W Unit 0 R-BL BL-R Unit 1 R-BR BR-R Unit 2 BK-BL BL-BK BK-G G-BK BK-BR BR-BK Unit 3 BK-S S-BK Option 11C...
  • Page 302 Page 302 of 408 Connecting the trunks Table 66 NT5K19 AC15 mode pair terminations Pair Pins Pair color Unit number W-BL BL-W Unit 0 Unit 1 R-BL BL-R R-BR BR-R Unit 2 BK-G G-BK Unit 3 BK-BR BR-BK Table 67 NT5K19 Recorded announcement mode pair terminations Pair Pins...
  • Page 303 Connecting the trunks Page 303 of 408 Table 67 NT5K19 Recorded announcement mode pair terminations R-BR BR-R Unit 2 SIG B BK-O SIG A O-BK BK-G G-BK Unit 3 SIG B Y-BL SIG A BL-Y Activating a default model trunk Due to the automatic thirty second time-out on the administration menu, be sure that you have prepared the data that you want to input before you begin.
  • Page 304 Page 304 of 408 Connecting the trunks Select “1 ADD TRUNK” by entering the number “1”. The prompt “ROUTE ACCESS?” appears on the character display. Enter the access code of the route to which you want to add a trunk and press the pound key (#). The prompt “TN?”...
  • Page 305 Connecting the trunks Page 305 of 408 Activating a selected model trunk Due to the automatic thirty second time-out on the administration menu, be sure that you have prepared the data that you want to input before you begin. To determine corresponding TNs and trunks, check the location of trunk cards in the cabinet or use LD 32.
  • Page 306 Page 306 of 408 Connecting the trunks After a delay of approximately 4 seconds you hear special dial tone and the sequence is repeated when the following prompt appears on the character display. “TN?” Hang up or repeat the sequence. The sequence ends when the last unit in the card is used and the program is complete, or when you hang up the telephone receiver.
  • Page 307 Page 307 of 408 Connecting an external alarm Contents This section contains information on the following topics: General information ........307 Alarm port assigned in software .
  • Page 308 Page 308 of 408 Connecting an external alarm Procedure 53 Installing an alarm using an alarm port Install an analog (500/2500)-type line as described in “Connecting the telephones” on page 247. Install an analog (500/2500)-type telephone or other similar alerting device used as an alarm to the line. The set can be typically assigned as a Model 20.
  • Page 309 Connecting an external alarm Page 309 of 408 Table 68 AC and DC capacities Maximum switching power 50.0 V A. 30.0 W Maximum switching voltage 125.0 V rms 150.0 V Maximum switching current 0.5 A 0.5 A Figure 98 on page 310 shows an example of the contacts on one unit (PFT1) of the PFTU.
  • Page 310 Page 310 of 408 Connecting an external alarm Figure 98 Contacts in PFTU Table 69 Power fail transfer unit connections (Part 1 of 3) Unit Pair Color Normal mode Failure mode Makes with 6T Opens 6T and 6R and 6R Makes with 7T and 7R R-BL Makes with 5T...
  • Page 311 Connecting an external alarm Page 311 of 408 Table 69 Power fail transfer unit connections (Part 2 of 3) R-BR Makes with 10T Opens 10T and 10R BR-R and 10R Makes with 11T and 11R Makes with 9T Open and 9R BK-BL Makes with 12T Opens 12T and 12R...
  • Page 312 Page 312 of 408 Connecting an external alarm Table 69 Power fail transfer unit connections (Part 3 of 3) V-BL Makes with 22T Opens 22T and 22R BL-V and 22R Makes with 23T and 23R Makes with 21T Open and 21R Makes with 24T Opens 24T and 24R and 24R...
  • Page 313 Page 313 of 408 Pre-programmed data Contents This section contains information on the following topics: General information ........314 Passwords and codes .

  • Page 314: General Information

    Page 314 of 408 Pre-programmed data General information When an Option 11C system is initially installed, customer data must be entered into the overlay programs. Telephones, for example, must be assigned features on their keys to allow them to function properly. However, the Software Daughterboard can be pre-programmed with the customer data.

  • Page 315: Passwords And Codes

    Pre-programmed data Page 315 of 408 Passwords and codes The following table shows each function in the left column and a corresponding password or code on the right. Table 70 Passwords and codes Function Code or extension(s) TTY password 0000 (For access to TTY Option 11C overlays) Meridian Mail administration password adminpwd...

  • Page 316: First Digits

    Page 316 of 408 Pre-programmed data • Meridian Mail Virtual Agents are pre-configured for Card 10 in Unit 0, 1, 2, 8, 9, and 10 of the main cabinet. • The Central Answering Position has an extension of 7700. This extension can be changed in LD 15.
  • Page 317 Pre-programmed data Page 317 of 408 The digit “7” in the default numbering plan is programmed with many system features to assist you in configuring the Option 11C system. If you have the Meridian Mail card option software, it automatically configures user mail boxes to correspond with the 2200 numbering plan.

  • Page 318: Important Extension Numbers

    Page 318 of 408 Pre-programmed data Important extension numbers Table 72 Default numbering plan—important extension numbers Extension Attendant extension First number in numbering plan 2200 Night number 7700* Queue for Central Answering Position 7700 * General ACD queue 7750 * Meridian Mail miscellaneous ACD queues: 7000-7009 Meridian Mail extension...
  • Page 319 Pre-programmed data Page 319 of 408 Extensions assigned to card slots Table 73 Main cabinet Slot number Extension numbers 2200 through 2215 2216 through 2231 2232 through 2247 2248 through 2263 2264 through 2279 2280 through 2295 2296 through 2311 2312 through 2327 2328 through 2343 2344 through 2359...
  • Page 320 Page 320 of 408 Pre-programmed data Table 74 Expansion cabinet 1 Slot number Extension Numbers 2360 through 2375 2376 through 2391 2392 through 2407 2408 through 2423 2424 through 2439 2440 through 2455 2456 through 2471 2472 through 2487 2488 through 2503 2504 through 2519 553-3021-210 Standard 7.00...
  • Page 321 Pre-programmed data Page 321 of 408 Table 75 Expansion cabinet 2 Slot number Extension Numbers 2520 through 2535 2536 through 2551 2552 through 2567 2568 through 2583 2584 through 2599 2600 through 2615 2616 through 2631 2632 through 2647 2648 through 2663 2664 through 2679 Option 11C Planning and Installation Guide...
  • Page 322 Page 322 of 408 Pre-programmed data Table 76 Expansion cabinet 3 Slot number Extension Numbers 2680 through 2695 2696 through 2711 2712 through 2727 2728 through 2743 2744 through 2759 2760 through 2775 2776 through 2791 2792 through 2807 2808 through 2823 2824 through 2839 553-3021-210 Standard 7.00...
  • Page 323 Pre-programmed data Page 323 of 408 Table 77 Expansion cabinet 4 Slot number Extension Numbers 2840 through 2855 2856 through 2871 2872 through 2887 2888 through 2903 2904 through 2919 2920 through 2935 2936 through 2951 2952 through 2967 2968 through 2983 2984 through 2999 Option 11C Planning and Installation Guide...

  • Page 324: Flexible Feature Codes

    Page 324 of 408 Pre-programmed data Flexible Feature Codes Flexible Feature Code (FFC) data is used in many administrative procedures. The table below lists the FFCs for the Option 11C system. Table 78 Flexible Feature Codes FFC Prompt Definition ASRC Automatic Set Relocation AREM Automatic Set Removal Code...

  • Page 325: Sdi Ports

    Pre-programmed data Page 325 of 408 SDI ports The minimum system port configuration for Option 11C is 3 SDI ports, all of which can be found on the NTDK20 System Core card. You can obtain additional ports by installing an NTAK02 SDI/DCH circuit card.
  • Page 326 Page 326 of 408 Pre-programmed data Enhanced Serial Data Interface (ESDI) port Port 9 is pre-programmed as an ESDI port and supports Meridian Mail. It functions as a Command Status Link with the settings given in Table 80: 553-3021-210 Standard 7.00 January 2002...

  • Page 327: Esdi Settings

    Pre-programmed data Page 327 of 408 ESDI settings Table 80 ESDI settings Setting Code 4800 CLOK IADR RADR RXMT ORUR ABOR USER Telephone tones The telephone tones in North America are as follows: Dial tone – A continuous tone. Special dial tone – Three beeps followed by continuous dial tone. Overflow tone –...
  • Page 328 Page 328 of 408 Pre-programmed data Relocation tone – A short high-pitched beep lasting for 4 seconds, followed by silence. 553-3021-210 Standard 7.00 January 2002...

  • Page 329: Trunk Routes

    Pre-programmed data Page 329 of 408 Trunk routes Table 81 on page 329 shows pre-programmed trunk route information that you need on hand to activate and modify trunks. Table 81 Pre-programmed trunk route information Route Type Access Code Mode Interface 00 * 7100 –...

  • Page 330: Trunk Models

    Page 330 of 408 Pre-programmed data follows: Trunk models Note: All trunks are programmed as immediate start / supervision = yes, with the exception of trunks with an asterisk beside them (*). Trunks marked with an asterisk (*) are set for wink start / supervision = yes. Table 82 Trunk model information (Part 1 of 4) DIP or...
  • Page 331 Pre-programmed data Page 331 of 408 Table 82 Trunk model information (Part 2 of 4) 3COM/900 3COM/900 - /600 — - / 600 — 3COM/600 (Wink Start Supv = Yes) 3COM/600 (Wink Start Supv = Yes) 3COM/900 (Wink Start Supv = Yes) 3COM/900 (Wink Start Supv = Yes)
  • Page 332 Page 332 of 408 Pre-programmed data Table 82 Trunk model information (Part 3 of 4) 3COM/900 (Wink Start Supv = Yes) 3COM/900 (Wink Start Supv = Yes) 3COM/600 3COM/600 3COM/600 3COM/600 3COM/900 3COM/900 3COM/900 3COM/900 3COM/600 600/1200 600/1200 3COM/600 3COM/600 3COM/600 3COM/600 3COM/900...
  • Page 333 Pre-programmed data Page 333 of 408 Table 82 Trunk model information (Part 4 of 4) 3COM/900 -/600 — - /600 — 3COM/600 3COM/600 3COM/600 3COM/600 3COM/900 3COM/900 3COM/900 3COM/900 * These trunks are set for Wink start. Option 11C Planning and Installation Guide...

  • Page 334: Model Telephones

    Page 334 of 408 Pre-programmed data Model telephones Note: OPS telephones do not have their own telephone models. You can, however, create OPS models in by entering DD in response to the CDEN prompt in LD 10. With the exception of the administration and CAP model telephones, the models are organized according to software packages, as follows: Administration telephones •...
  • Page 335 Pre-programmed data Page 335 of 408 • M2006 - two models • M2008 - two models • M2616 - one model Health Care telephones • M2006 - one model • M2008 - four models • M2616 - two models. This section provides model numbers for each telephone type and tables showing the numbering and placement of the keys, and the feature assigned to each key.
  • Page 336 Page 336 of 408 Pre-programmed data Table 84 Class of Service options - digital telephones Prompt Meaning Toll Denied Automatic Answerback Denied Automatic Digit Display Hunting Allowed Last Number Redial Allowed Call Forward No Answer Allowed Pickup Allowed Ring Again Allowed Message Waiting Allowed 553-3021-210 Standard 7.00...
  • Page 337 Pre-programmed data Page 337 of 408 Table 85 Class of Service Options - ACD telephones Prompt Meaning Unrestricted Automatic Answerback Denied Automatic Digit Display Hunting Allowed Last Number Redial Allowed Call Forward No Answer Allowed Pickup Denied Message Waiting Allowed Option 11C Planning and Installation Guide...

  • Page 338: Administration Telephones

    Page 338 of 408 Pre-programmed data Administration telephones M2008 model 99 Intended use: Administration (maintenance) telephone Assigned Class of Service options: MTA/ADD/LNA/FNA/GPUA/MWA/FBD Table 86 M2008 model 99 Key number position Feature Blank Message Transfer Speed Call (personnel: 99) Forward Conference 553-3021-210 Standard 7.00 January 2002...
  • Page 339 Pre-programmed data Page 339 of 408 M2616 model 99 Intended use: Administration (maintenance) telephone Assigned Class of Service options: MTA/LNA/FNA/GPUA/MWA/ADD//HFA/FBD Table 87 M2616 model 99 Feature number number Feature position position – – Auto Dial Message Auto Dial Transfer Auto Dial Ring Again Auto Dial Forward...

  • Page 340: Central Answering Position (Cap) Model Telephones

    Page 340 of 408 Pre-programmed data Central Answering Position (CAP) model telephones M2616 and 2216 CAP telephone model 60 Intended use: Central Answering Position telephone Assigned Class of Service options: LNA/FND/GPUA/MWA/ADD/HFD/AGN/FBD/SPV Table 88 M2616 and 2216 CAP telephone model 60 Feature number number...

  • Page 341: General Business Models

    Pre-programmed data Page 341 of 408 General business models M2000 series telephones The M2000 series telephones - M2112, M2018, M2317, M2009, and M3000 - are limited to a combined total of 128 model telephones. (In other words, there can be no more than a combined total of 128 different models for all the M2000 series telephones.) It is up to you to make sure that the model associated with the telephone you are activating is pre-defined.
  • Page 342 Page 342 of 408 Pre-programmed data Table 90 Default features available using M2317 model 20 softkeys Key number Feature position Language Privacy Release Ring Again Transfer Charge Account Calling Party Number Conference Call Park M2317 model 25 Intended use: Two-line general business telephone with message indication and display Assigned Class of Service options: FNA/GPUA/LND/MWA/ADD/FBD Table 91...
  • Page 343 Pre-programmed data Page 343 of 408 Table 92 Default features available using M2317 model 25 softkeys Key number Feature position Language Privacy Release Ring Again Transfer Charge Account Calling Party Number Conference Message Call Park Option 11C Planning and Installation Guide...
  • Page 344 Page 344 of 408 Pre-programmed data M2009 model 21 Intended use: Two-line general business telephone Assigned Class of Service options: FND/GPUA/LNA/MWA/NDD/FBD Table 93 M2009 model 21 Key number Feature position Auto Dial Auto Dial Transfer Ring Again Pick Up Call Forward Conference 553-3021-210 Standard 7.00...
  • Page 345 Pre-programmed data Page 345 of 408 M2009 model 26 Intended use: Two-line general business telephones with message indication Assigned Class of Service options: FNA/GPUA/LNA/MWA/NDD/FBD Table 94 M2009 model 26 Key number Feature position Auto Dial Message Transfer Ring Again Pick Up Call Forward Conference M2112 model 22...
  • Page 346 Page 346 of 408 Pre-programmed data Assigned Class of Service options: FND/GPUA/LNA/MWA/NDD/FBD Table 95 M2112 model 22 Feature number number Feature position position – – Ring Again Auto Dial Pick Up Auto Dial Call Forward Auto Dial Conference Transfer Speed Call M2112 model 27 Intended use: Two-line general business telephone with message indication Assigned Class of Service options: FNA/GPUA/LNA/MWA/NDD/FBD...
  • Page 347 Pre-programmed data Page 347 of 408 M2018 model 24 Intended use: Two-line general business telephone Assigned Class of Service options: FND/GPUA/LNA/MWA/NDD/FBD Table 97 M2018 model 24 Feature number number Feature position position Auto Dial Auto Dial Auto Dial Auto Dial Auto Dial Transfer Auto Dial...
  • Page 348 Page 348 of 408 Pre-programmed data M2018 model 29 Intended use: Two-line general business telephone with message indication Assigned Class of Service options: FNA/GPUA/LNA/MWA/NDD/FBD Table 98 M2018 model 29 Key number Key number Feature Feature position position Auto Dial Auto Dial Auto Dial Message Auto Dial...

  • Page 349: Analog (500/2500-Type) Telephone Models

    Pre-programmed data Page 349 of 408 Analog (500/2500-type) telephone models Note: When you are activating an analog (500-type) telephone, you must use an analog (2500-type) telephone to define the features. When you have done this, disconnect the analog (2500-type) telephone and replace it with the analog (500-type) telephone that you are activating.Analog (500/2500-type) support personnel telephone models.

  • Page 350: Hotel And Motel Models

    Page 350 of 408 Pre-programmed data Hotel and Motel models Analog 500- and 2500-type telephones Note: When you are activating a 500-type telephone, you must use a 2500-type telephone to define the features. Once you have done this, unplug the 2500-type telephone and replace it with the 500-type telephone that you are activating.
  • Page 351 Pre-programmed data Page 351 of 408 M2006 model 20 Intended use: General business telephone Assigned Class of Service options: FND/GPUA/LNA/MWA/FBD/UNR Table 102 M2006 model 20 Key number Feature position Transfer Ring Again Pick-Up Forward Conference M2006 model 21 Intended use: General business telephone with message indicator Assigned Class of Service options: FNA/GPUA/LNA/MWA/FBD/UNR Table 103 M2006 model 21...
  • Page 352 Page 352 of 408 Pre-programmed data M2006 model 22 Intended use: General business telephone with message indication and speed call Assigned Class of Service options: FNA/GPUA/LNA/MWA/FBD/UNR Table 104 M2006 model 22 Key number Feature position Message Speed Call Pick-Up Forward Conference M2006 model 23 Intended use: General business telephone...
  • Page 353 Pre-programmed data Page 353 of 408 M2006 model 24 Intended use: General business telephone with message indicator Assigned Class of Service options: FNA/GPUA/LNA/MWA/FBD/TLD Table 106 M2006 model 24 Key number Feature position Message Transfer Pick-Up Forward Conference M2006 model 25 Intended use: General business telephone with message indication and speed call Assigned Class of Service options: FNA/GPUA/LNA/MWA/FBD/TLD...
  • Page 354 Page 354 of 408 Pre-programmed data M2006 model 40 Intended use: Hotel guest room telephone without message indication Assigned Class of Service options: CCSA/MWA/FBD/CNDD/TLD/FND Table 108 M2006 model 40 Key number position Feature Hot * Hot * Hot * Hot * Hot * * These keys are Hotlines to various Hotel and Motel services, such as Room service, and the front desk.
  • Page 355 Pre-programmed data Page 355 of 408 * These keys are Hotlines to various Hotel and Motel services, such as Room service, and the front desk. You define them when you activate the telephone. M2006 model 50 Intended use: Nurses station telephone with speed call Assigned Class of Service options: FND/LNA/GPUA/MWA/FBD Table 110 M2006 model 50...
  • Page 356 Page 356 of 408 Pre-programmed data M2008 model 21 Intended use: General business telephone with message indication Assigned Class of Service options: FNA/GPUA/LNA/MWA/NDD/FBD Table 112 M2008 model 21 Key number position Feature Auto Dial Message Transfer Ring Again Pick-Up Forward Conference 553-3021-210 Standard 7.00...
  • Page 357 Pre-programmed data Page 357 of 408 M2008 model 22 Intended use: General business telephone with display Assigned Class of Service options: FND/GPUA/LNA/MWA/ADD/FBD Table 113 M2008 model 22 Key number position Feature – Auto Dial Transfer Ring Again Pick-Up Forward Conference M2008 model 23 Intended use: General business set with message indication and display Assigned Class of Service options: FNA/GPUA/LNA/MWA/ADD/FBD...
  • Page 358 Page 358 of 408 Pre-programmed data M2008 model 24 Intended use: Two-line general business telephone Assigned Class of Service options: FND/GPUA/LNA/MWA/NDD/FBD Table 115 M2008 model 24 Key number Feature position Auto Dial Transfer Ring Again Pick-Up Forward Conference 553-3021-210 Standard 7.00 January 2002...
  • Page 359 Pre-programmed data Page 359 of 408 M2008 model 25 Intended use: Two-line general business telephone with message indication Assigned Class of Service options: FNA/GPUA/LNA/MWA/NDD/FBD Table 116 M2008 model 25 Key number Feature position Auto Dial Message Transfer Pick-Up Forward Conference Option 11C Planning and Installation Guide...
  • Page 360 Page 360 of 408 Pre-programmed data M2008 model 26 Intended use: Two-line general business telephone with display Assigned Class of Service options: FND/GPUA/LNA/MWA/ADD/FBD Table 117 M2008 model 26 Key number position Feature – Transfer Ring Again Pick-Up Forward Conference M2008 model 27 Intended use: 2-line gen.
  • Page 361 Pre-programmed data Page 361 of 408 M2008 model 28 Intended use: Two-line general business telephone Assigned Class of Service options: FND/GPUA/LNA/MWA/NDD/FBD Table 119 M2008 model 28 Key number position Feature Auto Dial Auto Dial Auto Dial Auto Dial Forward Conference M2008 model 30 Intended use: Manager telephone Assigned Class of Service options: FND/GPUA/LNA/MWA/NDD/FBD...
  • Page 362 Page 362 of 408 Pre-programmed data M2008 model 31 Intended use: Manager telephone with message indication Assigned Class of Service options: FNA/GPUA/LNA/MWA/NDD/FBD Table 121 M2008 model 31 Key number position Feature Voice Call Message Speed Call (personnel: 20) Ring Again Forward Conference M2008 model 32...
  • Page 363 Pre-programmed data Page 363 of 408 M2008 model 33 Intended use: Manager telephone with display and message indication Assigned Class of Service options: FNA/GPUA/LNA/MWA/ADD/FBD Table 123 M2008 model 33 Key number position Feature Message Voice Call Speed Call (personnel: 20) Forward Conference M2008 model 40...
  • Page 364 Page 364 of 408 Pre-programmed data * These keys are Hotlines to various Hotel and Motel services, such as Room service, and the front desk. You define them when you activate the telephone. M2008 model 41 Intended use: Two-line guest room telephone with message indication Assigned Class of Service options: CCSA/MWA/FBD/FNA/CNDD/TLD Table 125 M2008 model 41...
  • Page 365 Pre-programmed data Page 365 of 408 M2008 model 50 Intended use: Nurses station telephone with speed call Assigned Class of Service options: FND/LNA/GPUA/MWA/NDD/FBD Table 126 M2008 model 50 Key number Feature position Auto Dial Transfer Speed Call Ring Again Pick-Up Forward Conference Option 11C...
  • Page 366 Page 366 of 408 Pre-programmed data M2008 model 51 Intended use: Nurses station telephone with message and speed call Assigned Class of Service options: FNA/LNA/GPUA/MWA/NDD/FBD Table 127 M2008 model 51 Key number position Feature Auto Dial Message Speed Call Ring Again Pick-Up Forward Conference...
  • Page 367 Pre-programmed data Page 367 of 408 M2008 model 52 Intended use: Nurses station telephone with speed call and display Assigned Class of Service options: FND/LNA/GPUA/MWA/ADD/FBD Table 128 M2008 model 52 Key number Feature position – Auto Dial Speed Call Ring Again Pick-Up Forward Conference...
  • Page 368 Page 368 of 408 Pre-programmed data M2008 model 53 Intended use: Nurses station set with message, speed call and display Assigned Class of Service options: FNA/LNA/GPUA/MWA/ADD/FBD Table 129 M2008 model 53 Key number position Feature – Message Speed Call Ring Again Pick-Up Forward Conference...
  • Page 369 Pre-programmed data Page 369 of 408 M2008 model 60 Intended use: Message center telephone Assigned Class of Service options: FND/GPUA/LNA/MWA/NDD/FBD Table 130 M2008 model 60 Key number position Feature Message Cancellation Message Indication Speed Call (personnel: 20) Ring Again Forward Conference M2008 model 61 Intended use: Message center telephone with display...
  • Page 370 Page 370 of 408 Pre-programmed data M2216 model 20 Intended use: ACD agent with display Assigned Class of Service options: LNA/FND/GPUA/MWA/ADD/FBD Table 132 M2216 model 20 Key number Key number Feature Feature position position Auto Dial Auto Dial Transfer Auto Dial Speed Call Auto Dial Forward...
  • Page 371 Pre-programmed data Page 371 of 408 M2216 model 30 Intended use: ACD supervisor with display Assigned Class of Service options: LNA/FND/GPUA/MWA/ADD/FBD Table 133 M2216 model 30 Key number Key number Feature Feature position position Auto Dial – Auto Dial Transfer Auto Dial Speed Call Auto Dial...
  • Page 372 Page 372 of 408 Pre-programmed data M2616 model 20 Intended use: Secretary telephone with display Assigned Class of Service options: LNA/FND/GPUA/MWA/ADD/HFA/FBD Table 134 M2616 model 20 Key number Key number Feature Feature position position Auto Dial – Auto Dial Speed Call (personnel: 20) Auto Dial Transfer Auto Dial...
  • Page 373 Pre-programmed data Page 373 of 408 Table 135 M2616 model 21 Key number Key number Feature Feature position position Auto Dial – Auto Dial Message Auto Dial Ring Again Auto Dial Speed Call (personnel: 20) Auto Dial Forward Auto Dial Conference Auto Dial Transfer...
  • Page 374 Page 374 of 408 Pre-programmed data M2616 model 22 Intended use: Advanced business telephone Assigned Class of Service options: LNA/FND/GPUA/MWA/NDD/HFA/FBD Table 136 M2616 model 22 Key number Key number Feature Feature position position – Transfer Auto Dial Speed Call Auto Dial Ring Again Auto Dial Pick-Up...
  • Page 375 Pre-programmed data Page 375 of 408 M2616 model 23 Intended use: Advanced business telephone with message indication Assigned Class of Service options: LNA/FNA/GPUA/MWA/NDD/HFA/FBD Table 137 M2616 model 23 Key number Key number Feature Feature position position – Speed Call Auto Dial Message Auto Dial Ring Again...
  • Page 376 Page 376 of 408 Pre-programmed data M2616 model 24 Intended use: Advanced business telephone with display Assigned Class of Service options: LNA/FND/GPUA/MWA/ADD/HFA/FBD Table 138 M2616 model 24 Key number Key number Feature Feature position position – – Auto Dial Speed Call Auto Dial Ring Again Auto Dial...
  • Page 377 Pre-programmed data Page 377 of 408 M2616 model 25 Intended use: Advanced business telephone with message indication and display Assigned Class of Service options: LNA/FNA/GPUA/MWA/ADD/HFA/FBD Table 139 M2616 model 25 Key number Key number Feature Feature position position – – Auto Dial Message Auto Dial...
  • Page 378 Page 378 of 408 Pre-programmed data M2616 model 30 Intended use: Manager telephone Assigned Class of Service options: LNA/FND/GPUA/MWA/NDD/HFA/FBD Table 140 M2616 model 30 Key number Key number Feature Feature position position – Transfer Auto Dial Speed Call (personnel: 20) Auto Dial Ring Again Auto Dial...
  • Page 379 Pre-programmed data Page 379 of 408 M2616 model 31 Intended use: Manager telephone with message indication Assigned Class of Service options: LNA/FNA/GPUA/MWA/NDD/HFA/FBD Table 141 M2616 model 31 Key number Key number Feature Feature position position – Speed Call (personnel: 20) Auto Dial Message Auto Dial...
  • Page 380 Page 380 of 408 Pre-programmed data M2616 model 32 Intended use: Manager telephone with display Assigned Class of Service options: LNA/FND/GPUA/MWA/ADD/HFA/FBD Table 142 M2616 model 32 Key number Key number Feature Feature position position – Auto Dial Speed Call (personnel: 20) Auto Dial Ring Again Auto Dial...
  • Page 381 Pre-programmed data Page 381 of 408 M2616 model 33 Intended use: Manager telephone with message indication and display Assigned Class of Service options: LNA/FNA/GPUA/MWA/ADD/HFA/FBD Table 143 M2616 model 33 Key number Key number Feature Feature position position – – Auto Dial Message Auto Dial Ring Again...
  • Page 382 Page 382 of 408 Pre-programmed data M2616 model 40 Intended use: Front desk console with display Assigned Class of Service options: LNA/FND/GPUA/MWA/ADD/CNDA/HFA/FBD Table 144 M2616 model 40 Key number Key number Feature Feature position position – – Hot * Speed Call (personnel: 20) Control Class of Service Ring Again Message Registration...
  • Page 383 Pre-programmed data Page 383 of 408 M2616 model 50 Intended use: Nurses station telephone Assigned Class of Service options: LNA/FND/GPUA/MWA/NDD/HFA/FBD Table 145 M2616 model 50 Key number Key number Feature Feature position position – Transfer Auto Dial Speed Call (personnel: 20) Auto Dial Ring Again Auto Dial...
  • Page 384 Page 384 of 408 Pre-programmed data M2616 model 51 Intended use: Nurses station telephone with display Assigned Class of Service options: LNA/FND/GPUA/MWA/ADD/HFA/FBD Table 146 M2616 model 51 Key number Key number Feature Feature position position – Speed Call (personnel: 20) Auto Dial –...
  • Page 385 Pre-programmed data Page 385 of 408 M2616 model 61 Intended use: Message center telephone Assigned Class of Service options: LNA/FND/GPUA/MWA/NDD/HFA/FBD Table 147 M2616 model 61 Key number Key number Feature Feature position position – Transfer Auto Dial Speed Call (personnel: 20) Auto Dial Ring Again Auto Dial...
  • Page 386 Page 386 of 408 Pre-programmed data M2616 model 62 Intended use: Message center telephone with display Assigned Class of Service options: LNA/FND/GPUA/MWA/ADD/HFA/FBD Table 148 M2616 model 62 Key number Key number Feature Feature position position – – Auto Dial Speed Call (personnel: 20) Auto Dial Ring Again Auto Dial...
  • Page 387 Page 387 of 408 Changing pre-programmed data Contents This section contains information on the following topics: General information ........388 Changing the default numbering plan .

  • Page 388: General Information

    Page 388 of 408 Changing pre-programmed data Modifying digital model telephones ......399 Printing model information .

  • Page 389: Changing The Default Numbering Plan

    Changing pre-programmed data Page 389 of 408 Changing the default numbering plan For improved performance refer to the Option 11C Survivability Guide (P0919734) for numbering plan configuration. Extensions assigned differ from the default numbering plan Compare the first digits assigned to this system with the default numbering plan as shown in the “Default numbering plan”...

  • Page 390: Determining New Extension Numbers

    Page 390 of 408 Changing pre-programmed data Select “4 INSTALLATION OPTIONS” by entering the number “4”. The character display reads: 1 DEFAULT SETS 2 NUMBERING PLAN Select “2 NUMBERING PLAN” by entering the number “2”. The character display reads: FIRST NUMBER (XXXX)? To create a new first number, enter the digits you want and press the pound key.

  • Page 391: Using The Meridian Mail Auto-Configure Feature

    Changing pre-programmed data Page 391 of 408 Add the first extension number: +4500 Add the unit number: + 12 Number assigned to card 8, unit 12 is 4624 Note: If you are using a three digit numbering plan, follow the same procedure.

  • Page 392: Removing Numbering Plan Interferences

    Page 392 of 408 Changing pre-programmed data The following procedure describes how to shift the first number in the numbering plan to a specific card slot. Procedure 56 Shift the first number in the numbering plan to a different card slot Locate the first line card.

  • Page 393: Interference With Meridian Mail Data

    Changing pre-programmed data Page 393 of 408 Interference with Meridian Mail data The Option 11 system is shipped with pre-programmed data to support a Meridian Mail card option. The pre-programmed Meridian Mail data may cause problems in the following situations: •...

  • Page 394: Interference With Call Park Extension Numbers

    Page 394 of 408 Changing pre-programmed data In LD 23, respond to the prompts as follows: LD 23 TYPE CUST ACDN XXXX “XXXX” = Value of ACD queue Repeat for each ACD queue you wish to remove. Interference with Call Park extension numbers System call park extension numbers are pre-programmed for the Central Answering Position.

  • Page 395: Interference With The Spre Code

    Changing pre-programmed data Page 395 of 408 ADAN OUT TTY X “X” = the TTY that you are removing. Interference with the SPRE code If the pre-programmed SPRE code interferes with the programming required for the Option 11 system, use LD 15 to remove it. (For some countries, the default SPRE access code is listed in “First digits”...

  • Page 396: Interference With Flexible Feature Codes

    Page 396 of 408 Changing pre-programmed data NIT1 bbbb, or X aaaa “bbbb” = the new extension number (DN) “aaaa” = the current night number (the night number is now removed). Interference with Flexible Feature Codes If the pre-programmed Flexible Feature Codes interfere with the programming required for the Option 11 system, use LD 57 to remove the data from the system.

  • Page 397: Creating, Changing, And Removing Model Telephones

    Changing pre-programmed data Page 397 of 408 CODE <CR> Return to REQ End program To remove all access codes, type in the following commands: Action request TYPE FFC FFC = Flexible feature codes CUST 0-31 Customer Number FFCT YES,(NO) FFC Confirmation tone ALL YES Remove all access codes CODE<CR>...

  • Page 398: Creating Analog Telephone Models

    Page 398 of 408 Changing pre-programmed data If you require additional assistance when creating your own model telephones and trunks, refer to the Option 11C Software guides that are shipped with every system. Creating analog telephone models The following information must be entered in LD 10 in order to create an analogue (500/2500- type) telephone model: LD 10 REQ NEW...

  • Page 399: Creating Digital Model Telephones

    Changing pre-programmed data Page 399 of 408 Creating digital model telephones When you create model telephones for digital telephones, you must program key 0 with a function that can act as a prime extension number or its equivalent. This includes telephones that are programmed to have Single Call Ringing (SCR), Multiple Call Ringing (MCR), Single Call Non-Ringing (SCN), Multiple Call Non-Ringing (MCN), and Automatic Call Distribution (ACD).

  • Page 400: Printing Model Information

    Page 400 of 408 Changing pre-programmed data For more information about LD 11 and its associated prompts and commands, refer to the Option 11C Software guides that are shipped with the system. Printing model information To print information about model telephones, use LD 20. Analog telephones LD 20 REQ PRT...

  • Page 401: Creating Model Trunks And Changing Route Access Codes

    Changing pre-programmed data Page 401 of 408 TYPE XXXX M “XXXX” = telephone type for the model you are removing (Example: 500, 2006, 2317, 2216, 3000, etc.) CUST MODL YYY “YYY” = the model number associated with the telephone type you are removing (Valid range is 1-127).

  • Page 402: Modifying Model Trunks

    Page 402 of 408 Changing pre-programmed data Group boundaries are as follows: 1-15, 16-31, 32-47, 48-63, 64-79. 80-95, 96-111, 112-127. Examples: If, for example, you define a model trunk as XUT, with a model number of 12, all models in the group 1-15 will automatically be XUT models. If you define another model trunk as an XEM, with a model number of 33, all models in the group 32-47 will automatically be XEM models.

  • Page 403: Printing Model Information

    Changing pre-programmed data Page 403 of 408 CUST MODL YYY “YYY” = the model number associated with the trunk type you are removing (Valid range is 1-127). Printing model information To print information about model trunks, load LD 20 and type in the following commands on the TTY: LD 20 REQ PRT...
  • Page 404 Page 404 of 408 Changing pre-programmed data You hear special dial tone and the prompt “TASK?” appears on the top line of the character display. If you press the asterisk, “2 CHANGE ROUTE ACCESS” appears on the second line of the character display. Select “2 CHANGE ROUTE ACCESS”...
  • Page 405 Page 405 of 408 Expansion cabinet as a power shelf for auxiliary processors Contents This section contains information on the following topics: General information ........405 Expansion cabinet used as a power shelf .
  • Page 406 Page 406 of 408 Expansion cabinet as a power shelf for auxiliary processors Install a #6 AWG (# 40 Metric Wire Gauge) ground wire from the cabinet to a ground source (the ground bus in the AC power service panel). Note: Do not connect the ground wire to the ground connection in an existing Option 11C cabinet.
  • Page 407 Expansion cabinet as a power shelf for auxiliary processors Page 407 of 408 Refer to the ACD Max documentation to complete the installation of the Max units and related cables. Connectors for the cables in the expansion cabinet are located on the panel below the cabinet's shelf.
  • Page 408 Page 408 of 408 Expansion cabinet as a power shelf for auxiliary processors 553-3021-210 Standard 7.00 January 2002...
