LMI Multi-I/O cable assembly

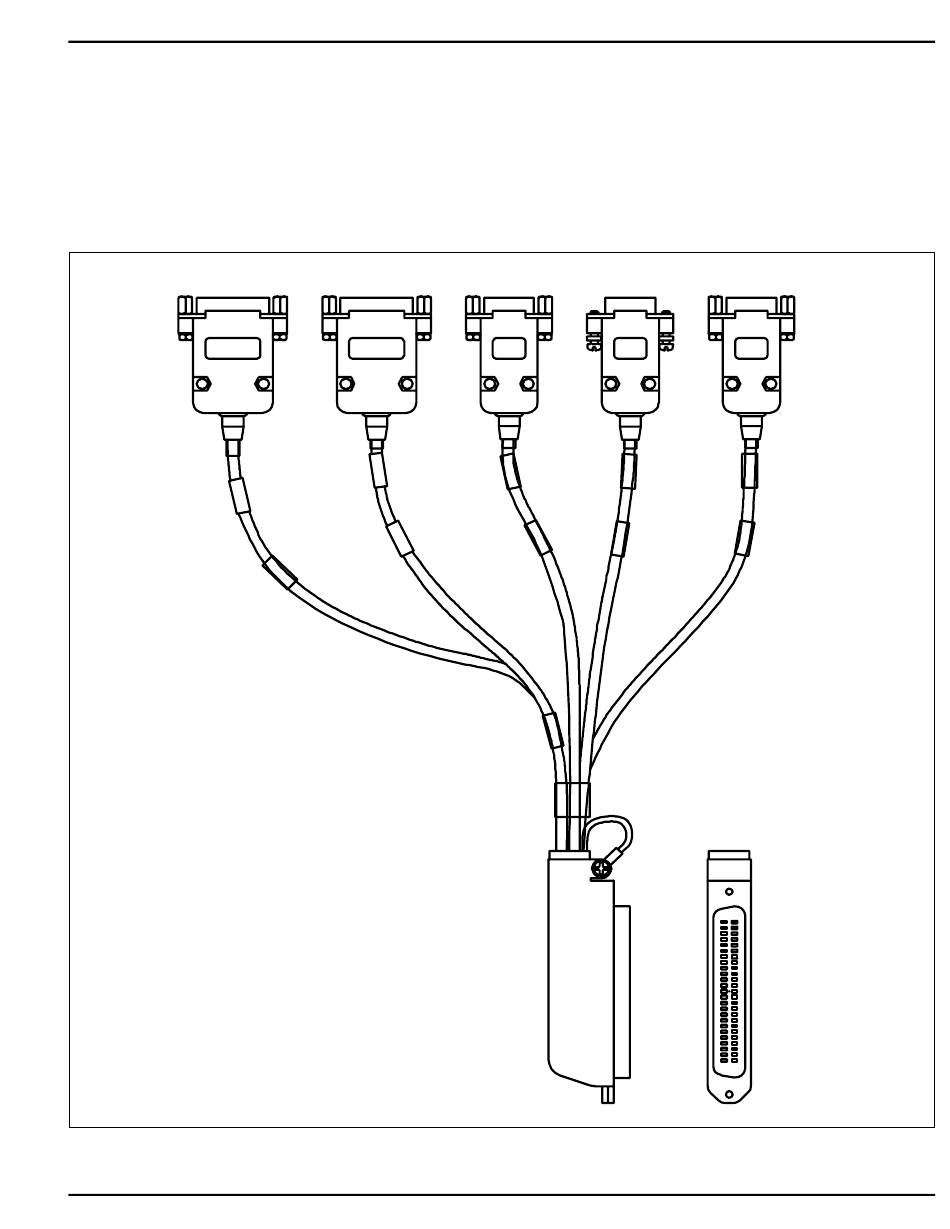

Figure 5
LMI Multi-I/O cable assembly (NT5D85)
Carrier 0
P2
The LMI Multi-I/O cable assembly (NT5D85), provides the local site
interface between the LMI and the MMI, SDI, Alarm, and the T1 carrier links.
See "LMI Multi I/O cable assembly" on page 127 for pin-out information.
Carrier 1
P3
First of two slots
for LMI
Mini-Carrier Remote Description, Installation, and Maintenance
Alarm
MMI
P5
P4
P1
Description
Page 17 of 150
SDI
P6
