cONNEcTION Of THE POWER UNIT
NOTICE

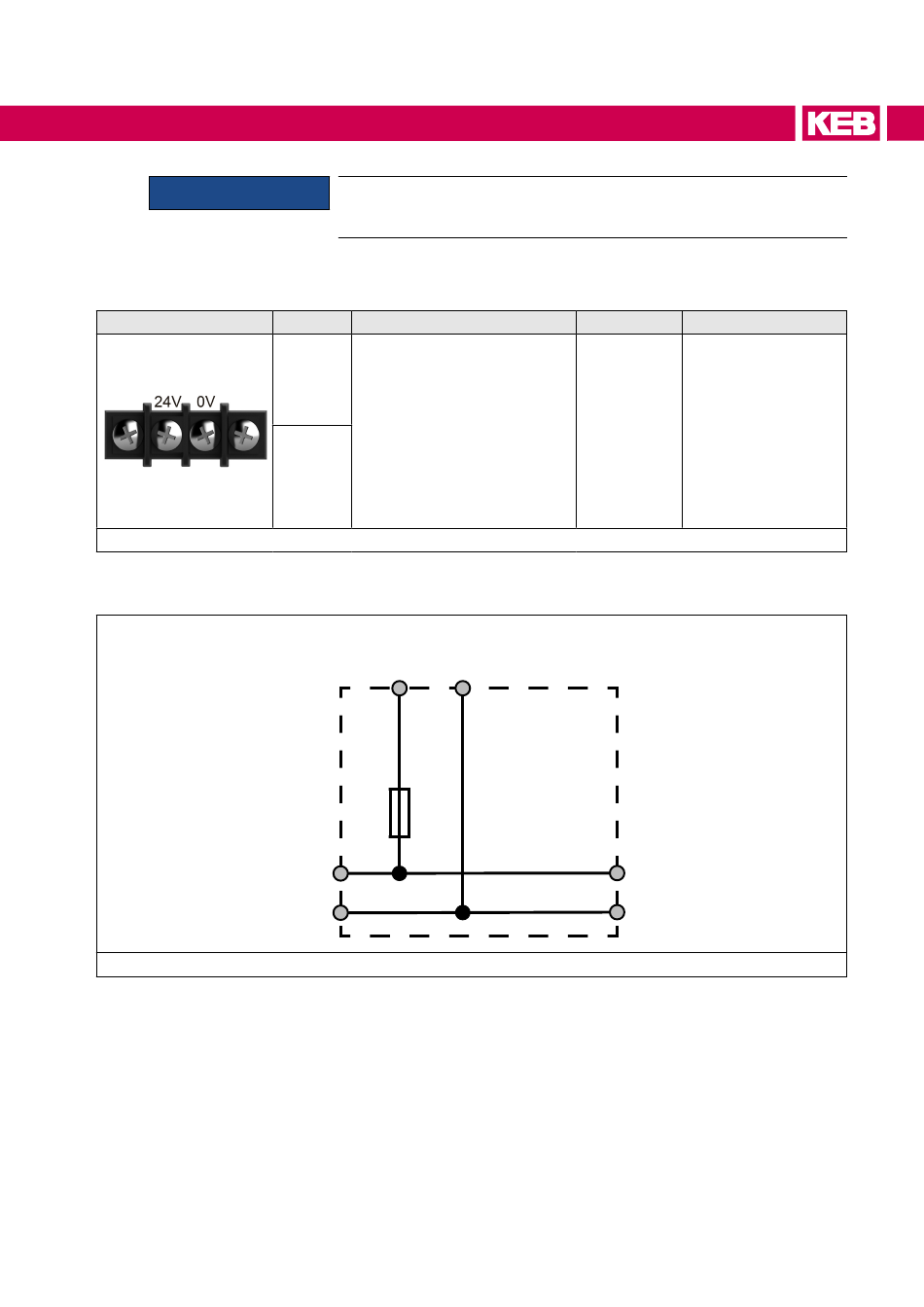

4.2.3 connection of the external 24V supply X1b

X1b
Figure 13: Connection of the external 24V supply X1B

4.2.3.1 Internal wiring with option (schematic diagram))

X1C
Figure 14: Internal wiring with option (schematic diagram))
Parallel connection of 24V power supply modules is not permitted.
Name function
24V
Connection for external 24V
supply
(optional)
0V
X1B
+24V 0V
F1
+24V
0V
connection Tightening torque
Ring cable
lug:
forked < 8 mm
1.3 Nm
12 lb inch
Cross-section:
≤ 6 mm²
+24V
X1C
0V
41
