cONSTRUcTION Of THE UNIT

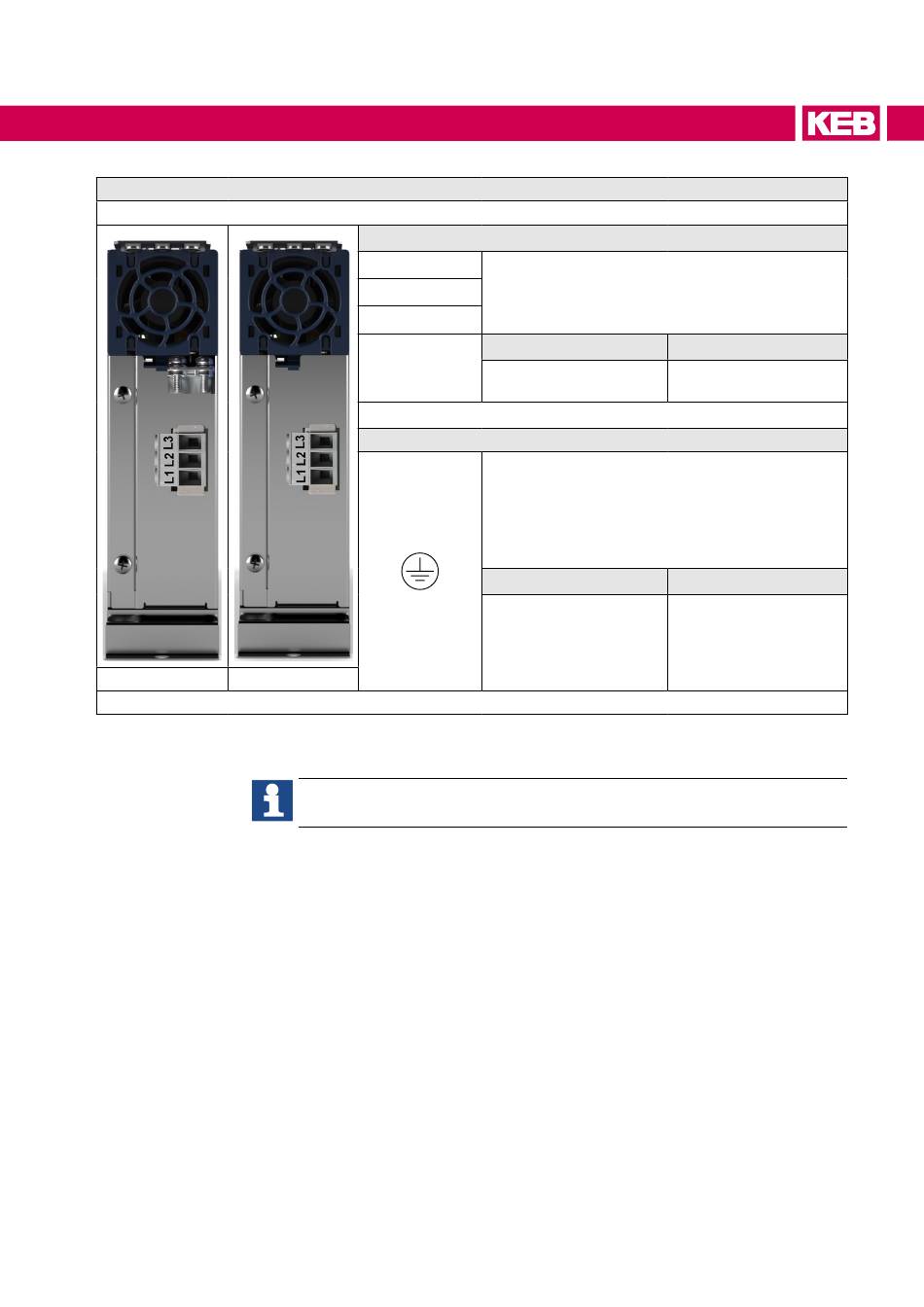

Figure 7:
View rear side of the unit
1)
Only available with material number xH6xxx-[4, 5, 6]xxx.
View of the unit top side for control type „A" View of the unit top side
View rear side of the unit
Size b/P
L1
L2
L3
1)
The terminal strips meet the requirements of
Line terminal strip X1A
Mains input 3-phase 400 V
cross-section
0.2...6 mm²
AWG 24-10
Protective earth and function earth
2 x screw terminal for ring cable lug
Ø 4 mm thereof
1 x protective earth
1 x function earth
3 x screw terminal for ring cable lug
cross-section
Screw M4 for ring cable
lug
EN
60947-7-1.
Tightening torque
0.7 Nm
6.2 lb inch
1)
Tightening torque
1.3 Nm
11.5 lb inch
