cONNEcTION Of THE cONTROL TYPE „D"

4.3.5.1 Assignment of the interfaces

reserved - do not assign !
RxD-A (RS485)
RxD-B (RS485)

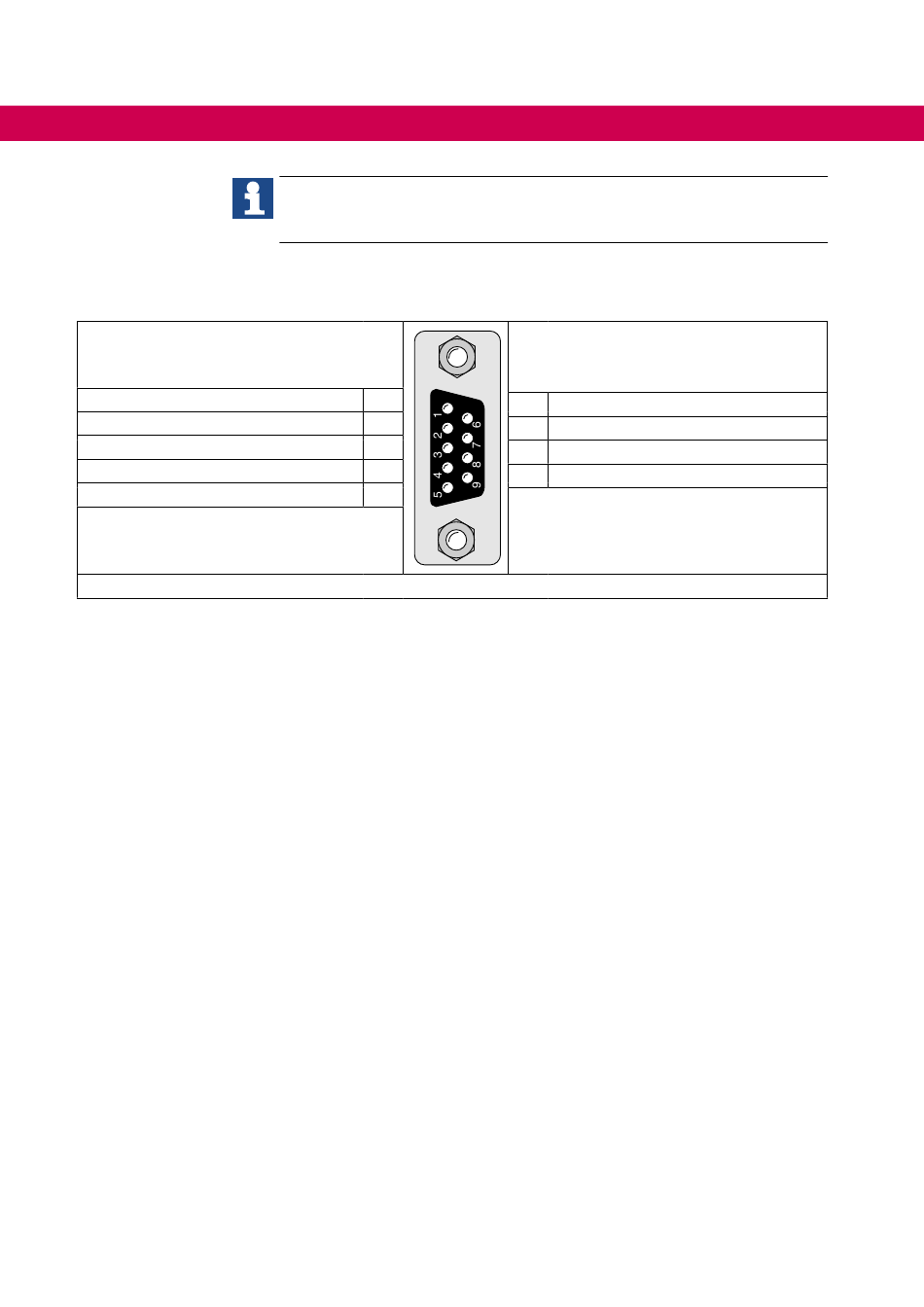

Figure 20: Assignment of the interfaces
48
cOMbIVIS 6
A current XML file is required for the operation with COMBIVIS 6. At active inter-
net connection the download can directly be done from COMBIVIS 6.
1
TxD (RS232) 2
RxD (RS232) 3
4
5
6 reserved - do not assign !
7 DGND (reference potential)
8 TxD-A (RS485)
9 TxD-B (RS485)
