EVALUATION BOARD SOFTWARE

INSTALLING THE SOFTWARE

To install the software required to evaluate the
ADAQ4003PMDZ, take the following steps:
1. Download the ADAQ400x evaluation board
2. Double-click the setup.exe file to open the software
installation window (see Figure 8).

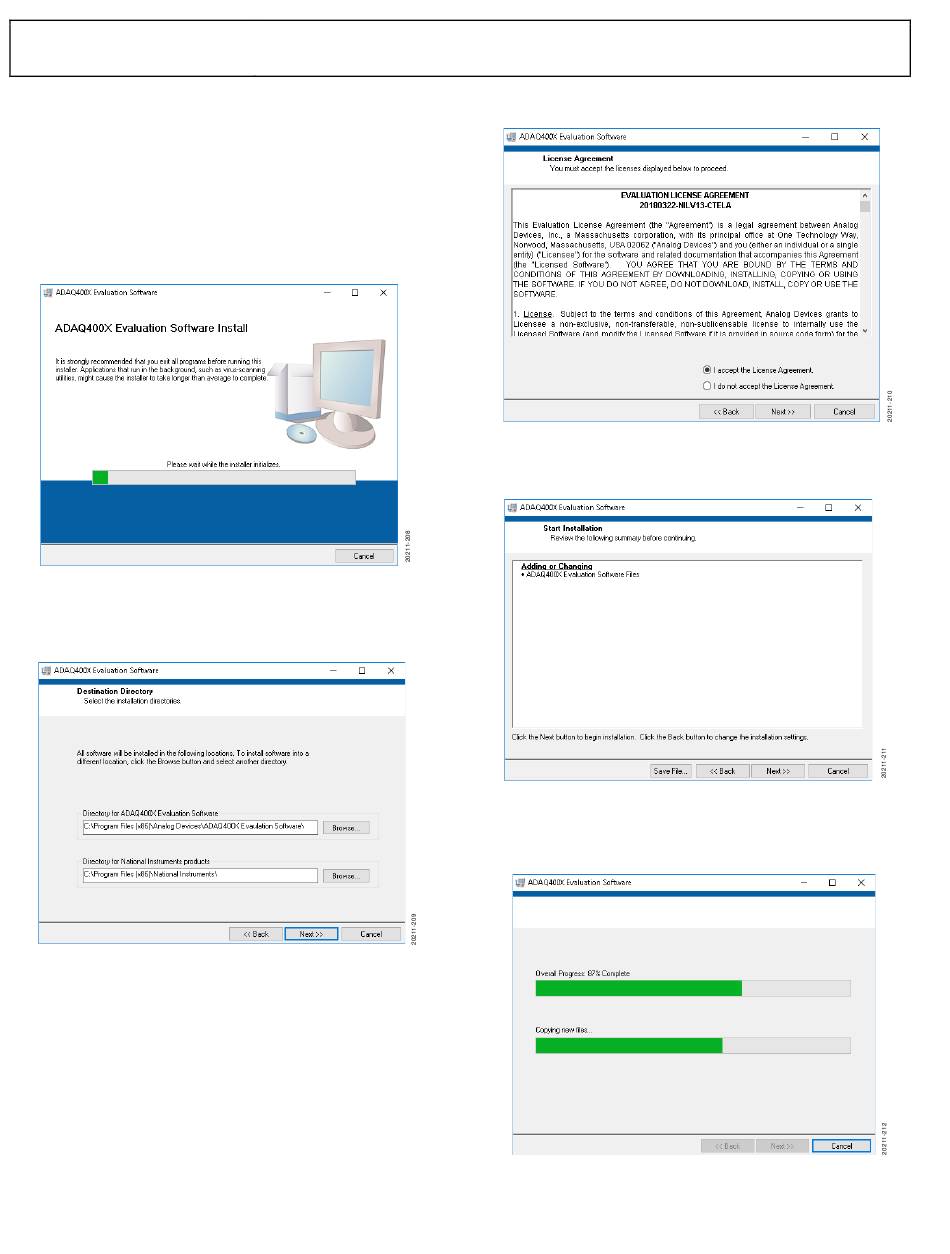

Figure 8. ADAQ400X Evaluation Software Install Window
3. Choose the folder location for installation and click
Next>>. The default folder is shown in Figure 9.
Figure 9. Destination Directory
4. Accept the ADAQ400x evaluation board software license
agreement and click Next>>.
EVAL-ADAQ4003FMCZ
EV-
software.
5.
6.
Rev. 0 | Page 8 of 31
Evaluation Board User Guide
Figure 10. License Agreement
Click Next>> again to install the software (see Figure 11).
Figure 11. Start Installation
The pop-up window shown in Figure 12 opens and
displays the installation progress bar.
Figure 12. Overall Progress Bar
