UG-1533
EVAL-ADAQ4003FMCZ
Evaluation Board User Guide
SUMMARY TAB
The Summary tab captures the window information and displays the captured information in one panel with a synopsis of the
information including key performance parameters, such as SNR and THD.

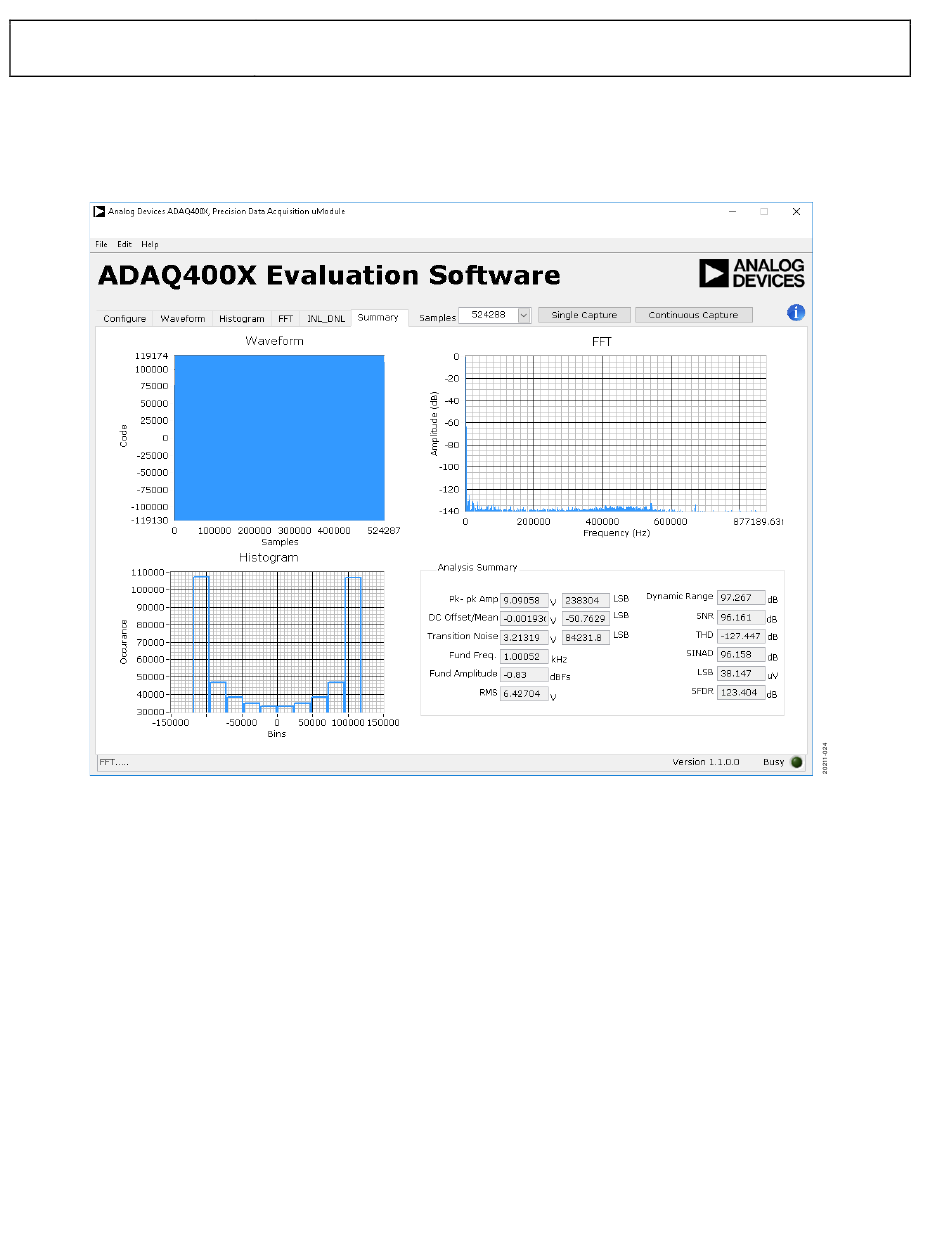

Figure 32. Summary Tab, Shows All Captured Windows
Rev. 0 | Page 18 of 31
