EVAL-ADAQ4003FMCZ

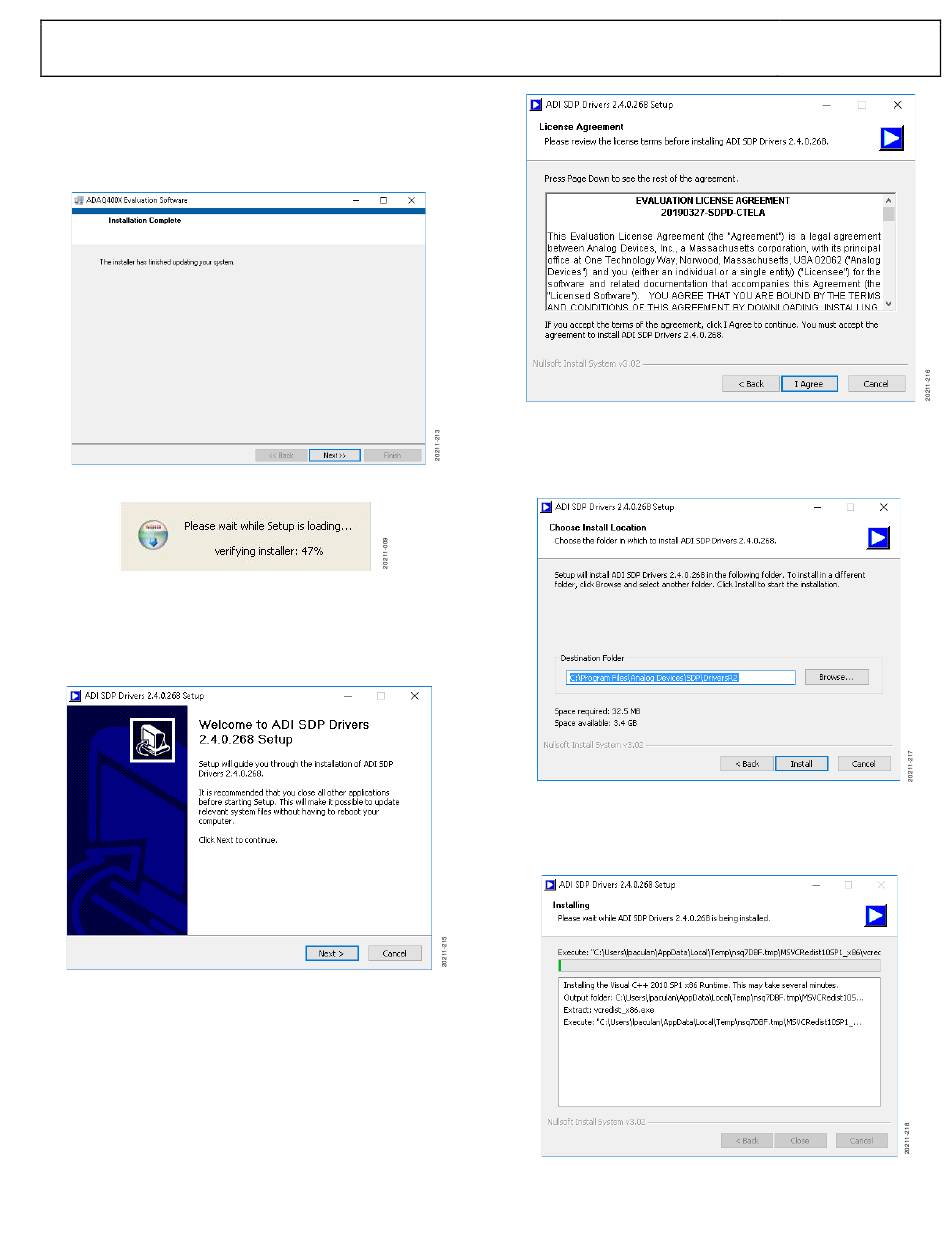

7. Click Next>> to complete the installation and to launch the
SDP-H1 driver installation (see Figure 13 and Figure 14).
These drivers must be installed for the evaluation board
to function correctly.
Figure 13. Installation Complete
Figure 14. Beginning of SDP-H1 Driver Installation
The ADI SDP Drivers 2.4.0.268 Setup Wizard opens, or
8.
the latest version (see Figure 15). Click Next> to install the
ADI SDP drivers.
Figure 15. ADI SDP Drivers Setup Wizard
Installing the ADI SDP Drivers 2.4.0.268 Setup requires
9.
the user to accept the license agreement that appears in
Figure 16. Read the agreement and then click I Agree to
proceed.
Evaluation Board User Guide
Rev. 0 | Page 9 of 31
Figure 16. ADI SDP Drivers 2.4.0.268 Setup License Agreement
10. Choose the installation location and click Install. The
default folder is shown in Figure 17.
Figure 17. Choose Install Location Window
11. The installation then begins, and a progress bar displays
(see Figure 18).
Figure 18. Installing Bar
UG-1533
