Dimensions

⚫ 48mm(1.88") (W) x110mm(4.33") (D) x155mm(6.1") (H)
1.2.19

System I/O Outlets

⚫ Four 9-pin D-Sub male connectors, COM1~COM4.
⚫ One HDMI.
⚫ Two 10/100/1000 Base-T RJ-45 with 1.5KV magnetic isolated protection.
⚫ Four USB 3.0 connectors.
⚫ One DC Power Input with terminal block.
⚫ Three Antenna holes.
1.2.20

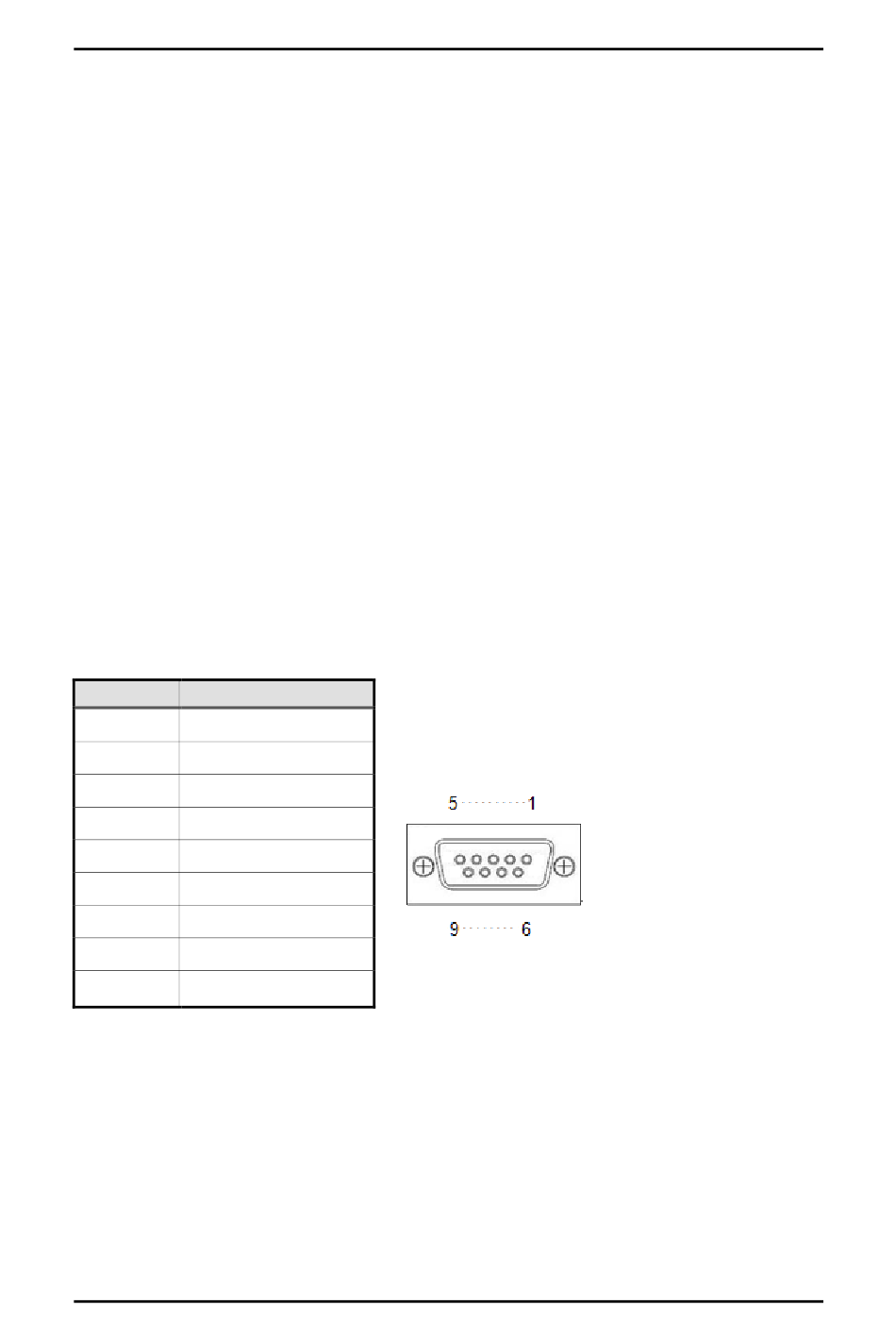

DIO

⚫
One DB9 female connector supports 8 bits TTL level programmable digital
input/output
⚫
The voltage of TTL is 5V
⚫ The programming is as follow:
I/O sink current is 8~10mA
-
Input/Output can be programmed
-
Pin
1
2
3
4
5
6
7
8
9
6
Signal
DIO0
DIO1
DIO2
DIO3
DIO4
DIO5
DIO6
DIO7
GND
